Description

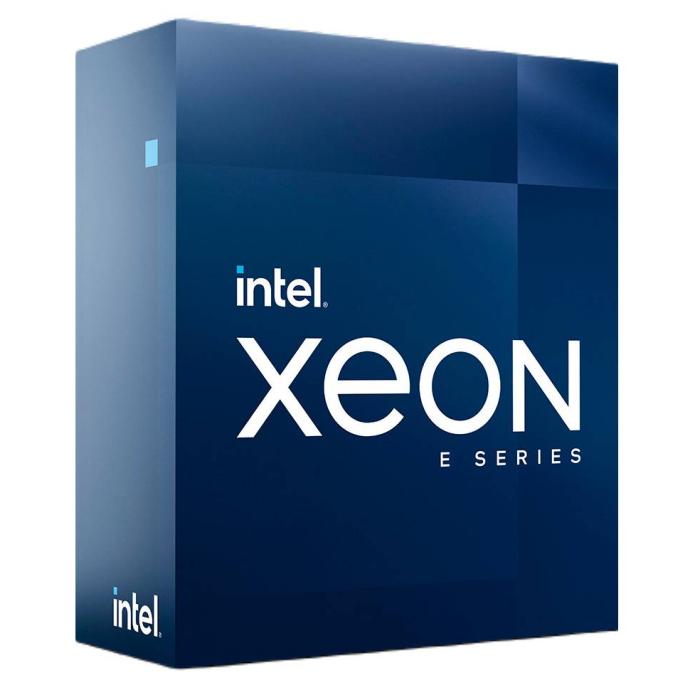

Intel Xeon E-2414 processor in retail box format, with a base frequency of 2.6 GHz and a turbo of up to 4.5 GHz, designed for platforms with LGA 1700 socket. This model from the Raptor Lake family features four performance cores and four execution threads, along with a 12 MB cache that supports demanding workload management. Its 64-bit operating mode and system bus data transfer rate of 16 GT/s make it a balanced option for servers or workstations requiring stable performance. With a TDP of 55 W, it offers adequate thermal efficiency for professional environments without compromising processing capability.
Specifications
Processor
- Processor manufacturer: Intel
- Processor model: E-2414
- Processor base frequency: 2.6 GHz
- Processor family: Intel Xeon E
- Processor cores: 4
- Processor socket: LGA 1700
- Processor threads: 4
- System bus rate: 16 GT/s
- Processor operating modes: 64-bit
- Performance cores: 4
- Processor boost frequency: 4.5 GHz
- Processor cache: 12 MB
- Thermal Design Power (TDP): 55 W
- Stepping: B0
- Maximum number of DMI lanes: 8
- Processor codename: Raptor Lake
- Processor ARK ID: 236193
- Package type: Box
Memory
- Maximum internal memory supported by processor: 128 GB
- Memory types supported by processor: DDR5-SDRAM
- Memory channels: Dual-channel
- ECC: Yes
Graphics
- On-board graphics card: No
- Discrete graphics card: No
- On-board graphics card model: Not available
- Discrete graphics card model: Not available
Features
- Execute Disable Bit: Yes
- Idle States: Yes
- Thermal Monitoring Technologies: Yes
- Market segment: Server
- Use conditions: Server/Enterprise
- Maximum number of PCI Express lanes: 20
- PCI Express slots version: 5.0
- PCI Express configurations: 2x8+1x4, 1x16+1x4
- Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
- Scalability: 1S
- CPU configuration (max): 1
- Embedded options available: No
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): 740.17B1
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology): No
- Intel® Turbo Boost Technology: 2.0
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: Yes
- Intel® Turbo Boost Technology 2.0 frequency: 4.5 GHz
- Intel® Transactional Synchronization Extensions: No
- Intel® Total Memory Encryption: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel® OS Guard: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: No
- Intel® Boot Guard: Yes
- Mode-based Execute Control (MBE): Yes
- Intel® Optane™ DC Persistent Memory Supported: No
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Microprocessor PCIe Revision: Gen 5
- Intel® Total Memory Encryption - Multi Key: Yes
Operational conditions
- Tjunction: 100 °C
Logistics data
- Harmonized System (HS) code: 8542310001
Technical details
- Launch date: Q4'23
- Status: Launched
- Servicing status: Baseline Servicing
Other features
- Maximum internal memory: 128 GB
