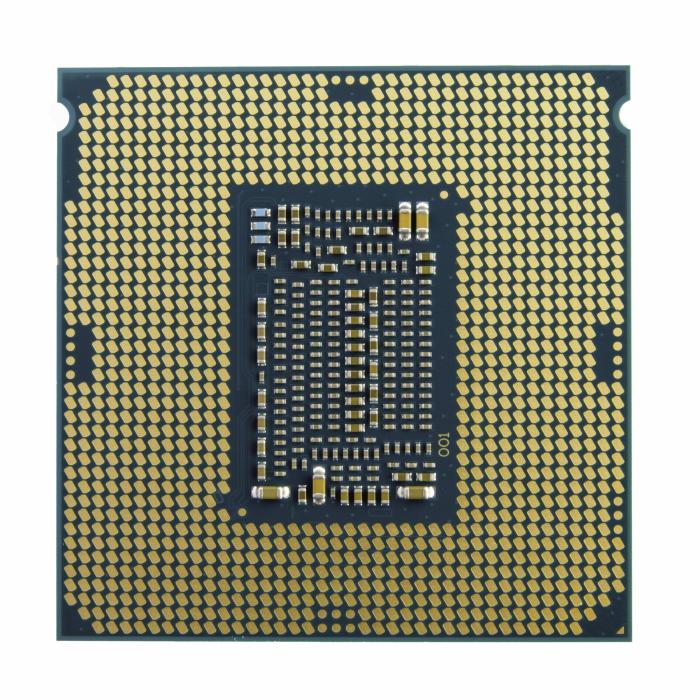

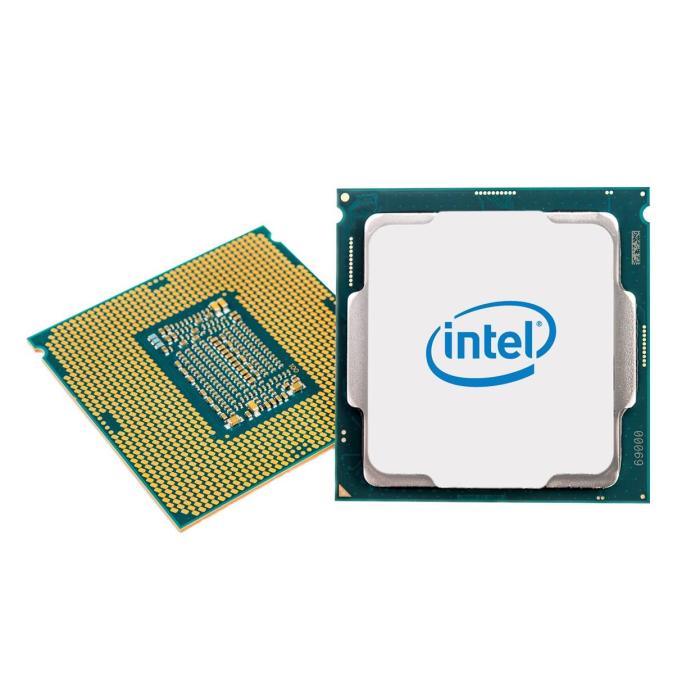

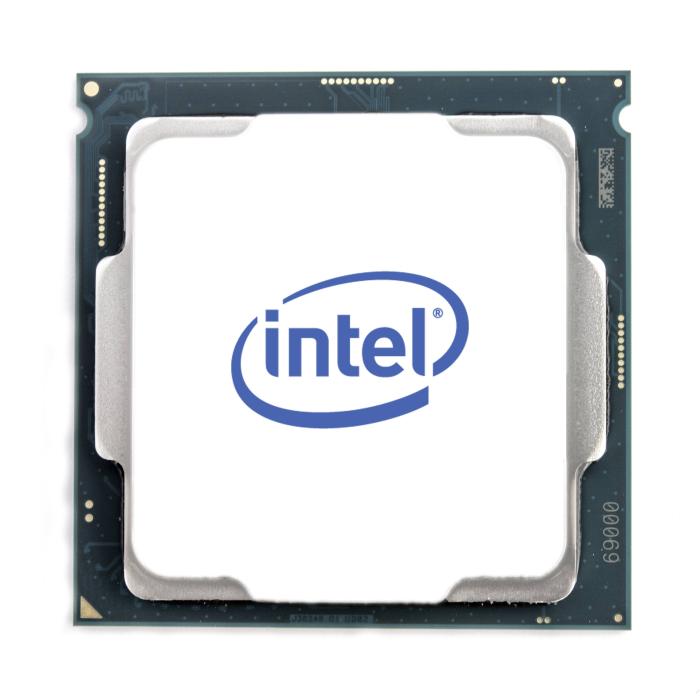

Intel Xeon E-2356G processor 3.2 GHz 12 MB Smart Cache

375.00 €

309.92 € without VAT

Amount

Brand: INTEL

SKU: 116482 PRC: 356489 EAN: 675901923873 PN: CM8070804495016

Description

Specifications

Processor

Processor manufacturer: Intel
Processor model: E-2356G
Processor base frequency: 3.2 GHz
Processor family: Intel Xeon E
Processor cores: 6
Processor socket: LGA 1200 (Socket H5)
Component for: Server/workstation
Processor lithography: 14 nm
Processor threads: 12
System bus rate: 8 GT/s
Processor operating modes: 64-bit
Processor boost frequency: 5 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 80 W
Box: No
Cooler included: No
Processor ARK ID: 212257

Memory

Maximum internal memory supported by processor: 128 GB
Memory types supported by processor: DDR4-SDRAM
Memory channels: Dual-channel
ECC: Yes

Graphics

On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel UHD Graphics P750
Maximum on-board graphics card memory: 64 GB
On-board graphics card base frequency: 350 MHz
On-board graphics card dynamic frequency (max): 1300 MHz
On-board graphics card 4K support: Yes
On-board graphics card OpenGL version: 4.5
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
Discrete graphics card model: Not available
Number of execution units: 32

Features

Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Server
Maximum number of PCI Express lanes: 20
PCI Express slots version: 4.0
PCI Express configurations: 1x16+1x4, 2x8+1x4, 1x8+3x4
Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0, AVX-512
Scalability: 1S
CPU configuration (max): 1
Export Control Classification Number (ECCN): 5A992CN3
Commodity Classification Automated Tracking System (CCATS): G167599

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: Yes
Intel® Memory Protection Extensions (Intel® MPX): Yes
Intel® Turbo Boost Technology 2.0 frequency: 5 GHz
Intel® Transactional Synchronization Extensions: No
Maximum Enclave Size Support for Intel® SGX: 0.5 GB
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel® OS Guard: Yes
Intel Clear Video Technology: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel® Boot Guard: Yes
Intel® Optane™ DC Persistent Memory Supported: No
Intel® vPro™ Platform Eligibility: Yes

Operational conditions

Tjunction: 100 °C

Technical details

Launch date: Q3'21
Status: Launched
Supported memory types: DDR4-SDRAM
Servicing status: Baseline Servicing

Logistics data

Harmonized System (HS) code: 85423119

Weight & dimensions

Processor package size: 37.5 x 37.5 mm

Other features

Maximum internal memory: 128 GB
