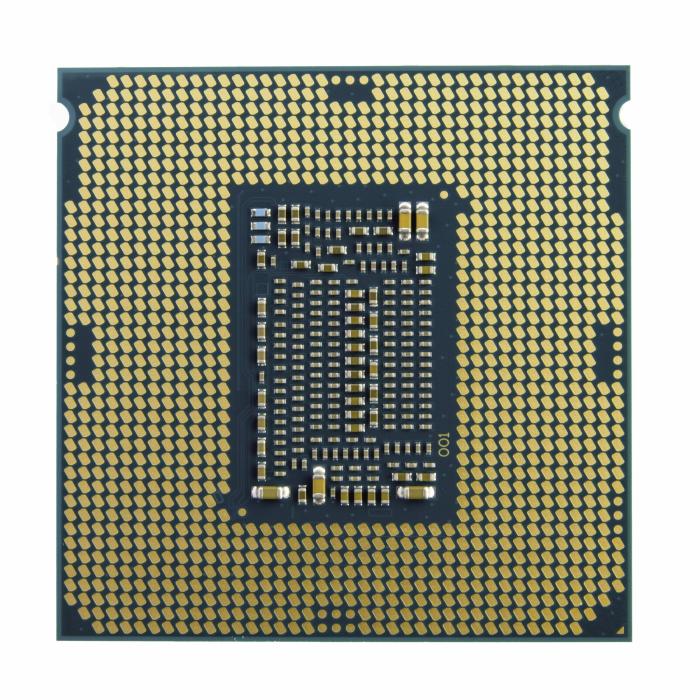

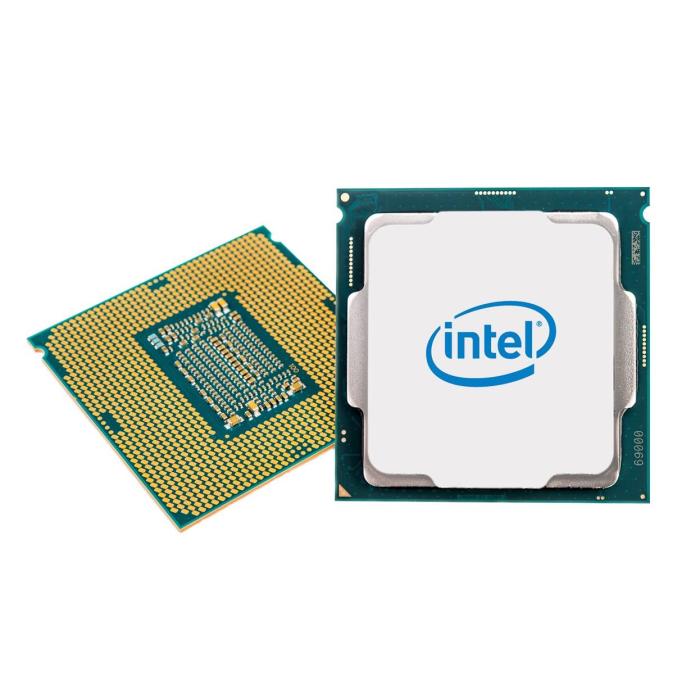

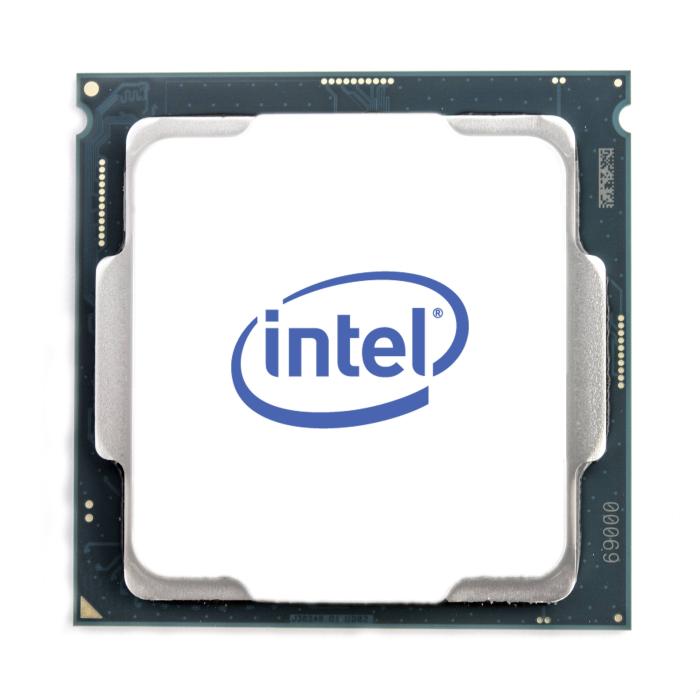

Intel Pentium Gold G6405 processor 4.1 GHz 4 MB Smart Cache Box

$67.61

$67.61 without VAT

Amount

Brand: INTEL

SKU: 116449 PRC: 310757 EAN: 5032037215497 PN: BX80701G6405

Description

Specifications

Processor

Processor manufacturer: Intel
Processor model: G6405
Processor base frequency: 4.1 GHz
Processor family: Intel® Pentium® Gold
Processor cores: 2
Processor socket: LGA 1200 (Socket H5)
Component for: PC
Processor lithography: 14 nm
Processor threads: 4
System bus rate: 8 GT/s
Processor operating modes: 64-bit
Processor cache: 4 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 58 W
Package type: Box
Memory bandwidth supported by processor (max): 41.6 GB/s
Processor codename: Comet Lake
Processor ARK ID: 201901

Memory

Maximum internal memory supported by processor: 128 GB
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 2666 MHz
Memory channels: Dual-channel
Memory bandwidth (max): 41.6 GB/s

Graphics

On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel® UHD Graphics 610
Maximum on-board graphics card memory: 64 GB
On-board graphics card base frequency: 350 MHz
On-board graphics card dynamic frequency (max): 1050 MHz
Number of displays supported (on-board graphics): 3
On-board graphics card 4K support: Yes
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card maximum resolution (DisplayPort): 4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 30 Hz
On-board graphics card ID: 0x9BA8
Discrete graphics card model: Not available

Features

Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Use conditions: PC/Client/Tablet
Maximum number of PCI Express lanes: 16
PCI Express slots version: 3.0
PCI Express configurations: 1x16, 2x8, 1x8+2x4
Supported instruction sets: SSE4.1, SSE4.2
Scalability: 1S
CPU configuration (max): 1
Embedded options available: No
Thermal solution specification: PCG 2015C
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Identity Protection Technology (Intel® IPT): Yes
Intel® Turbo Boost Technology: No
Intel® Quick Sync Video Technology: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: No
Intel® Thermal Velocity Boost: No
Intel® Transactional Synchronization Extensions: No
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel Stable Image Platform Program (SIPP): No
Intel® OS Guard: Yes
Intel Clear Video Technology: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Turbo Boost Max Technology 3.0: No
Intel® Optane™ Memory Ready: Yes
Intel® Boot Guard: Yes
Intel® vPro™ Platform Eligibility: No

Operational conditions

Tjunction: 100 °C

Technical details

Launch date: Q1'21
Status: Launched
Supported memory types: DDR4-SDRAM

Logistics data

Harmonized System (HS) code: 85423119

Weight & dimensions

Processor package size: 37.5 x 37.5 mm

Other features

Maximum internal memory: 128 GB
