Description

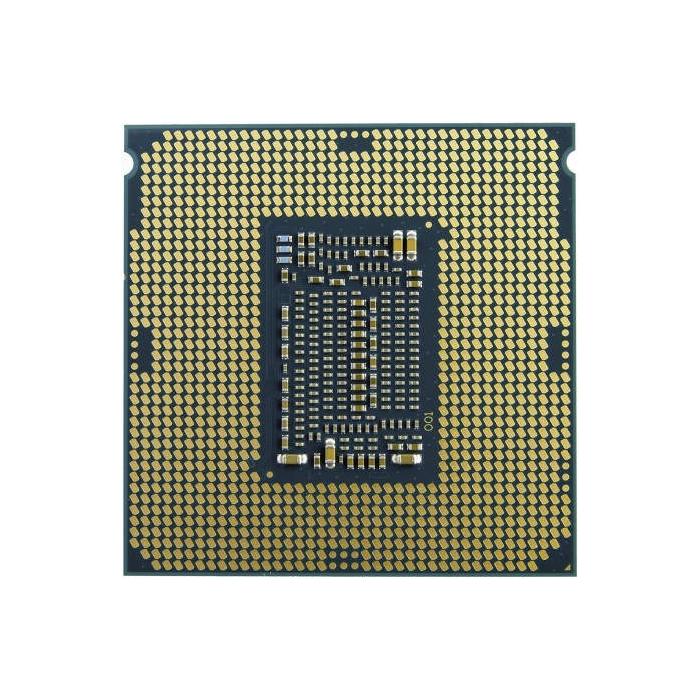

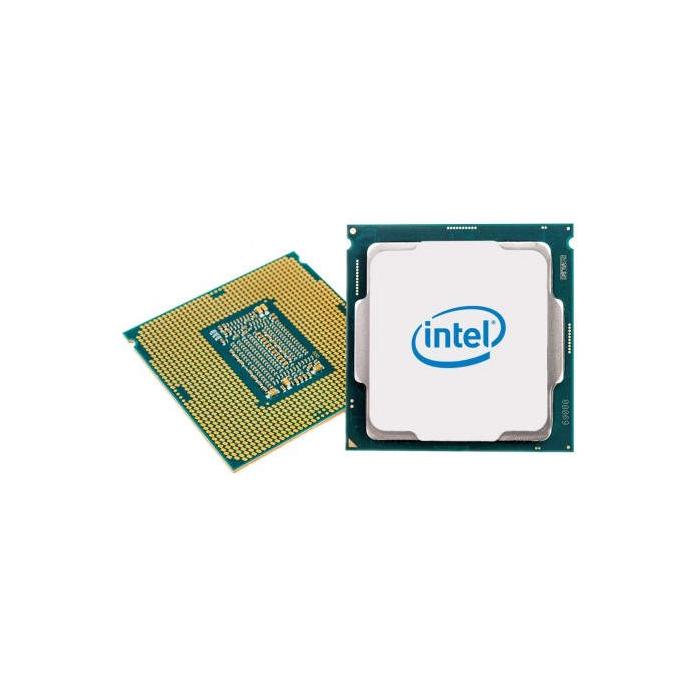

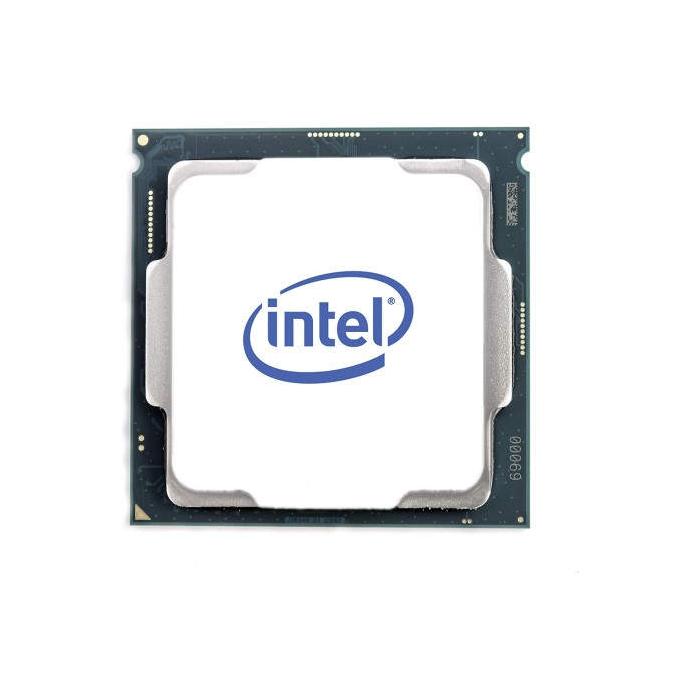

Choose the Intel Pentium Gold G6400 processor in box format, a dual-core, four-thread model with a base frequency of 4 GHz and 4 MB Smart Cache, designed for desktop systems. This 64-bit processor, based on Comet Lake architecture and manufactured with 14 nm lithography, mounts in the LGA 1200 socket and offers a maximum memory bandwidth of 41.6 GB/s. With a TDP of 58 W and a bus speed of 8 GT/s, this Intel processor is suitable for everyday tasks. Its box packaging includes the corresponding cooler, facilitating installation on a compatible motherboard.
Specifications
Processor
- Processor manufacturer: Intel
- Processor model: G6400
- Processor base frequency: 4 GHz
- Processor family: Intel® Pentium® Gold
- Processor cores: 2
- Processor socket: LGA 1200 (Socket H5)
- Component for: PC
- Processor lithography: 14 nm
- Processor threads: 4
- System bus rate: 8 GT/s
- Processor operating modes: 64-bit
- Processor cache: 4 MB
- Processor cache type: Smart Cache
- Thermal Design Power (TDP): 58 W
- Package type: Box
- Cooler included: Yes
- Memory bandwidth supported by processor (max): 41.6 GB/s
- Processor codename: Comet Lake
- Processor ARK ID: 199288
Memory
- Maximum internal memory supported by processor: 128 GB
- Memory types supported by processor: DDR4-SDRAM
- Memory clock speeds supported by processor: 2666 MHz
- Memory channels: Dual-channel
Graphics
- On-board graphics card: Yes
- Discrete graphics card: No
- On-board graphics card model: Intel® UHD Graphics 610
- Maximum on-board graphics card memory: 64 GB
- On-board graphics card base frequency: 350 MHz
- On-board graphics card dynamic frequency (max): 1050 MHz
- Number of displays supported (on-board graphics): 3
- On-board graphics card 4K support: Yes
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.5
- On-board graphics card maximum resolution (DisplayPort): 4096 x 2304 pixels
- On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 4096 x 2304 pixels
- On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
- On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
- On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
- On-board graphics card refresh rate at maximum resolution (HDMI): 30 Hz
- On-board graphics card ID: 0x9BA8
- Discrete graphics card model: Not available
Features
- Execute Disable Bit: Yes
- Idle States: Yes
- Thermal Monitoring Technologies: Yes
- Market segment: Desktop
- Maximum number of PCI Express lanes: 16
- PCI Express slots version: 3.0
- PCI Express configurations: 1x16, 2x8, 1x8+2x4
- Supported instruction sets: SSE4.1, SSE4.2
- Scalability: 1S
- CPU configuration (max): 1
- Embedded options available: No
- Thermal solution specification: PCG 2015C
- PCI Express CEM revision: 3.0
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G077159
Processor special features
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® Identity Protection Technology (Intel® IPT): Yes
- Intel® Turbo Boost Technology: No
- Intel® Quick Sync Video Technology: Yes
- Intel® InTru™ 3D Technology: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: No
- Intel® Thermal Velocity Boost: No
- Intel® Transactional Synchronization Extensions: No
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel Stable Image Platform Program (SIPP): No
- Intel® OS Guard: Yes
- Intel Clear Video Technology: Yes
- Intel Software Guard Extensions (Intel SGX): Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: No
- Intel® Optane™ Memory Ready: Yes
- Intel® Boot Guard: Yes
- Intel® vPro™ Platform Eligibility: No
Operational conditions
- Tjunction: 100 °C
Technical details
- Launch date: Q2'20
- Maximum resolution & refresh rate (DisplayPort): 4096x2304@60Hz
- Product type: Processor
- Status: Launched
- Maximum memory: 128 GB
- Supported memory types: DDR4-SDRAM
- Bus speed: 8 GT/s
- Maximum graphics card memory: 64 GB
- Processor ID: 0x9BA8
Logistics data
- Harmonized System (HS) code: 85423119
Weight & dimensions
- Processor package size: 37.5 x 37.5 mm
Other features
- Maximum internal memory: 128 GB
