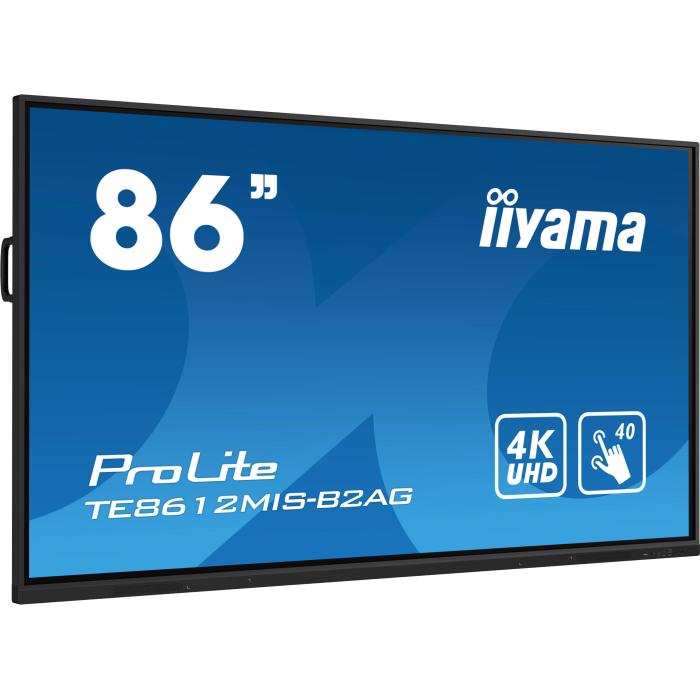

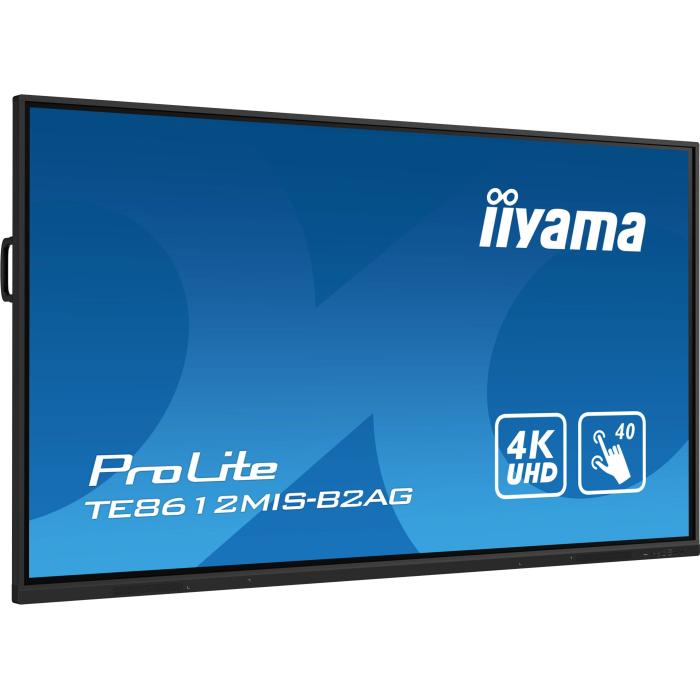

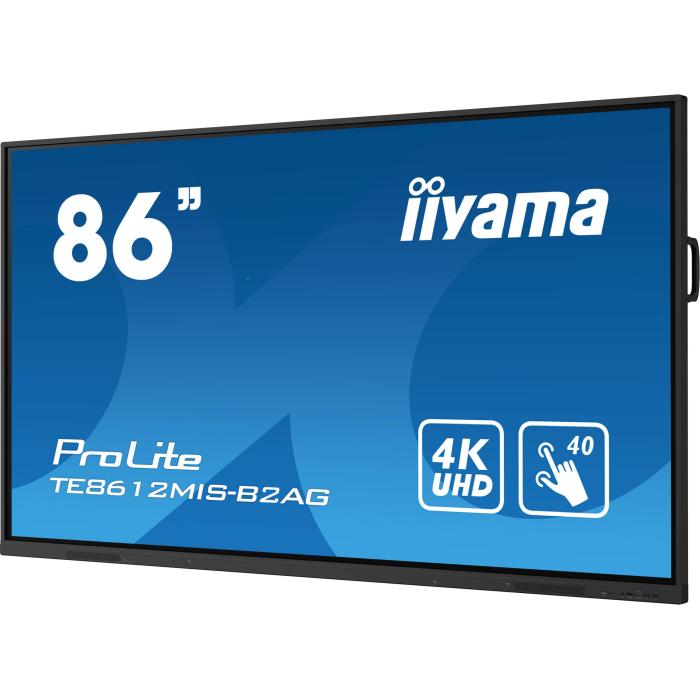

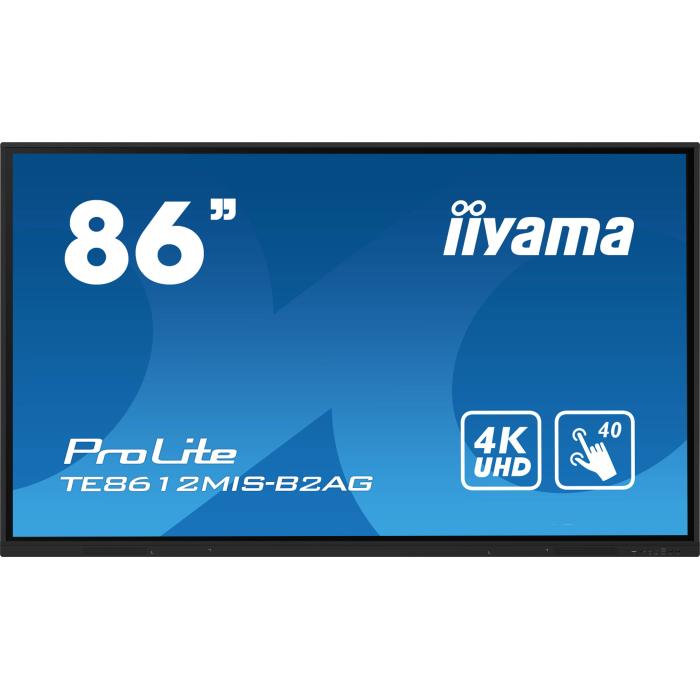

iiyama TE8612MIS-B2AG Signage Display Digital A-board 2.18 m (86'') LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
iiyama TE8612MIS-B2AG Signage Display Digital A-board 2.18 m (86") LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7.
More infoBrand: IIYAMA
1,894.51 €Stock available: 0 units.
Unavailable
SKU:
103605
PRC:
474456
EAN:
4948570122967
PN:
TE8612MIS-B2AG
Description
The IIYAMA TE8612MIS-B2AG digital A-board, in black, is designed for signage and interaction in professional environments. Its 2.18 m (86") touch LED screen offers 4K Ultra HD resolution, with 3840 x 2160 pixels, and a brightness of 400 cd/m² that maintains legibility in brightly lit spaces. The surface, with 7H hardness, supports 40 simultaneous touch points, which facilitates collaborative work on the panel. The typical contrast ratio is 1200:1 and the dynamic reaches 4000:1, with a native refresh rate of 60 Hz and 16:9 format. Its horizontal and vertical viewing angles of 178° allow the content to be seen clearly from practically any position in the room. The active display area measures 1895 x 1066 mm, and the panel reproduces 1.07 billion colours.
Specifications
Display
- Panel type: VA
- Display diagonal: 2.18 m (86")
- Display technology: LED
- Display resolution: 3840 x 2160 pixels
- Display brightness: 400 cd/m²
- HD type: 4K Ultra HD
- Touchscreen: Yes
- Touchscreen technology: Infrared
- Number of simultaneous touchpoints: 40
- Native aspect ratio: 16:9
- Response time: 8 ms
- Contrast ratio (typical): 1200:1
- Contrast ratio (dynamic): 4000:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Display number of colours: 1.07 billion colours
- Active display area (W x H): 1895 x 1066 mm
- Display diagonal (metric): 217.4 cm
- Horizontal scan range: 30 - 135 kHz
- Native refresh rate: 60 Hz
- Surface hardness: 7H

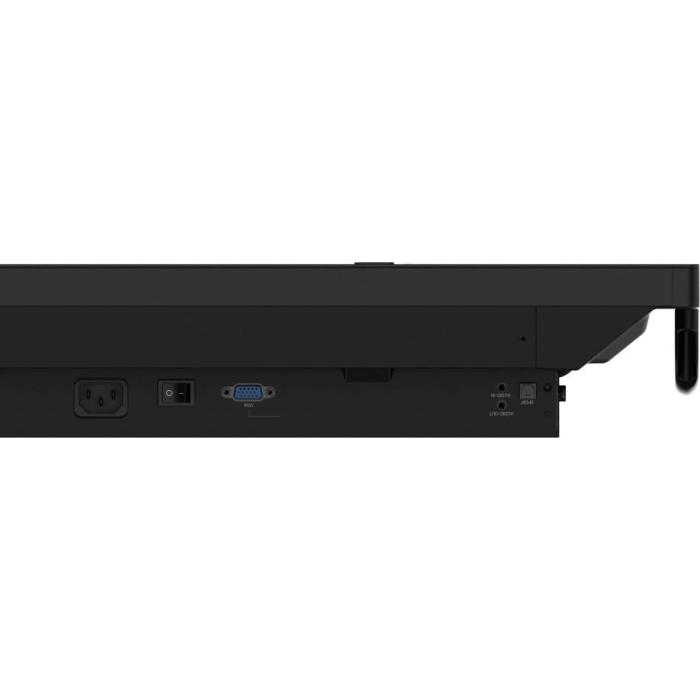

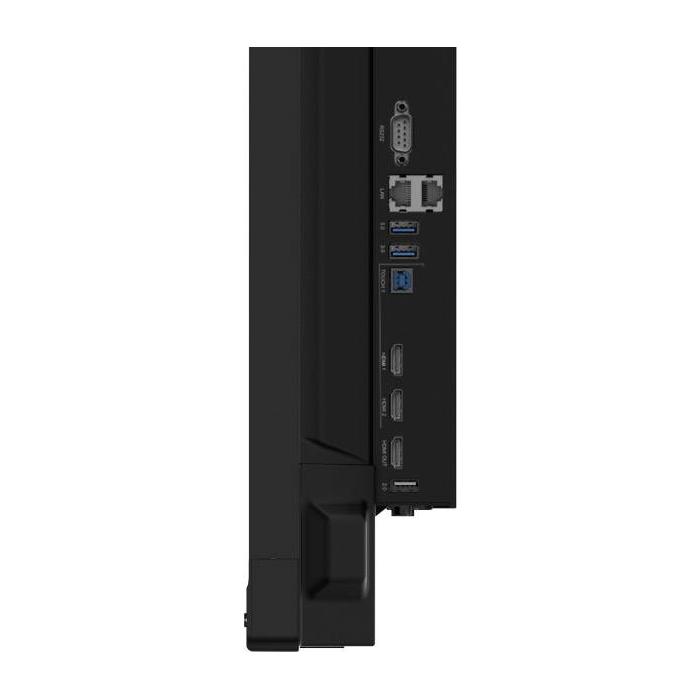

Ports & interfaces
- HDMI ports quantity: 4
- HDMI version: 2.0
- HDMI input ports quantity: 3
- HDMI output ports quantity: 1
- DVI port: No
- VGA (D-Sub) input ports: 1
- USB port: Yes
- USB ports quantity: 6
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- USB connector type: USB Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 6
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 65 W
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 3
- Wi-Fi: Yes
- Audio (L/R) in: 1
- Audio (L/R) out: 4
- RS-232C: Yes
- Remote (IR) input: 1
Audio
- Number of built-in speakers: 2
- RMS rated power: 16 W
- Built-in speaker(s): Yes
Design
- Product design: Digital A-board
- Placement supported: Indoor
- Orientation: Horizontal
- Product colour: Black

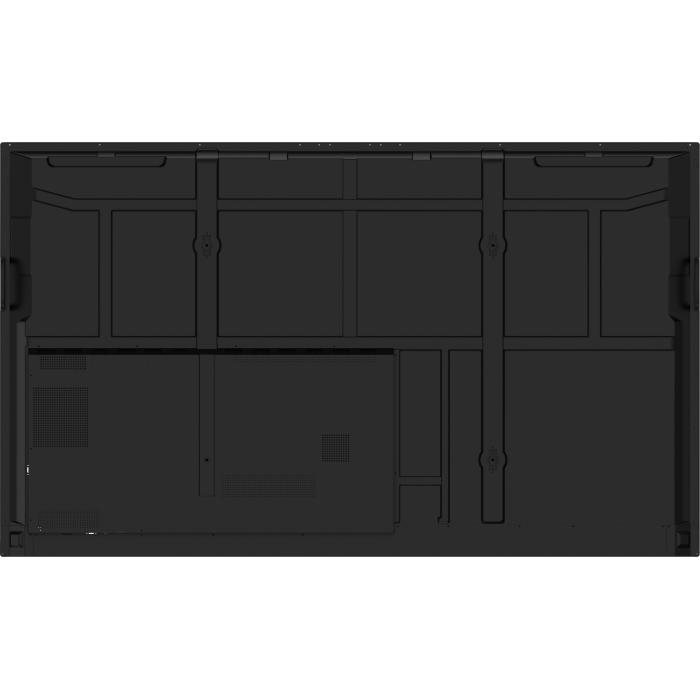

- VESA mounting: Yes
- Panel mounting interface: 800 x 600 mm
- Bezel width (bottom): 3 cm
- Bezel width (side): 1.65 cm
- Bezel width (top): 1.65 cm
Performance
- Purpose: Universal
- On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Polish, Russian
- Operating hours (hours/days): 24/7
- HDCP: Yes
- International Protection (IP) code: IP1X
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 222 W
- Power consumption (standby): 0.5 W
- Power consumption (off): 0.3 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
Computer system
- Computer system: No
- Built-in processor: Yes
- Processor manufacturer: AMD
- Internal memory: 4 GB
- On-board graphics card model: ARM Mali-G52
- Internal storage capacity: 32 GB
- Operating system installed: Android
Weight & dimensions
- Display width: 1957 mm
- Display depth: 100 mm
- Display height: 1160 mm
- Display weight: 58.6 kg
Packaging data
- Package width: 2110 mm
- Package depth: 225 mm
- Package height: 1283 mm
- Package weight: 75.9 kg
Packaging content
- Remote control included: Yes
- Batteries included: Yes

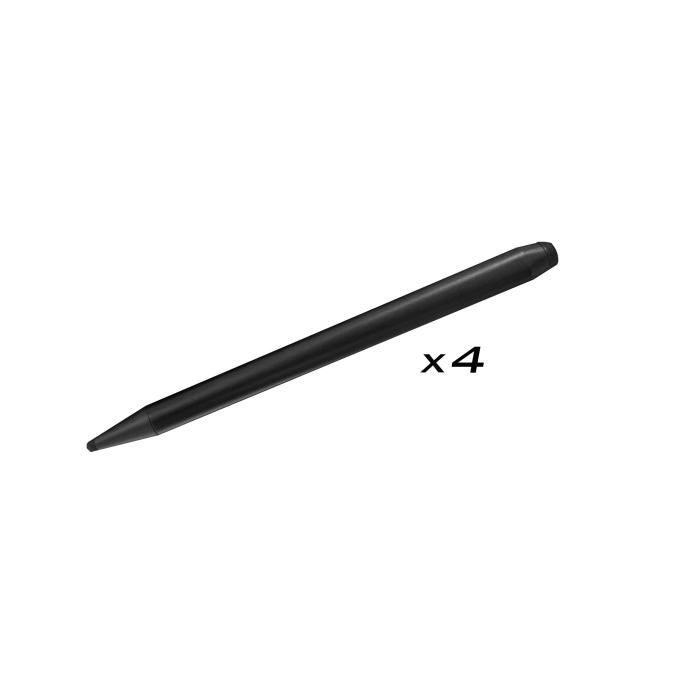

- Stylus pen: Yes
- Number of stylus pens: 4
- Cables included: HDMI, Power, USB

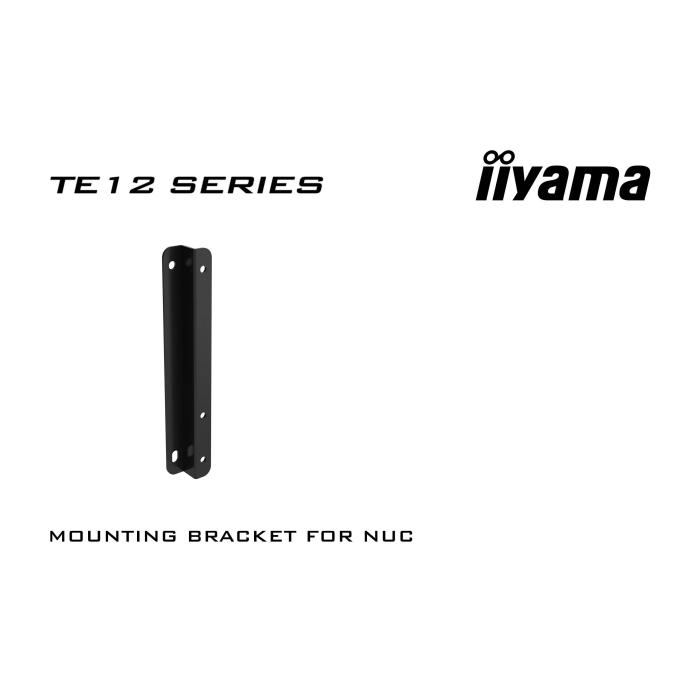

- Mounting kit: Yes
- Wi-Fi module included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
Certificates
- Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
