Description

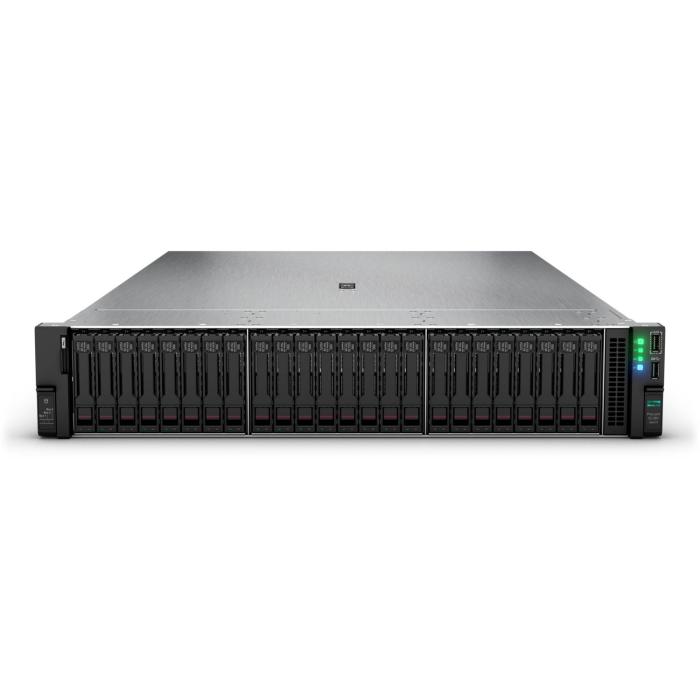

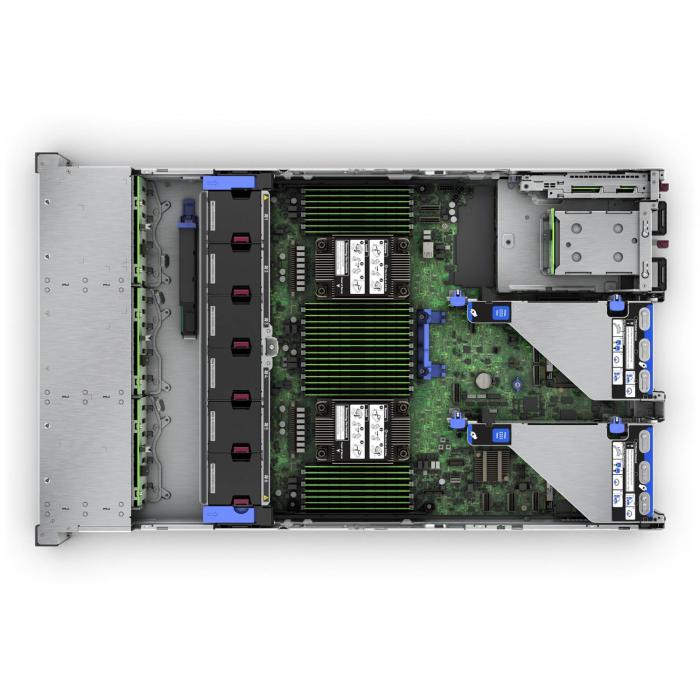

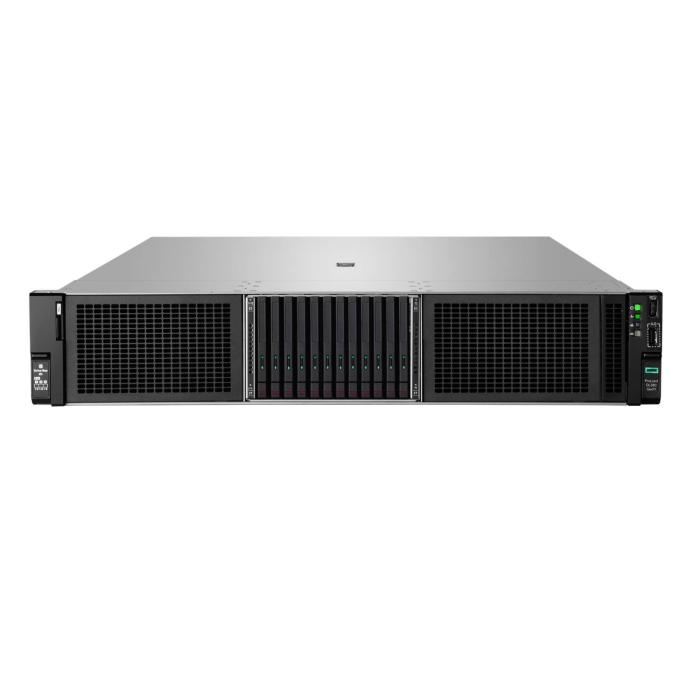

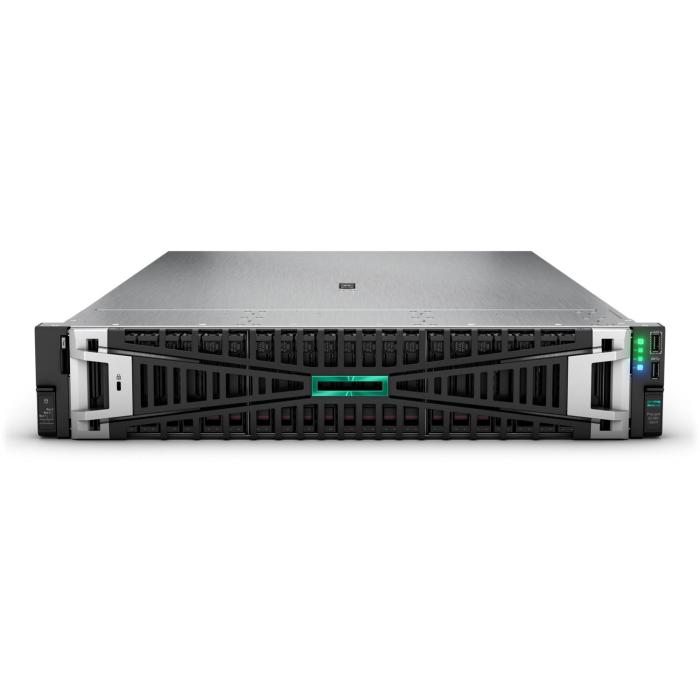

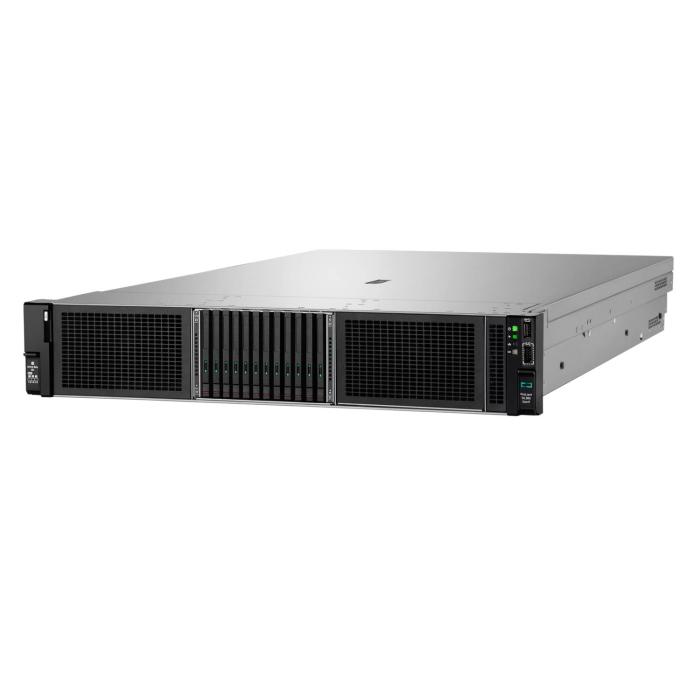

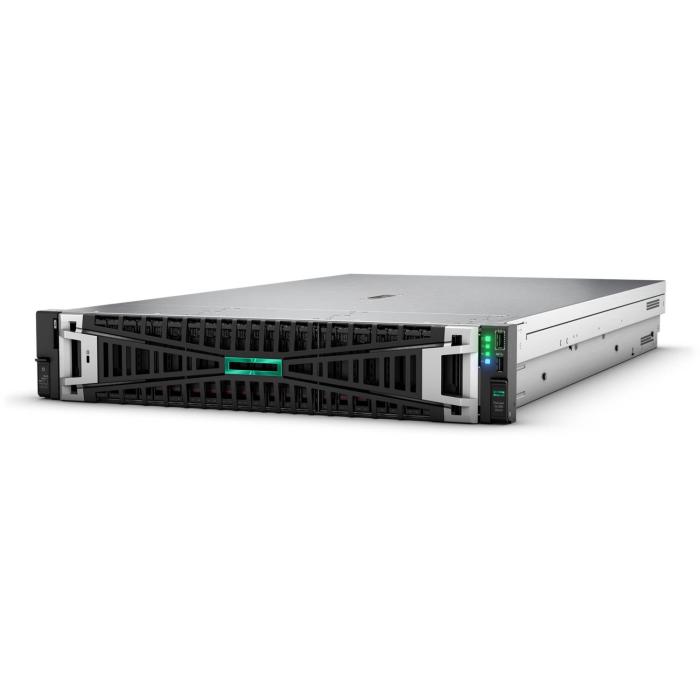

2U rack server with one Intel Xeon Gold 6430 processor, 32 cores at 2.1 GHz (turbo up to 3.4 GHz), Intel C741 chipset, and 64 GB of DDR5-SDRAM memory in a 2 x 32 GB configuration at 4800 MHz. The motherboard offers 32 DIMM slots for expansion up to 8.19 TB of RAM, while the chassis supports hot-swappable drives and an integrated RAID controller for storage management. This HPE ProLiant DL380 Gen11 includes a 1000 W power supply and comes without pre-installed drives, leaving storage capacity to your choice according to your workload requirements. Its compact, robust design is intended for data centre environments requiring scalability, performance and high availability in virtualisation or database tasks.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon® Gold
- Processor model: 6430
- Processor frequency: 2.1 GHz
- Processor boost frequency: 3.4 GHz
- Processor cores: 32
- Processor cache: 60 MB
- Motherboard chipset: Intel C741
- Number of processors installed: 1
Memory
- Internal memory: 64 GB
- Internal memory type: DDR5-SDRAM
- Memory slots: 32x DIMM
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 2 x 32 GB
- Maximum internal memory: 8.19 TB
Storage
- Maximum storage capacity: 91.2 TB
- Total storage capacity: 0 GB
- HDD interface: SATA, Serial Attached SCSI (SAS)
- Number of HDDs supported: 8
- Supported HDD sizes: 2.5"
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- Hot-Plug support: Yes
- Optical drive type: No
Graphics
- On-board graphics card: Yes
- Maximum graphics card memory: 16 MB
Network
- LAN controller: Broadcom 57414
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet, 25 Gigabit Ethernet

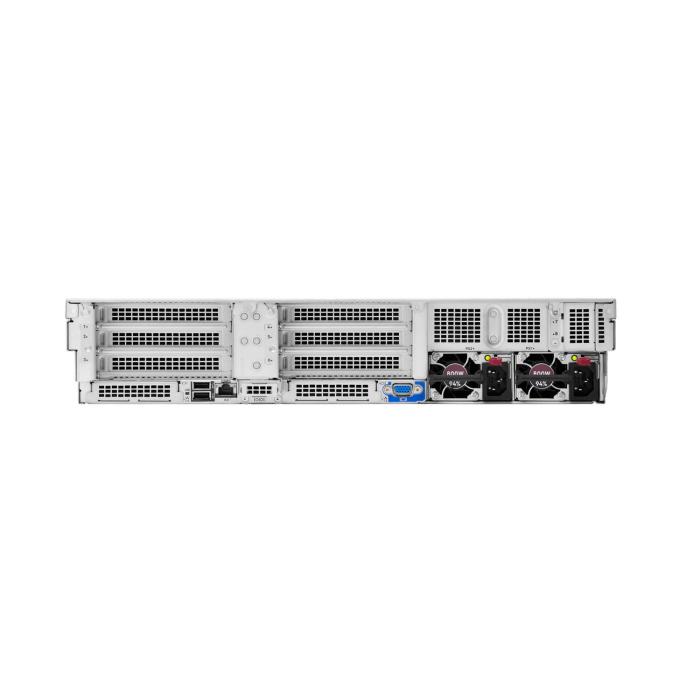

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- VGA (D-Sub) ports quantity: 1
Design
- Chassis type: Rack (2U)
- Rack mounting: Yes
Performance
- Remote administration: iLO 6 ASIC
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
- Compatible operating systems: Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle
Power
- Redundant power supply (RPS) support: Yes
- Power supply: 1000 W
- Number of redundant power supplies supported: 2
- Number of redundant power supplies installed: 1
Sustainability
- Sustainability certificates: ENERGY STAR
Weight & dimensions
- Width: 448 mm
- Depth: 727 mm
- Height: 87.5 mm
