Description

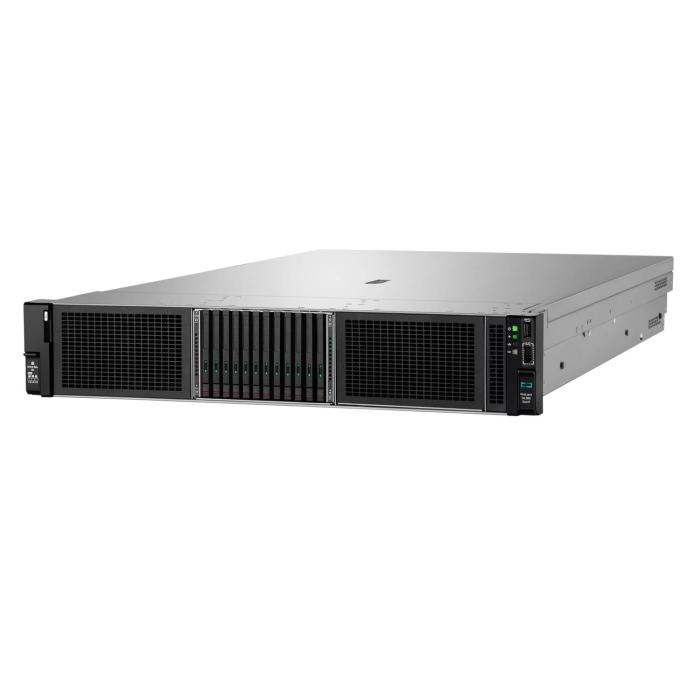

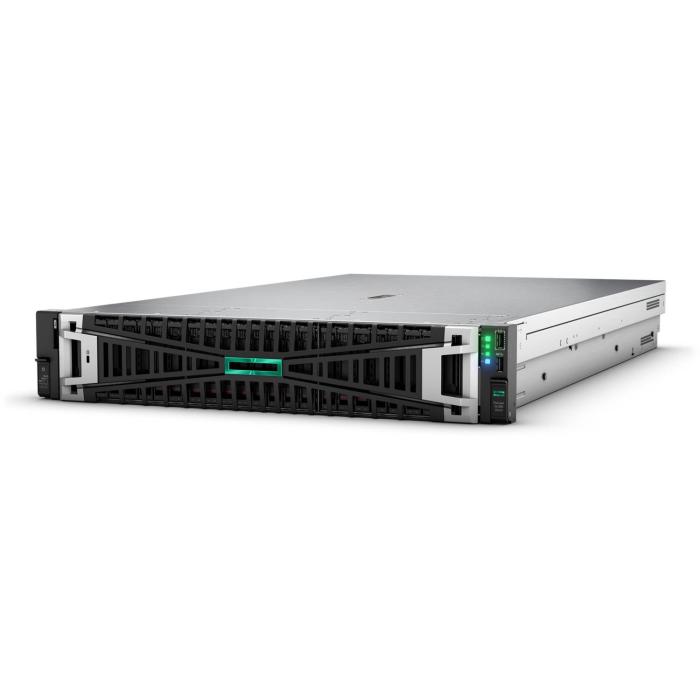

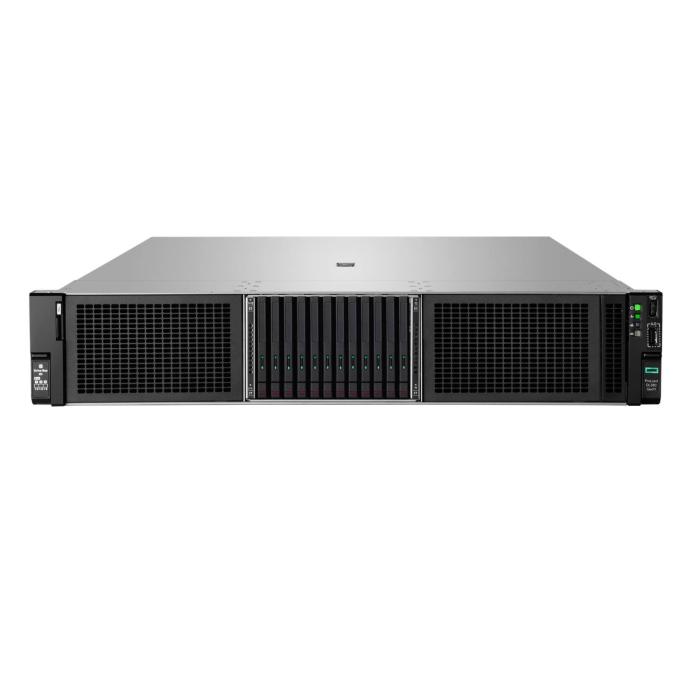

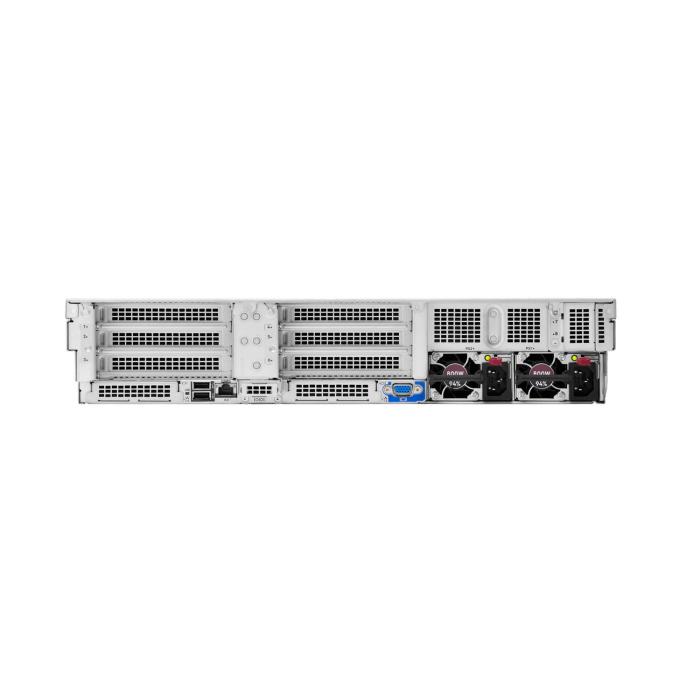

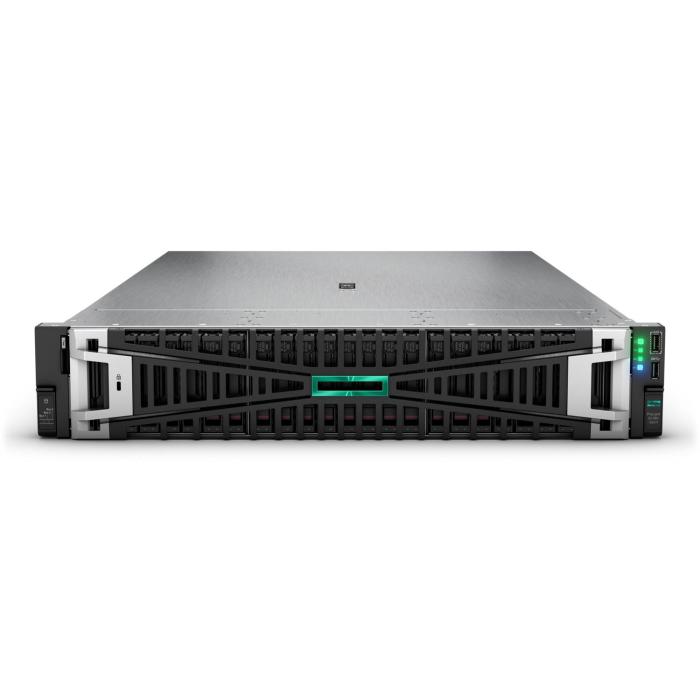

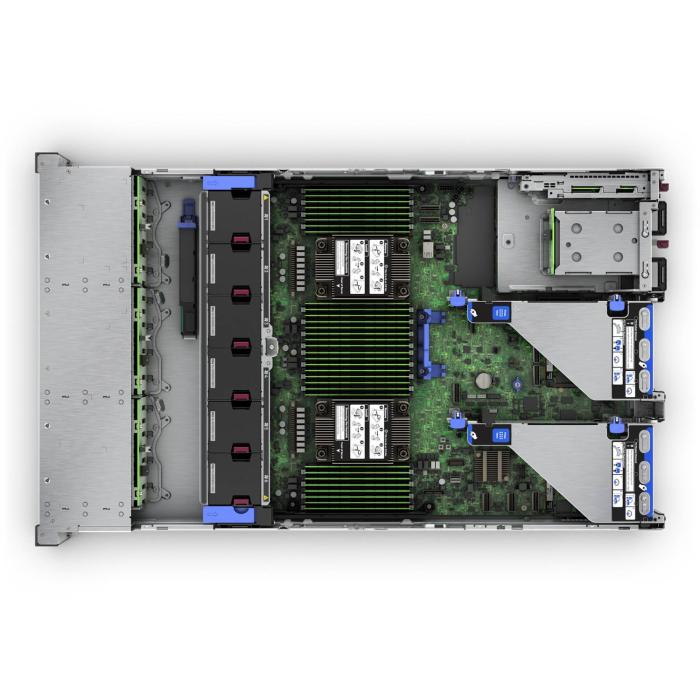

The HPE ProLiant DL380 Gen11 server in 2U rack form factor comes without preinstalled storage capacity, but includes a 16-core Intel Xeon Gold 5416S processor at 2 GHz with a turbo frequency of 4 GHz and 30 MB of cache. It features 32 GB of DDR5-SDRAM memory at 4800 MHz in a single module, expandable up to 8.19 TB thanks to its 32 DIMM slots. With the Intel C741 chipset, it supports up to two processors to scale workloads, and its bays accept SATA or SAS drives depending on your deployment needs. This model includes a 1000 W power supply to support demanding configurations in data centre environments.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon® Gold
- Processor generation: Intel Xeon Scalable 4th Gen
- Processor model: 5416S
- Processor frequency: 2 GHz
- Processor boost frequency: 4 GHz
- Processor cores: 16
- Processor cache: 30 MB
- Motherboard chipset: Intel C741
- Number of processors installed: 1
- Maximum number of SMP processors: 2
Memory
- Internal memory: 32 GB
- Internal memory type: DDR5-SDRAM
- Memory slots: 32x DIMM
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 1 x 32 GB
- Maximum internal memory: 8.19 TB
Storage
- Maximum storage capacity: 91.2 TB
- Total storage capacity: 0 GB
- HDD interface: SATA, Serial Attached SCSI (SAS)
- Number of HDDs supported: 8
- Supported HDD sizes: 2.5"
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- Hot-Plug support: Yes
- Optical drive type: No
Graphics
- On-board graphics card: Yes
- Maximum graphics card memory: 16 MB
Network
- LAN controller: Broadcom 57416
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Design
- Chassis type: Rack (2U)
- Rack mounting: Yes
Performance
- Remote administration: iLO 6 ASIC
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
- Compatible operating systems: Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle
Power
- Redundant power supply (RPS) support: Yes
- Power supply: 1000 W
- Number of redundant power supplies supported: 2
- Number of redundant power supplies installed: 1
Weight & dimensions
- Width: 448 mm
- Depth: 727 mm
- Height: 87.5 mm
