Description

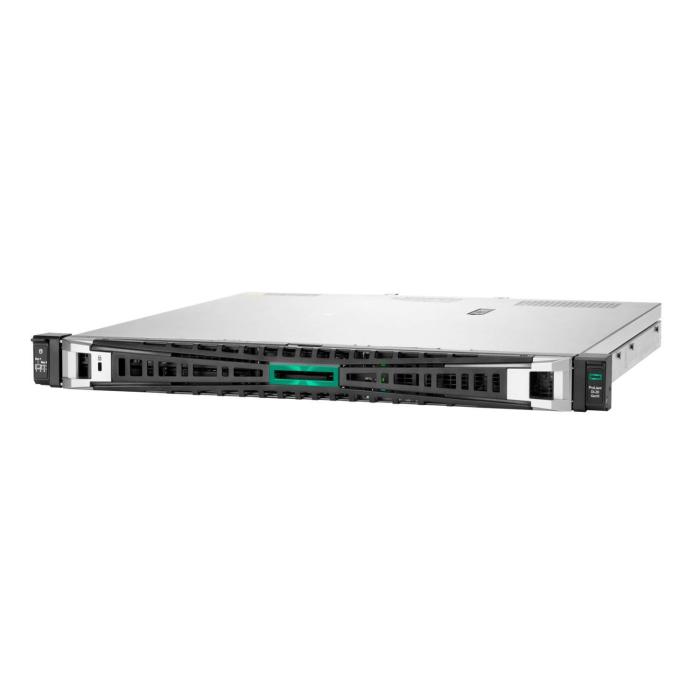

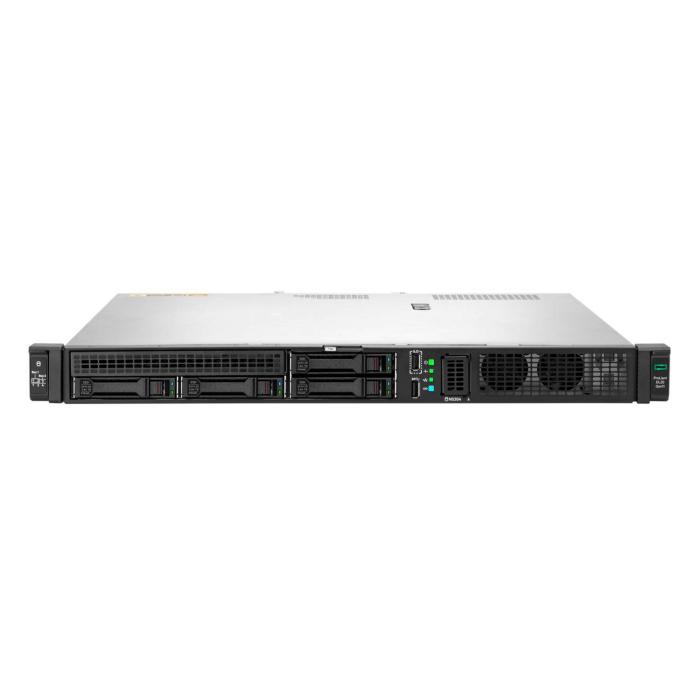

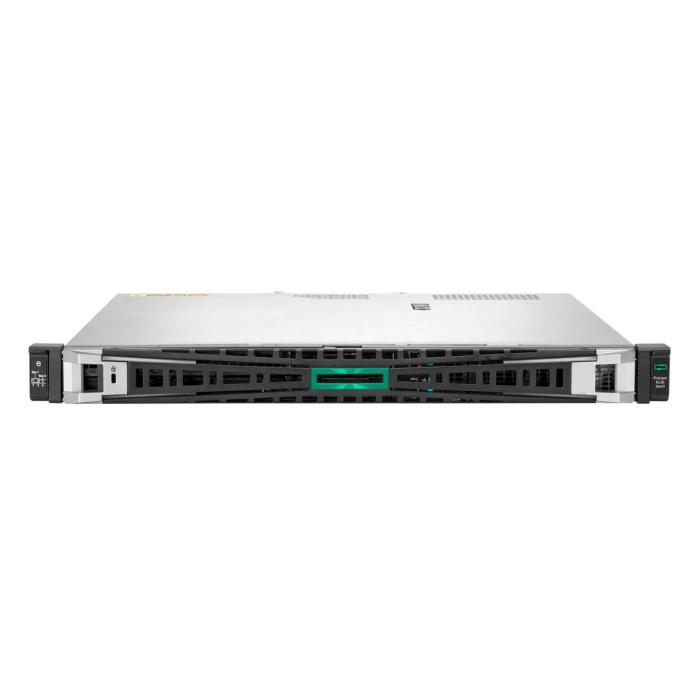

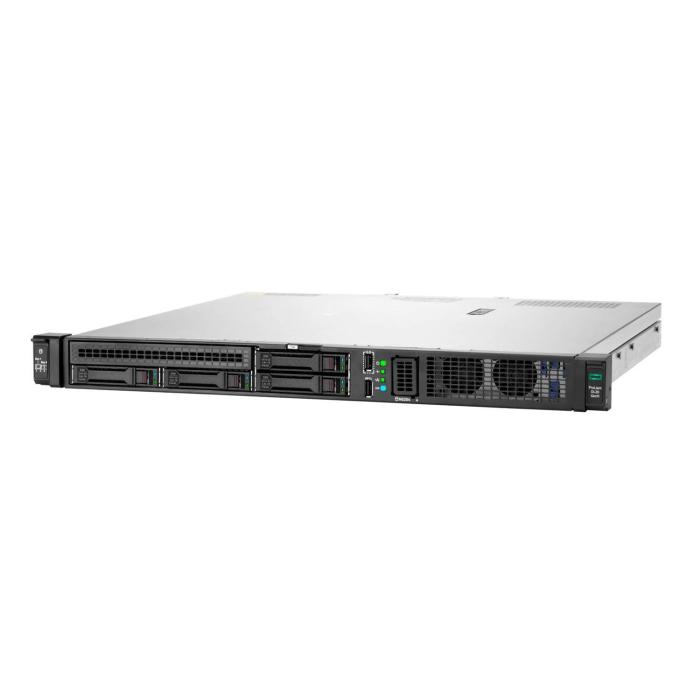

HPE ProLiant DL20 Gen11 server in 1U rack form factor, equipped with an Intel Xeon E-2434 processor with four cores at 3.4 GHz, turbo boost up to 5 GHz and 12 MB of cache. Includes 16 GB of DDR5-SDRAM memory at 4800 MHz in a single module, expandable up to 128 GB via its four DIMM slots with ECC support. Offers compatibility with 3.5-inch hard drives, hot-plug, and an integrated RAID controller for flexible storage management. This HPE server is ready for small and medium business workloads, with a single installed processor and a power consumption of 290 W.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Xeon E
- Processor model: E-2434
- Processor frequency: 3.4 GHz
- Processor boost frequency: 5 GHz
- Processor cores: 4
- Processor cache: 12 MB
- Number of processors installed: 1
Memory
- Internal memory: 16 GB
- Internal memory type: DDR5-SDRAM
- Memory slots: 4x DIMM
- ECC: Yes
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 1 x 16 GB
- Maximum internal memory: 128 GB
Storage
- Maximum storage capacity: 40 TB
- Total storage capacity: 0 GB
- HDD interface: SATA
- Number of HDDs supported: 2
- Supported HDD sizes: 3.5"
- SSD interface: SATA
- Supported SSD sizes: 3.5"
- Number of SSDs supported: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Hot-Plug support: Yes
- Optical drive type: No
Graphics
- On-board graphics card: Yes
- On-board graphics card model: Matrox G200
- Maximum graphics card memory: 16 MB
Network
- LAN controller: Broadcom BCM5719
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet

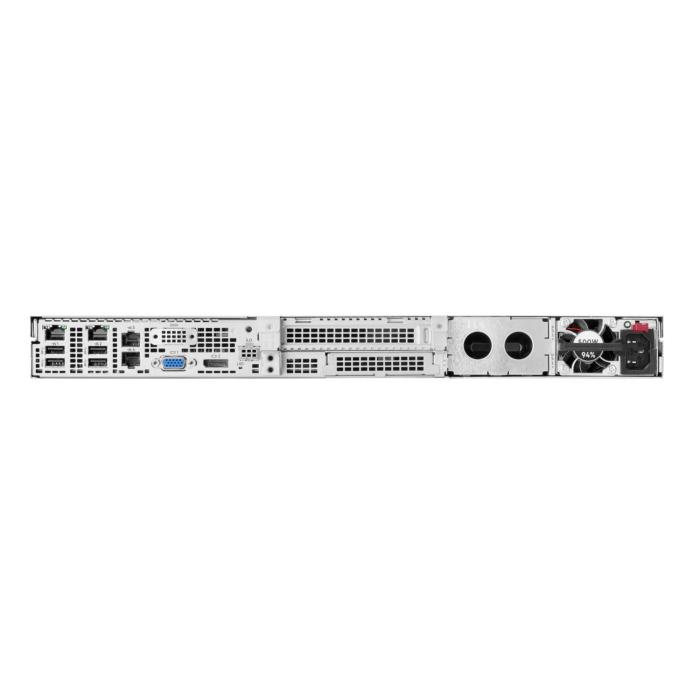

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 1
Design
- Chassis type: Rack (1U)
- Rack mounting: Yes
- Redundant fans support: No
Performance
- Remote administration: iLO 6 ASIC
Software
- Operating system installed: No
- Compatible operating systems: Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Power
- Redundant power supply (RPS) support: No
- Power supply: 290 W
- Number of main power supplies: 1
- Power supply input voltage: 100 - 240 V
- Power supply input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 434.6 mm
- Depth: 382.2 mm
- Height: 43.2 mm
