Description

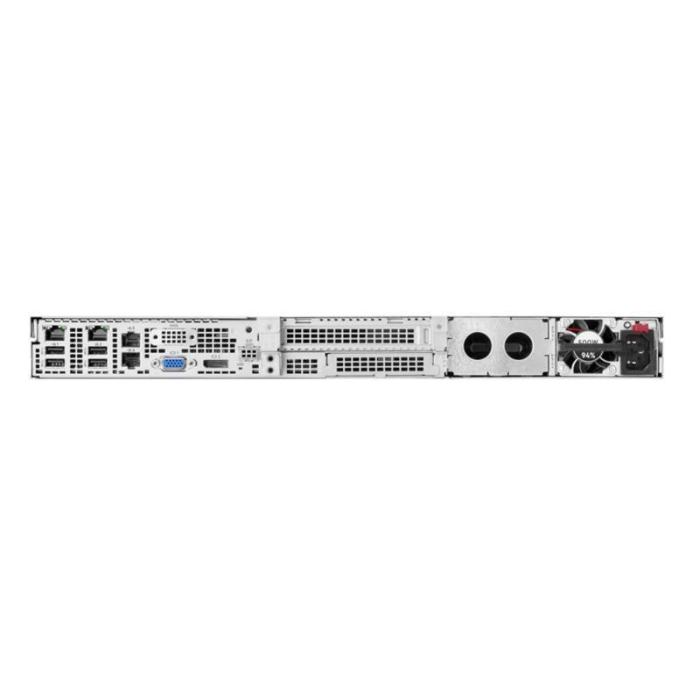

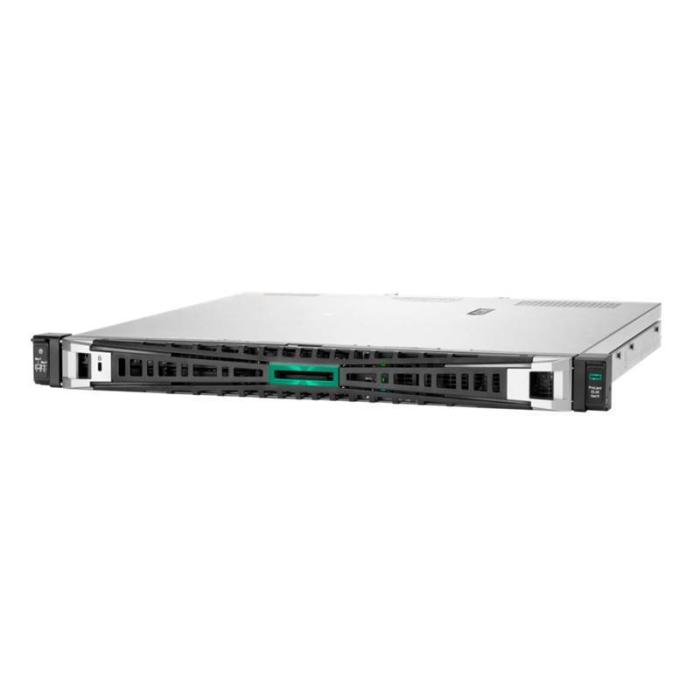

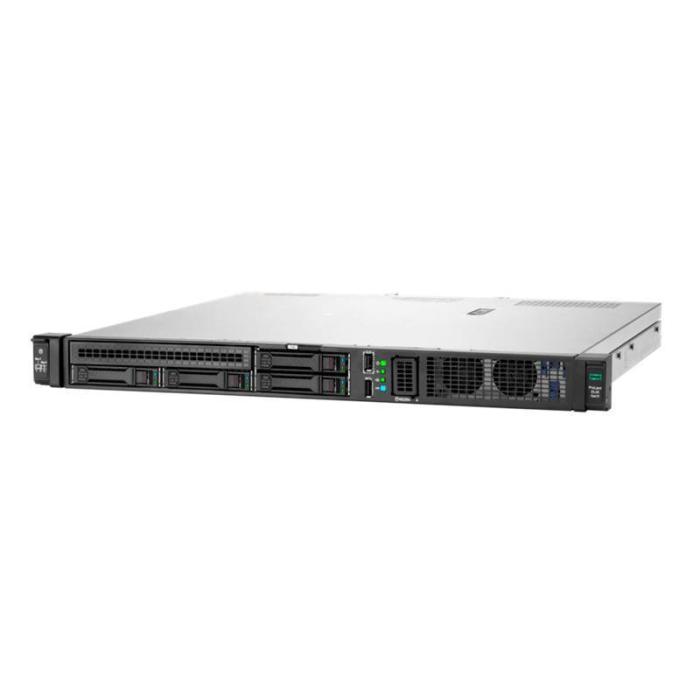

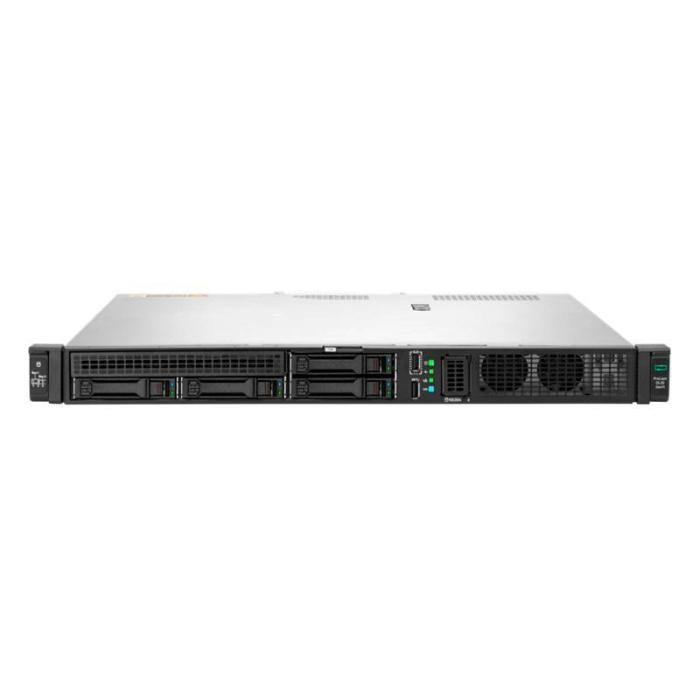

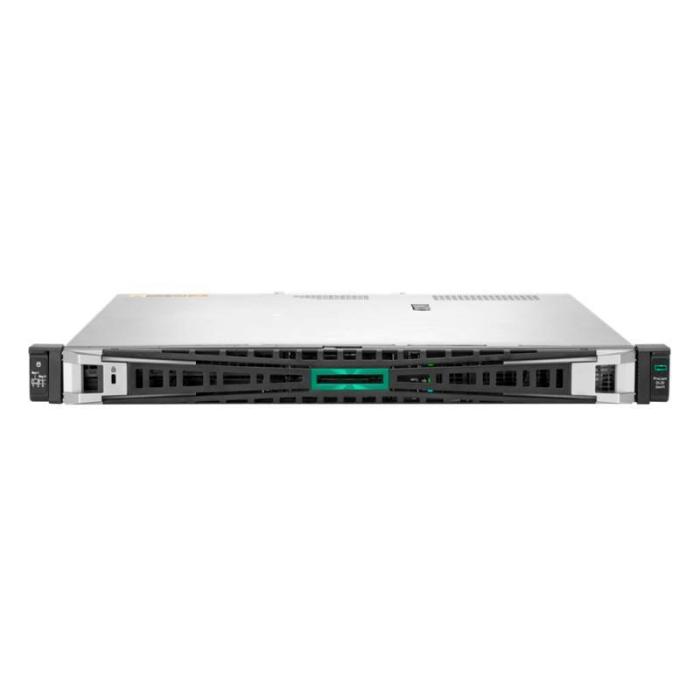

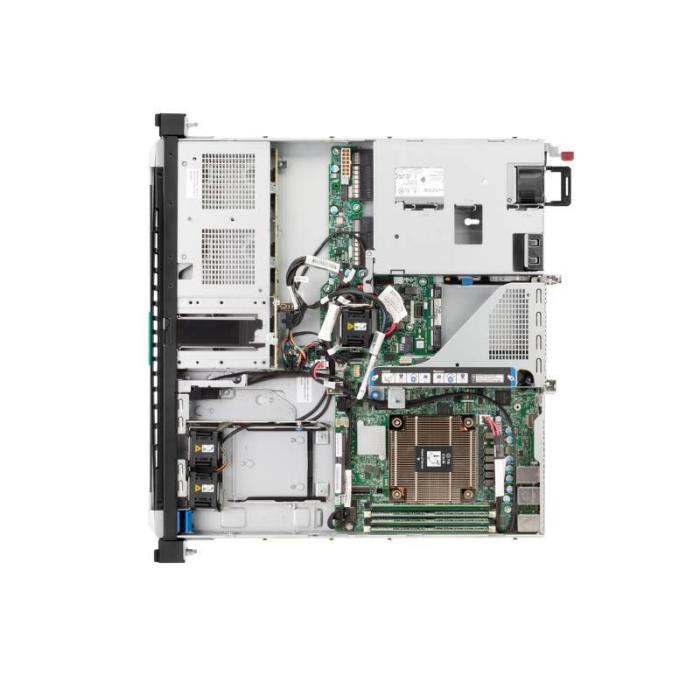

HPE ProLiant DL20 Gen11 server with Intel Xeon E-2414 processor at 2.6 GHz, offering 4 cores and 12 MB cache, along with 16 GB DDR5-SDRAM memory in a single 1 x 16 GB configuration with ECC support. It features 4 DIMM slots expandable up to 128 GB at 4800 MHz, and accommodates up to two 3.5" drives, both HDD and SSD, with PCI Express 4.0 interface. This 1-processor model includes a 290 W power supply and is designed for standard computing tasks in small and medium business environments. The motherboard integrates remote management functions and offers a balance between basic performance and expansion capability for initial workloads.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon®
- Processor model: E-2414
- Processor frequency: 2.6 GHz
- Processor cores: 4
- Processor cache: 12 MB
- Number of processors installed: 1
Memory
- Internal memory: 16 GB
- Internal memory type: DDR5-SDRAM
- Memory slots: 4x DIMM
- ECC: Yes
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 1 x 16 GB
- Maximum internal memory: 128 GB
Storage
- Maximum storage capacity: 8 TB
- Total storage capacity: 0 GB
- HDD interface: SATA
- Number of HDDs supported: 2
- Supported HDD sizes: 3.5"
- Number of SSDs supported: 2
- RAID support: Yes
- Hot-Plug support: Yes
- Optical drive type: No
- SSD interface: PCI Express 4.0
- Supported RAID controllers: Embedded Intel VROC SATA (formerly known as Intel RSTe)
Graphics
- On-board graphics card: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- VGA (D-Sub) ports quantity: 1
- DisplayPorts quantity: 1
Design
- Chassis type: Rack (1U)
- Rack mounting: Yes
Performance
- Remote administration: iLO 6 ASIC
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
- Compatible operating systems: Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu
Power
- Redundant power supply (RPS) support: No
- Power supply: 290 W
- Number of main power supplies: 1
- Power supply input voltage: 100 - 240 V
- Power supply input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 434.6 mm
- Depth: 382.2 mm
- Height: 43.2 mm
