Description

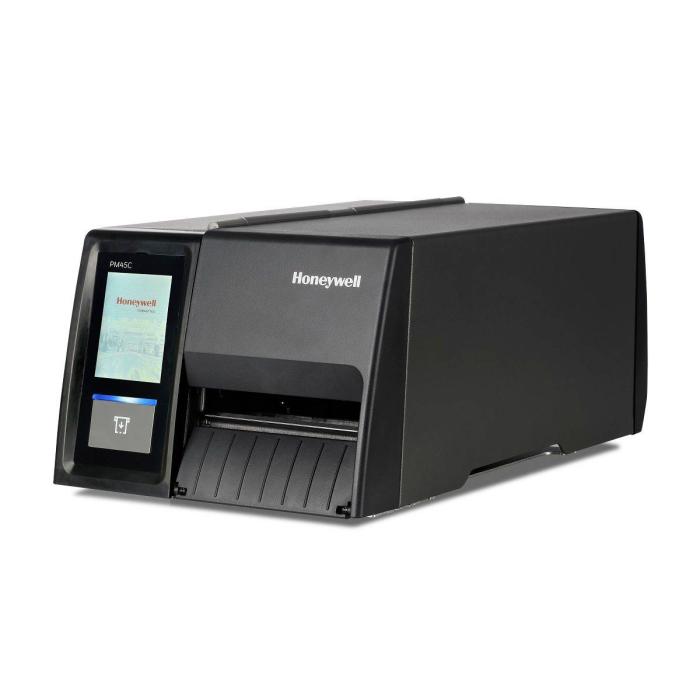

Honeywell PM45 Compact label printer with wired Ethernet connectivity and thermal transfer technology, offering a maximum resolution of 203 x 203 DPI and a print speed of 350 mm/s. Prints in black on a maximum width of 10.8 cm and supports labels up to 11.4 cm, with a maximum roll diameter of 21.3 cm and core of 7.62 cm. Features USB 2.0 port, RS-232 and support for DP, DPL, IPL, XML and ZPL II description languages, with a maximum print length of 4.8 m and 8 printable dots. Designed for environments requiring reliable handling of tickets and labels, its compact format facilitates integration into confined spaces without compromising consistent performance.
Specifications
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 8 dot
- Print speed: 350 mm/sec
- Printing colours: Black
- Maximum printing width: 10.8 cm
- Margin depth settings: Fixed
- Maximum print length: 4.8 m
Paper handling
- Maximum label width: 11.4 cm
- Maximum roll diameter: 21.3 cm
- Core diameter: 7.62 cm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: DP, DPL, IPL, XML, ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: 1D, 2D
- Image formats supported: BMP, GIF, PCX, PNG
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Control type: Touch
Power
- Power consumption (standby): 9.6 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
System requirements
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android, iOS
- Linux operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 5 - 90%
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
- Width: 253 mm
- Depth: 432 mm
- Height: 181 mm
- Weight: 12.6 kg
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
- Compliance certificates: CE, RoHS
Other features
- Supported network protocols: TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian, Thai
