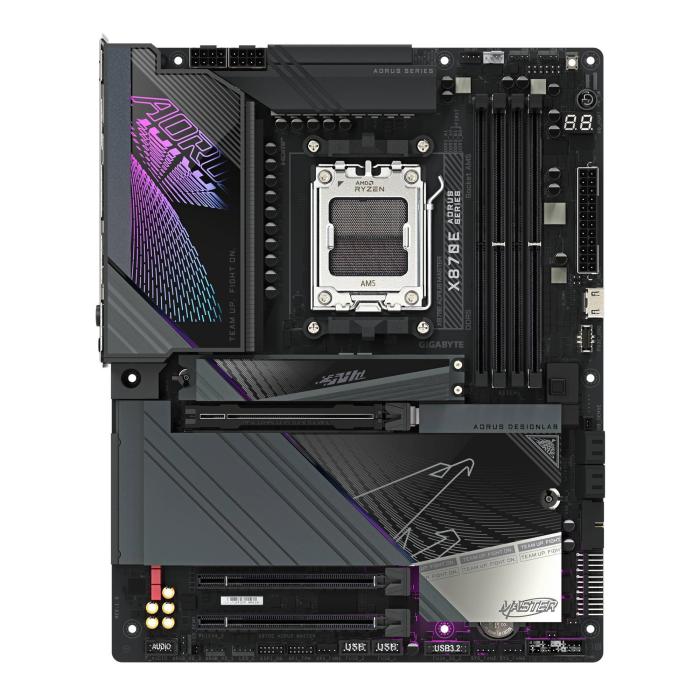

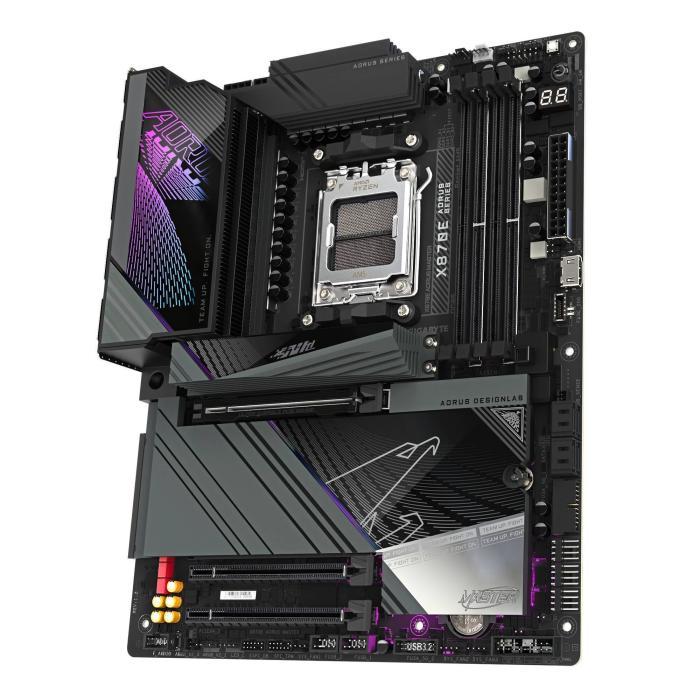

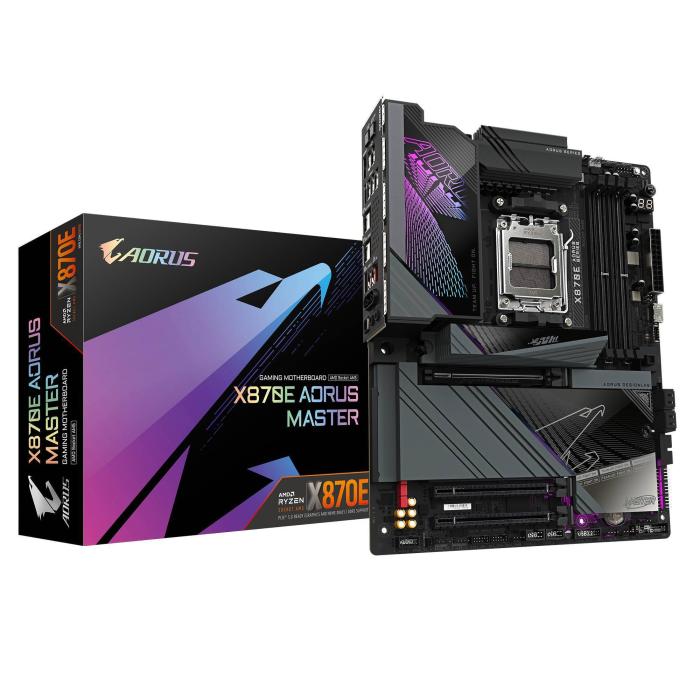

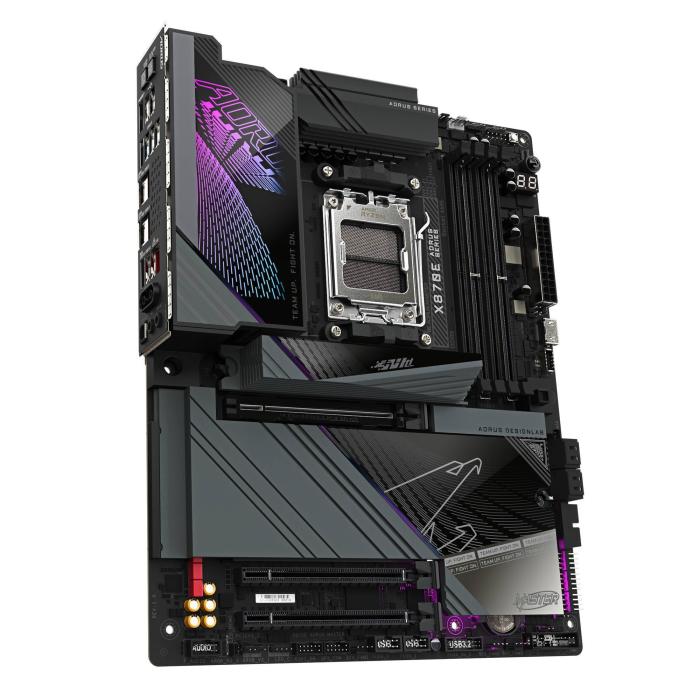

GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

$484.66
$484.66 without VAT

More info

Brand: GIGABYTE
SKU: 108820 PRC: 552251 EAN: 4719331864354 PN: X870E AORUS MASTER

Description

GIGABYTE X870E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8600MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM5
  • Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • Supported processor sockets: Socket AM5
  • Maximum internal memory supported by processor: 256 GB

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8200, 8400, 8600 MHz
  • Supported memory clock speed (max): 8600 MHz
  • Maximum internal memory: 256 GB
  • Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 64 GB

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 8
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Graphics

  • Parallel processing technology support: Not supported
  • On-board graphics card: No
  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • USB 3.2 Gen 2x2 connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 2
  • Number of chassis fan connectors: 6
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 2
  • TPM connector: Yes
  • Number of water pump connectors: 2
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 5

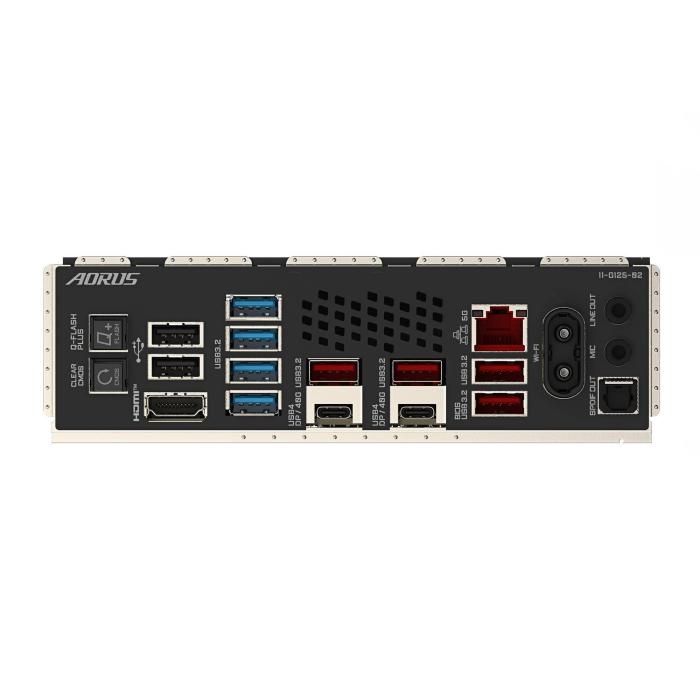

Rear panel I/O ports

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
  • USB4 Gen 2x2 ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • S/PDIF out port: Yes
  • WiFi-AP antenna jack: 2

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 5 Gigabit Ethernet
  • LAN controller: Realtek RTL8126
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
  • Wi-Fi standards: Wi-Fi 7 (802.11be)
  • WLAN controller model: Qualcomm QCNCM865
  • Bluetooth: Yes
  • Bluetooth version: 5.3

Features

  • Motherboard chipset: AMD X870
  • Audio chip: Realtek ALC1220
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • PC health monitoring: Fan, Temperature, Voltage
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 11 x64

Expansion slots

  • PCI Express x4 slots: 2
  • PCI Express x16 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4
  • 1st M.2 largest key size: 25110
  • 1st M.2 highest PCI Express generation: 5.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 5.0
  • 3rd M.2 largest key size: 22110
  • 3rd M.2 highest PCI Express generation: 5.0
  • 4th M.2 largest key size: 22110
  • 4th M.2 highest PCI Express generation: 4.0

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Clear CMOS button: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 345 mm
  • Package depth: 294 mm
  • Package height: 80 mm
  • Package weight: 2.97 kg

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm
  • Height: 35 mm

Packaging content

  • Batteries included: Yes
  • Antenna included: Yes
  • Screws included: Yes

Other features

  • Weight: 2.54 kg

Technical details

  • Warranty period: 3 year(s)
