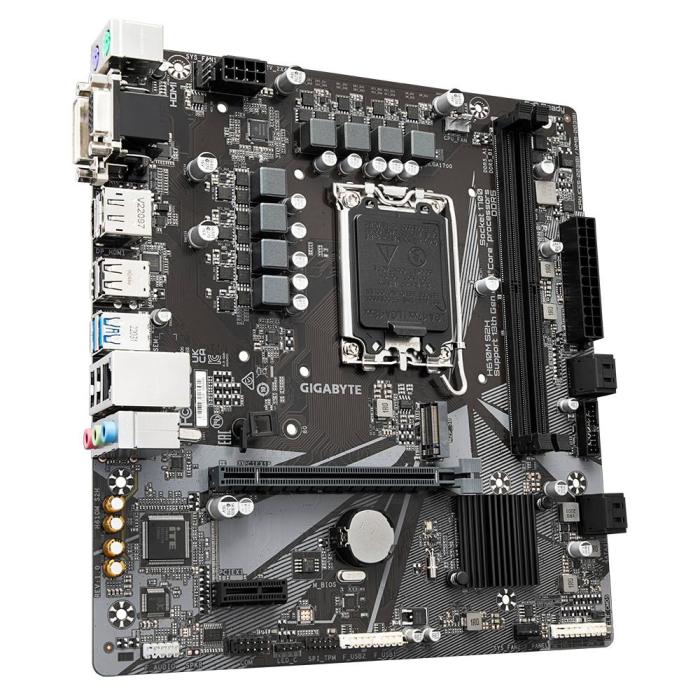

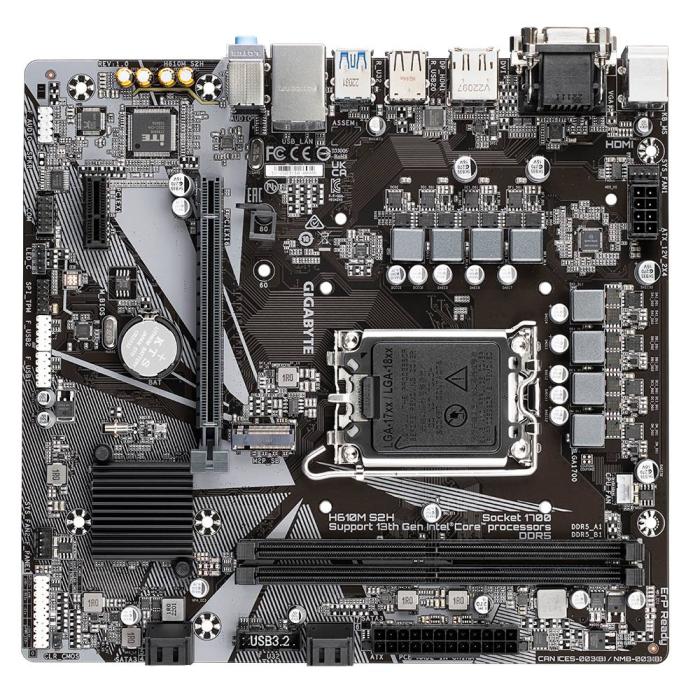

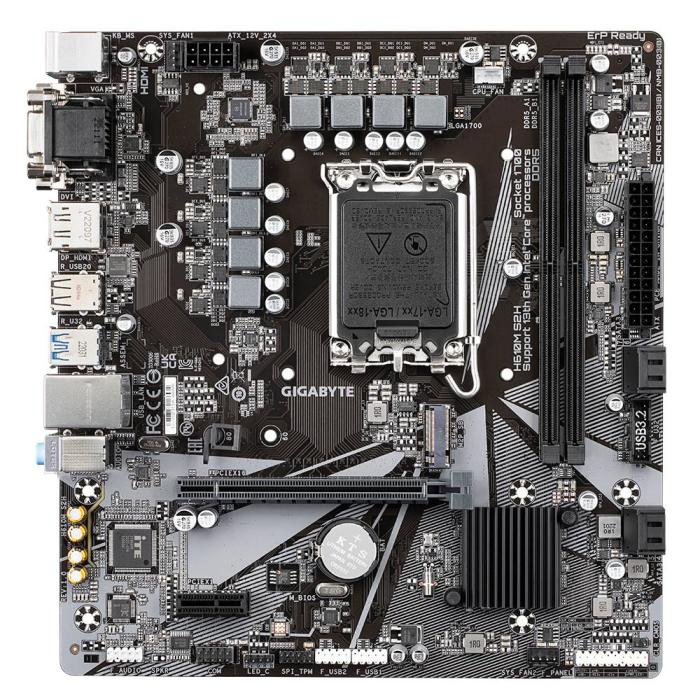

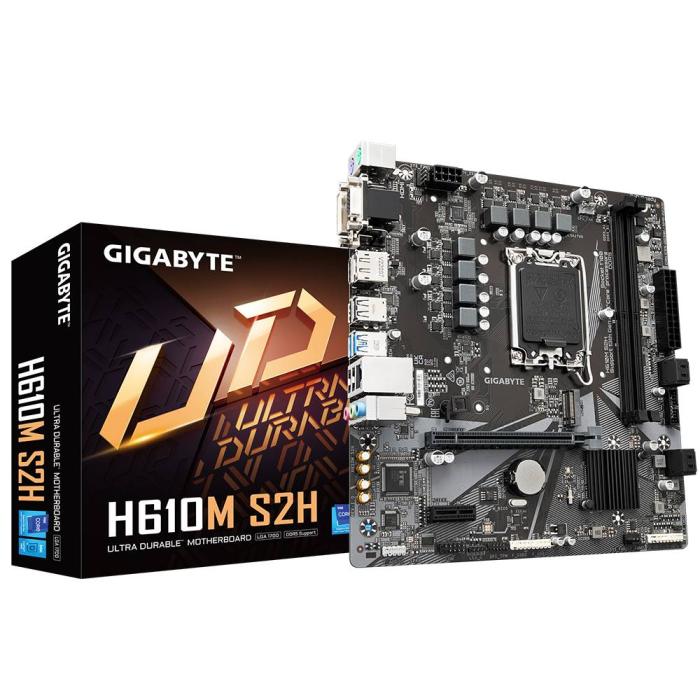

GIGABYTE H610M S2H Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 5600MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Not avaliable

GIGABYTE H610M S2H Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 5600MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1.   More info

Brand: GIGABYTE
SKU: 104085 PRC: 487300 EAN: 4719331854102 PN: H610M S2H

Description

Micro ATX, LGA 1700 socket, Intel H610 Express chipset, 2x DDR5 DIMM, AMI UEFI BIOS

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700
  • Maximum internal memory supported by processor: 64 GB

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4400, 4800, 5200, 5600 MHz
  • Supported memory clock speed (max): 5600 MHz
  • Maximum internal memory: 64 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 5

Graphics

  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0
  • Number of displays supported: 3

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • TPM connector: Yes
  • Serial port headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

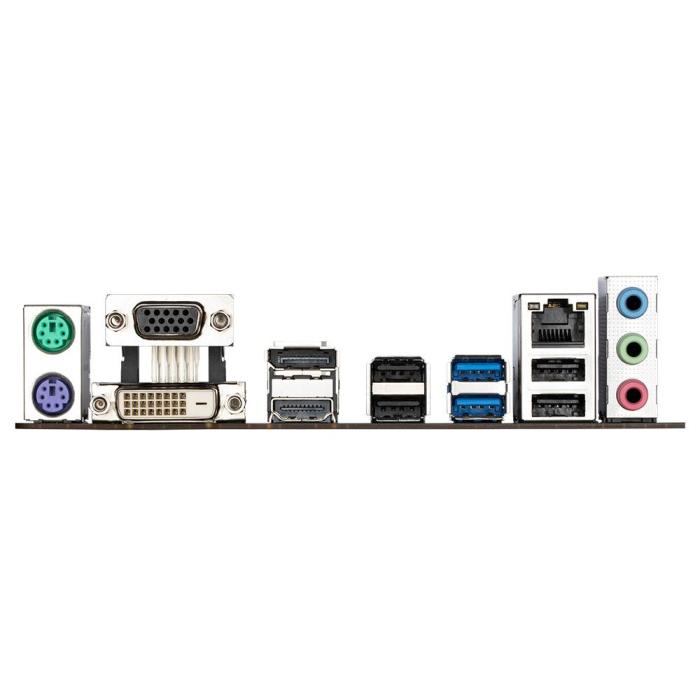

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 2
  • VGA (D-Sub) ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.0
  • DVI-D ports quantity: 1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Headphone outputs: 3
  • Microphone in: Yes
  • USB connector type: USB Type-A

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: No

Features

  • Motherboard chipset: Intel H610 Express
  • Audio output channels: 7.1 channels
  • Product colour: Brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x1 slots: 1
  • PCI Express x16 slots: 1
  • Number of M.2 (M) slots: 1

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 265 mm
  • Package depth: 235 mm
  • Package height: 52 mm
  • Package weight: 768 g

Weight & dimensions

  • Width: 230 mm
  • Depth: 215 mm
  • Height: 35 mm

Packaging content

  • Cables included: SATA
  • Batteries included: Yes
  • Bundled software: Norton Internet Security

Technical details

  • Warranty period: 3 year(s)
