Description

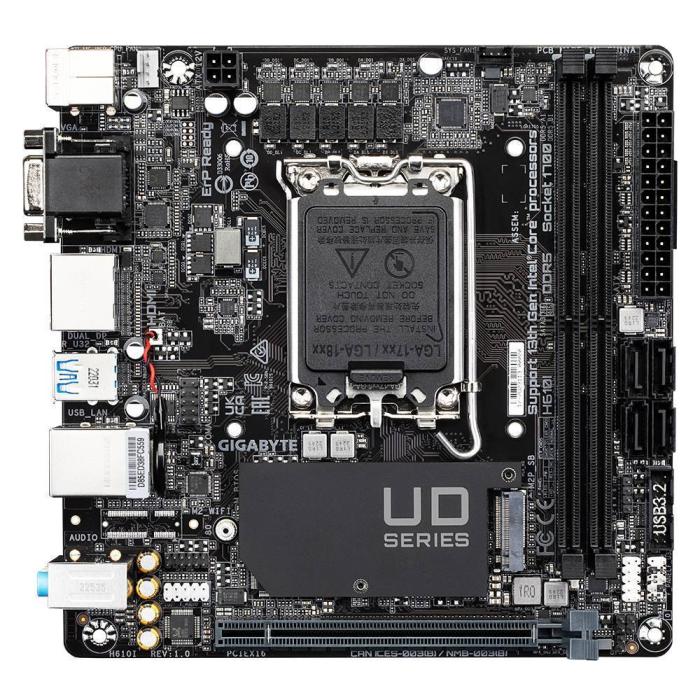

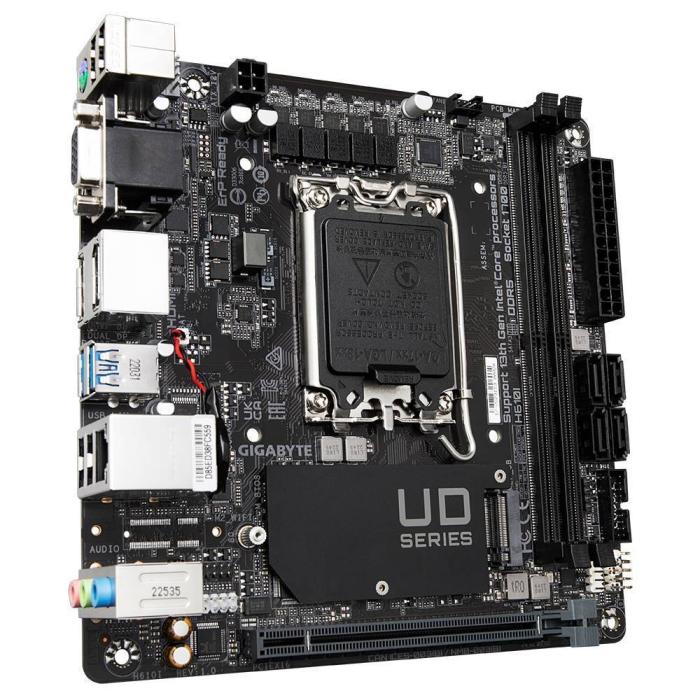

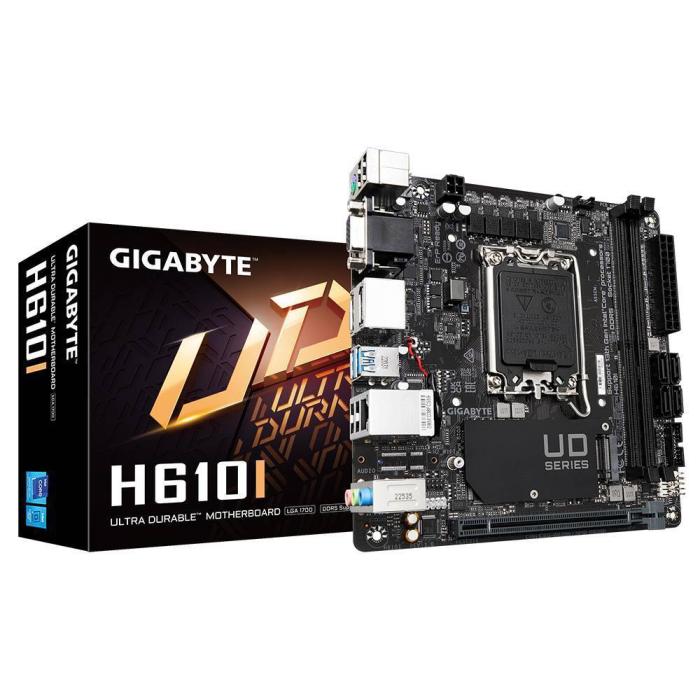

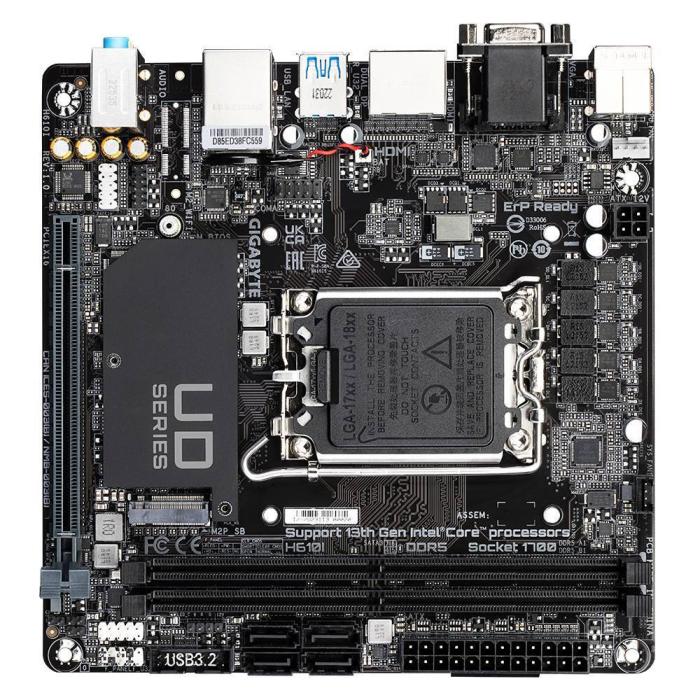

The GIGABYTE H610I is a black mini ITX motherboard, measuring 170 x 35 x 170 mm, designed for compact builds without compromising on connectivity and performance. It features the LGA 1700 socket, so it supports Intel Pentium G, Celeron processors and the Core i3, i5, i7 and i9 families. In terms of memory, it has two DIMM slots that work in dual channel and support up to 64 GB of maximum internal memory, in both ECC and non-ECC modules. It is compatible with unbuffered DDR5-SDRAM memory in capacities of 1, 2, 4, 8, 12, 16 and 32 GB, and supports clock speeds of 4400, 4800, 5200 and 5600 MHz, thus reaching a maximum supported speed of 5600 MHz. For storage, it offers five compatible drives and accommodates HDD and SSD drives via M.2 and SATA III interfaces, so you can combine a fast drive for the system and a higher-capacity one for data.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
- Supported processor sockets: LGA 1700
- Maximum internal memory supported by processor: 64 GB
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 5600, 5200, 4800, 4400 MHz
- Supported memory clock speed (max): 5600 MHz
- Maximum internal memory: 64 GB
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 1
- Number of storage drives supported: 5
Graphics
- Parallel processing technology support: Not supported
- Graphics card family: Intel
- Graphics card: HD Graphics
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- Chassis intrusion connector: Yes
- TPM connector: Yes
- Serial port headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

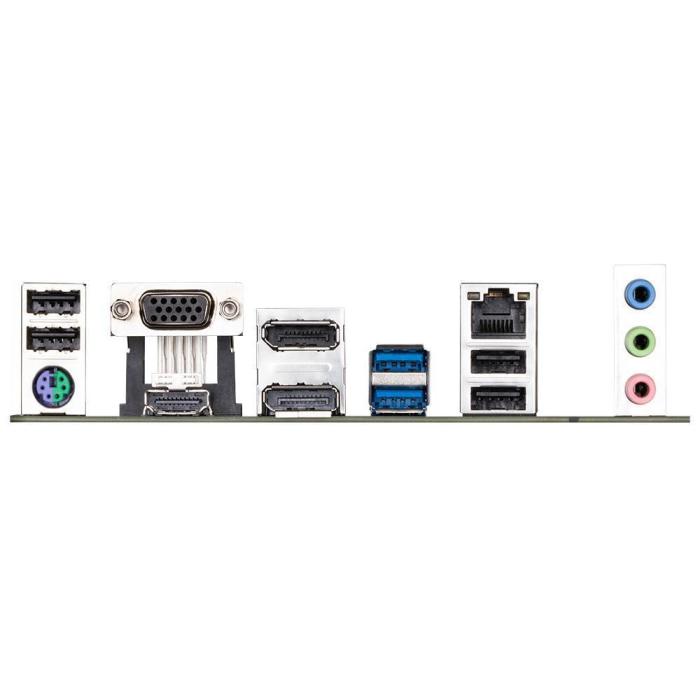

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.0
- DisplayPorts quantity: 2
- DisplayPort version: 1.2
- Headphone outputs: 3
- Microphone in: Yes
- USB connector type: USB Type-A
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard form factor: mini ITX
- Motherboard chipset family: Intel
- Cooling type: Active
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
- Motherboard chipset: Intel H610 Express
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
Expansion slots
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 222 mm
- Package depth: 180 mm
- Package height: 65 mm
- Package weight: 590 g
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
- Height: 35 mm
Packaging content
- Cables included: SATA
- Batteries included: Yes
- Bundled software: Norton Internet Security (OEM version), LAN bandwidth management software
Technical details
- Warranty period: 3 year(s)
