Description

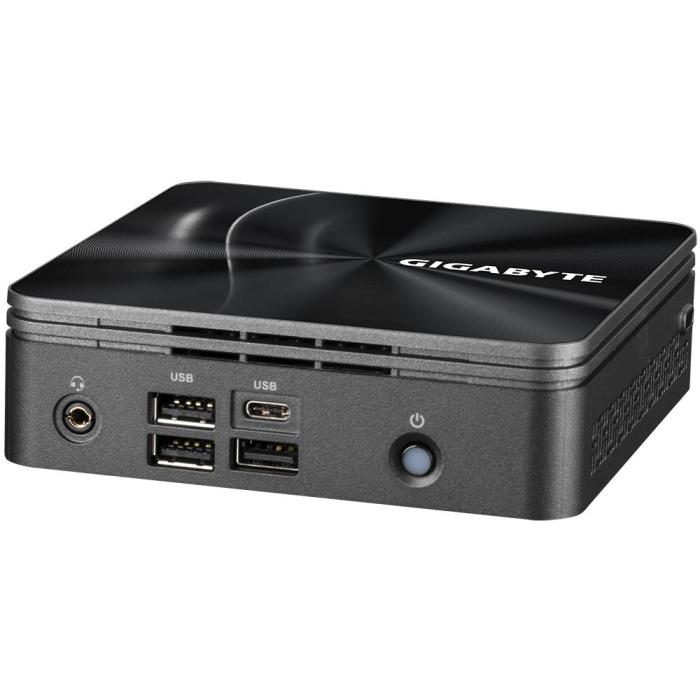

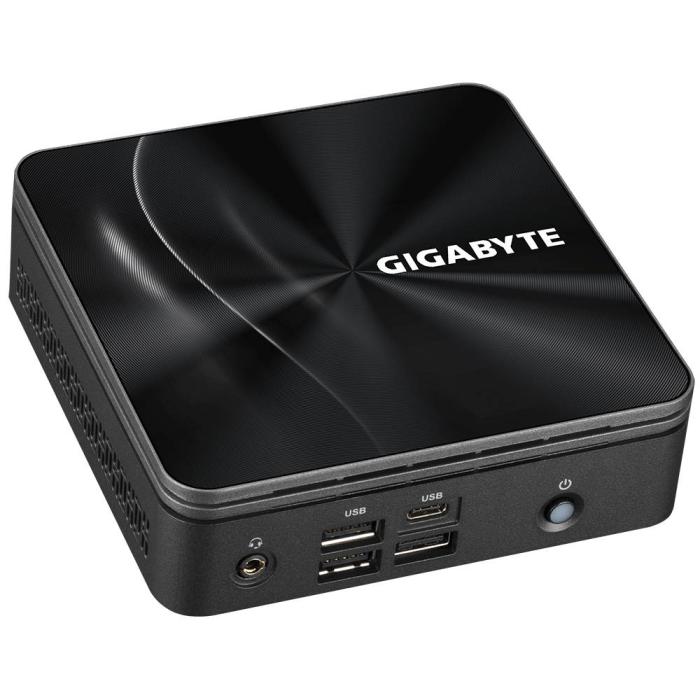

The GIGABYTE GB-BRR7-4800 barebone is a compact-form-factor workstation in black, with dimensions of 119.5 x 34.7 x 119.5 mm that make it easy to integrate into desks with little space. Its foundation is a third-generation AMD Ryzen 7 4800U processor, with a frequency of 2 GHz that reaches 4.1 GHz in turbo mode. It brings together 8 cores and 16 execution threads to respond smoothly to demanding workloads. The 12 MB L3 cache and a 7 nm lithography complete an efficient package for professional tasks. It accepts two SO-DIMM DDR4-SDRAM memory modules at 3200 MHz, with a maximum capacity of 64 GB. For storage it supports HDD and SSD drives via M.2, PCI Express and SATA interfaces, so you can configure the system according to your needs.
Specifications
Processor
- Processor manufacturer: AMD
- Processor family: AMD Ryzen™ 7
- Processor generation: 3rd Generation AMD Ryzen™ 7
- Processor model: 4800U
- Processor cores: 8
- Processor threads: 16
- Processor boost frequency: 4.1 GHz
- Processor frequency: 2 GHz
- Built-in processor: Yes
- Processor lithography: 7 nm
- L3 cache: 12 MB
Memory
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- Maximum internal memory: 64 GB
- Supported memory clock speeds: 3200 MHz
- Supported memory types: DDR4-SDRAM
Storage
- Supported storage drive types: HDD & SSD
- Storage drive sizes supported: M.2
- SSD form factor: M.2
- Storage drive interface: M.2, PCI Express, Serial ATA
Graphics
- On-board graphics card: Yes
- Graphics card family: AMD
- On-board graphics card model: AMD Radeon Graphics
- Maximum resolution: 3840 x 2160 pixels
Display
- Touchscreen: No
Audio
- Built-in speaker(s): No
Network
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- WLAN controller model: Intel Wi-Fi 6 AX200
- Ethernet LAN: Yes
- Wi-Fi: Yes
- LAN controller: Realtek RTL8125
- Bluetooth: Yes
- Bluetooth version: 5.2

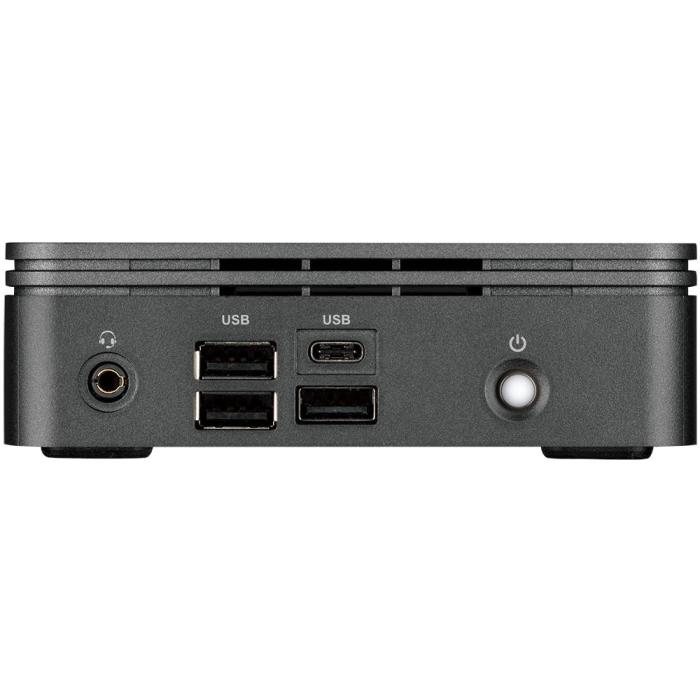

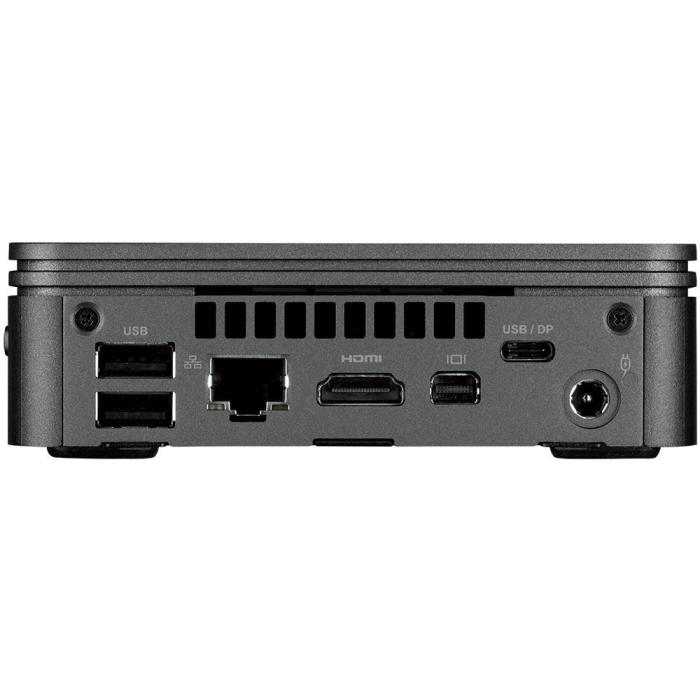

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.0a
- Mini DisplayPorts quantity: 1
- Headphone outputs: 1
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Expansion slots
- Number of M.2 (M) slots: 1
Design
- Chassis type: UCFF
- Product colour: Black
- On/off switch: Yes

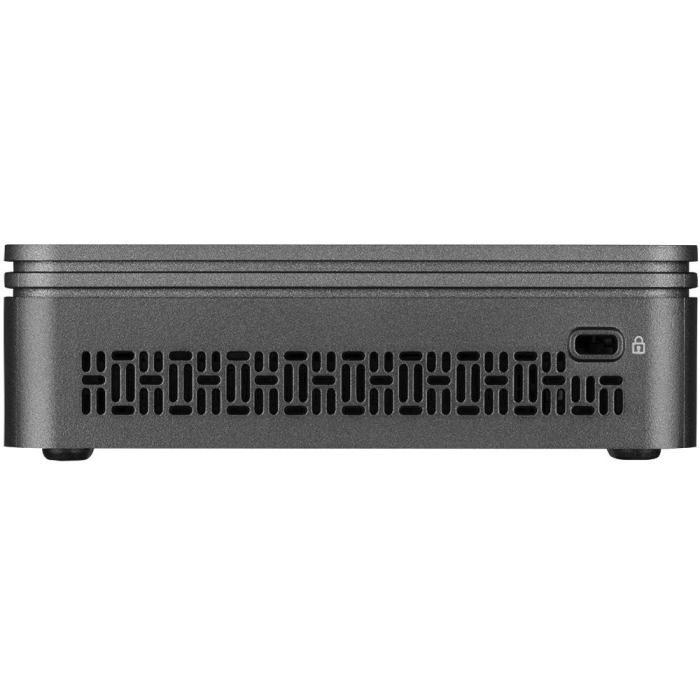

- Cable lock slot: Yes
- Cable lock slot type: Kensington
- VESA mounting: Yes
- Panel mounting interface: 75 x 75,100 x 100 mm
- Product type: Mini PC barebone
Performance
- Number of processors supported: 1
- Audio chip: Realtek ALC255
Logistics data
- Harmonized System (HS) code: 84713000
Software
- Windows operating systems supported: Windows 10 x64
Power
- Power supply type: External AC adapter
- Power supply: 90 W
- AC input voltage: 100 - 240 V
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 119.5 mm
- Depth: 119.5 mm
- Height: 34.7 mm
Packaging content
- Power cord included: Yes
- AC adapter included: Yes
- Quick start guide: Yes
