Description

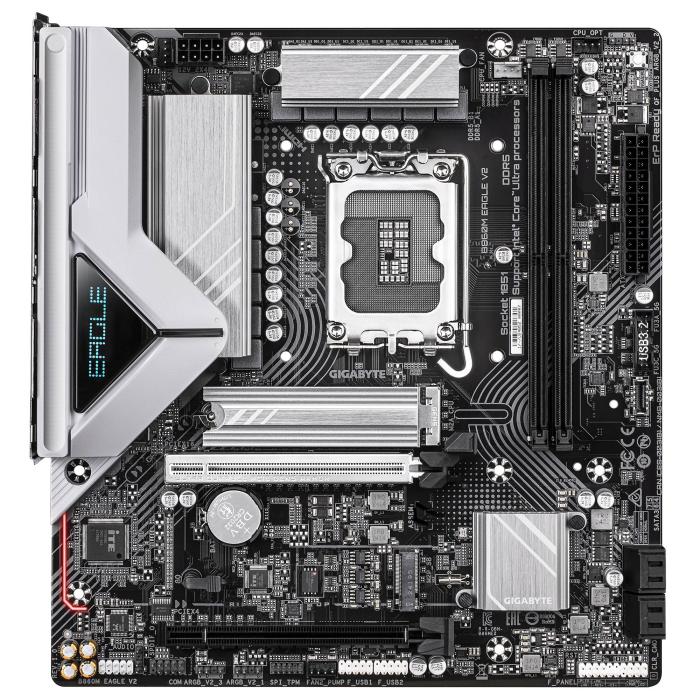

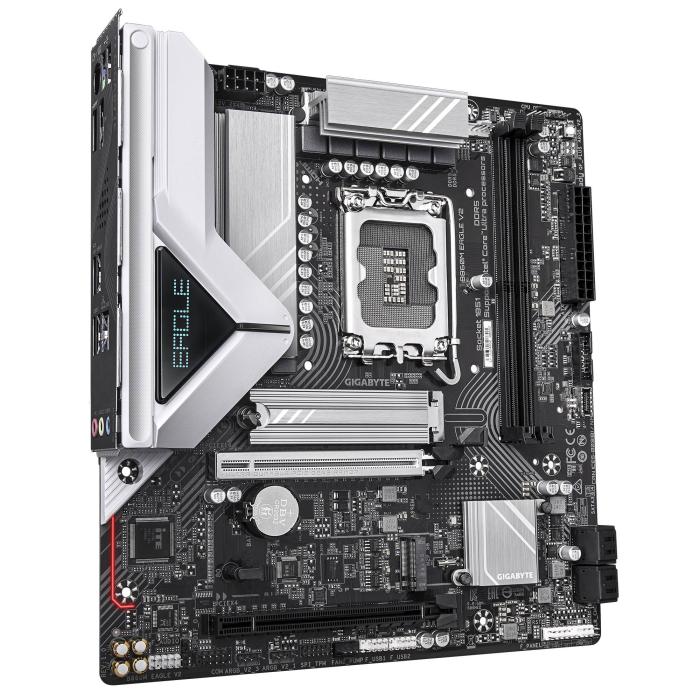

The GIGABYTE B860M EAGLE V2 motherboard is designed for Intel Core Ultra Series 2 processors on the LGA 1851 socket, with a 6+1+2 phase VRM that provides stability under sustained loads. Its dark brown colour defines the finish of the board, which measures 244 x 35 x 225 mm (width x height x depth) and weighs 1.01 kg. It includes two DIMM slots for dual-channel DDR5-SDRAM memory, with support for ECC and non-ECC, unbuffered and up to 128 GB capacity, 64 GB per slot, reaching clock speeds of up to 9066 MHz. For storage it supports HDD and SSD via M.2, PCI Express 5.0, PCI Express 4.0 and SATA III, with RAID and up to four HDDs. It adds 2.5 GbE LAN and USB 3.2 Gen 1 for the system's connectivity. A solid foundation for building a high-performance system.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 9066, 8800, 8600, 8400, 8266, 8200, 8000, 7950, 7900, 7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 5600 MHz
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- Serial port headers: 1
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

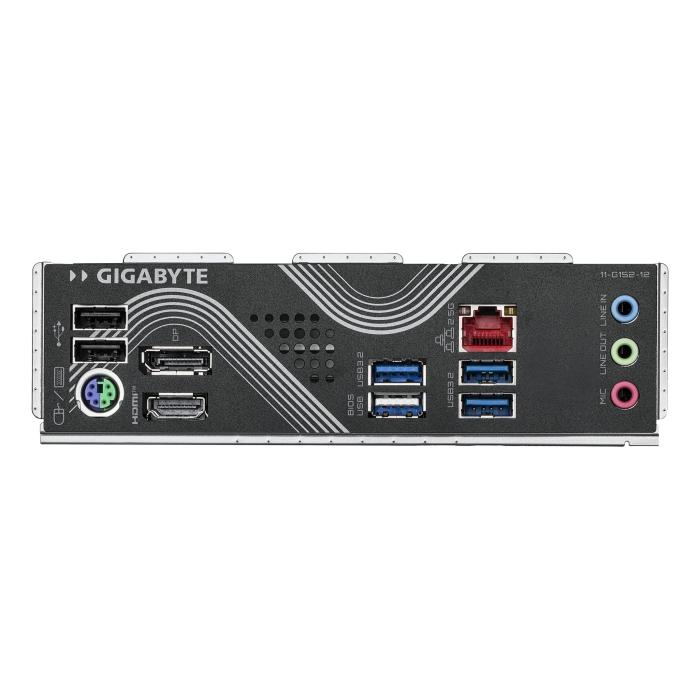

Rear panel I/O ports
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: No
Features
- Motherboard chipset: Intel B860
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 265 mm
- Package depth: 265 mm
- Package height: 54 mm
- Package weight: 1.2 kg
Weight & dimensions
- Width: 244 mm
- Depth: 225 mm
- Height: 35 mm

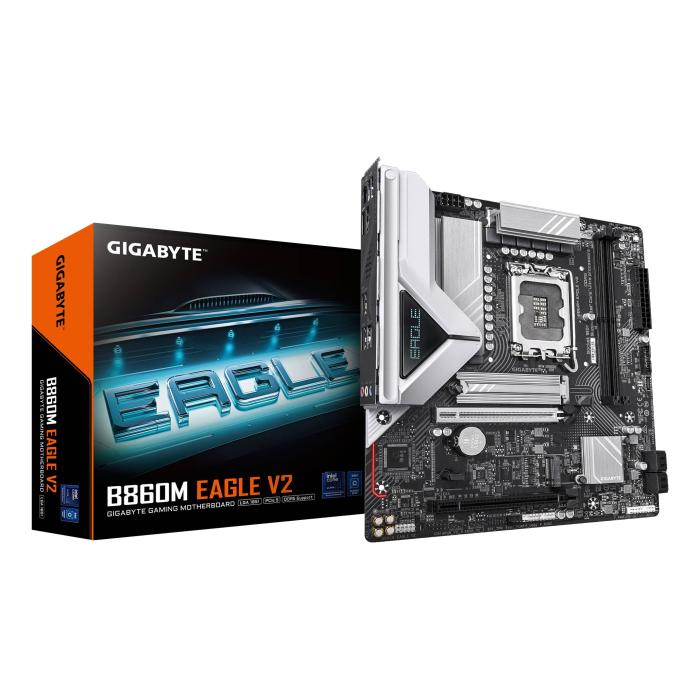

Packaging content
- Batteries included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Other features
- Weight: 1.01 kg
Technical details
- Warranty period: 3 year(s)
