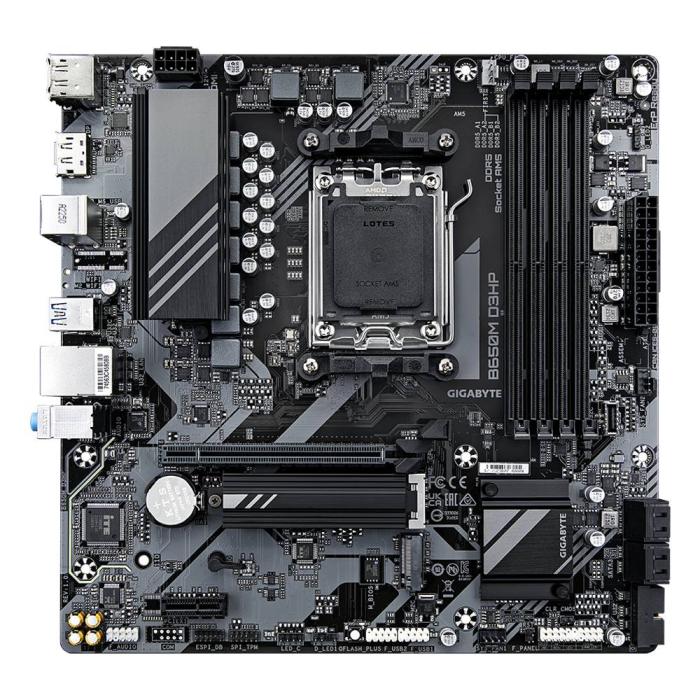

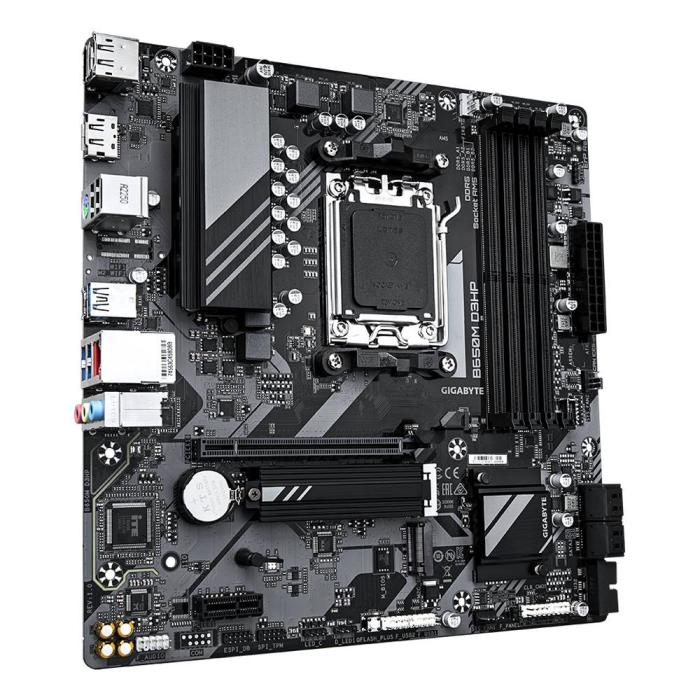

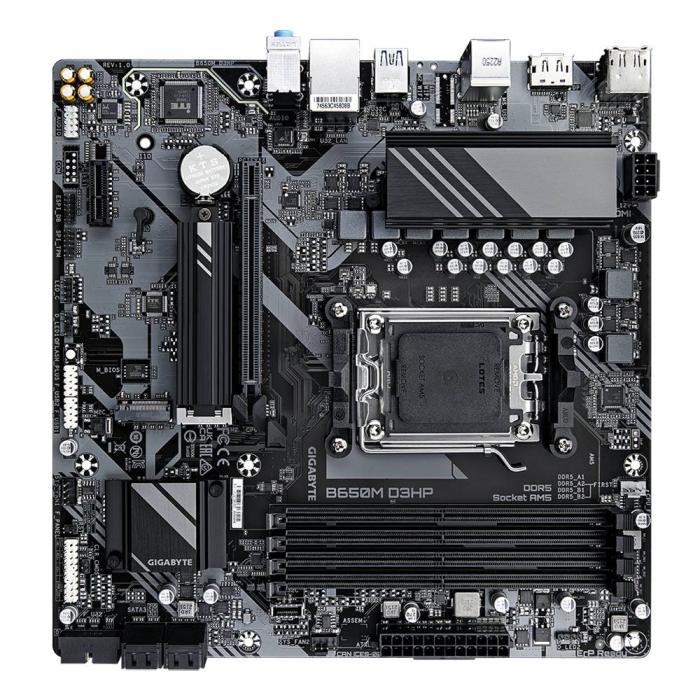

GIGABYTE B650M D3HP Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
More info
Brand: GIGABYTE
93.10 €
76.94 €
without VAT
Stock available: 216 units.
Get it
on the
September 1
/
September 2
SKU:
104161
PRC:
494986
EAN:
889523039083
PN:
B650M D3HP
Description
The GIGABYTE B650M D3HP motherboard for the AM5 socket supports AMD Ryzen 7000, 8000 and 9000 series processors, with a 5+2+2 phase VRM that ensures stable power delivery for your CPU. It offers four DIMM slots for dual-channel DDR5 memory, with overclocking support up to 7600 MHz and a maximum capacity of 256 GB, ideal for demanding configurations. For storage, it features two M.2 slots with PCIe 4.0 interface, as well as support for SATA III drives and RAID 0, 1 and 10 configurations, along with 2.5 GbE LAN connectivity and USB 3.2 Gen 1 ports for fast data transfer.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800 MHz
- Supported memory clock speed (max): 7600 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- DirectX version: 12.0
- Discrete graphics support: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

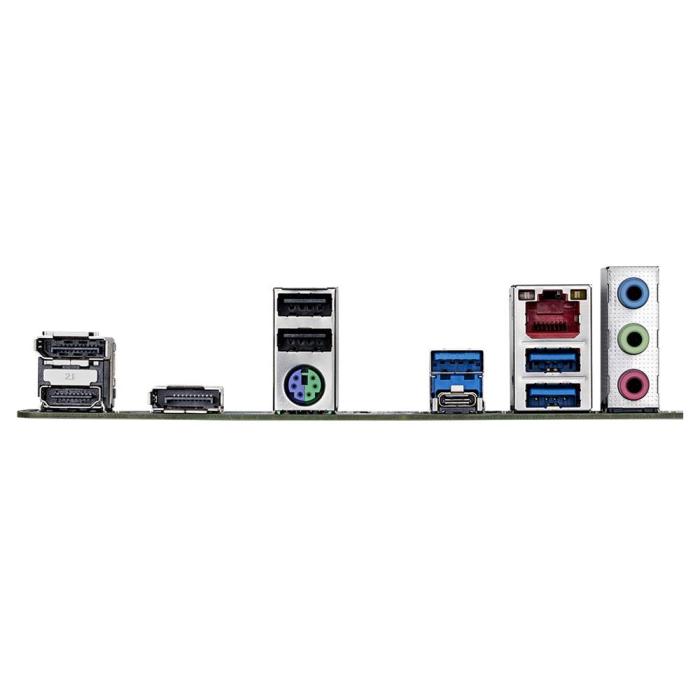

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: No
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Brown
- PC health monitoring: Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2580
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 265 mm
- Package depth: 265 mm
- Package height: 54 mm
- Package weight: 1.02 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Technical details
- Warranty period: 3 year(s)
