Description

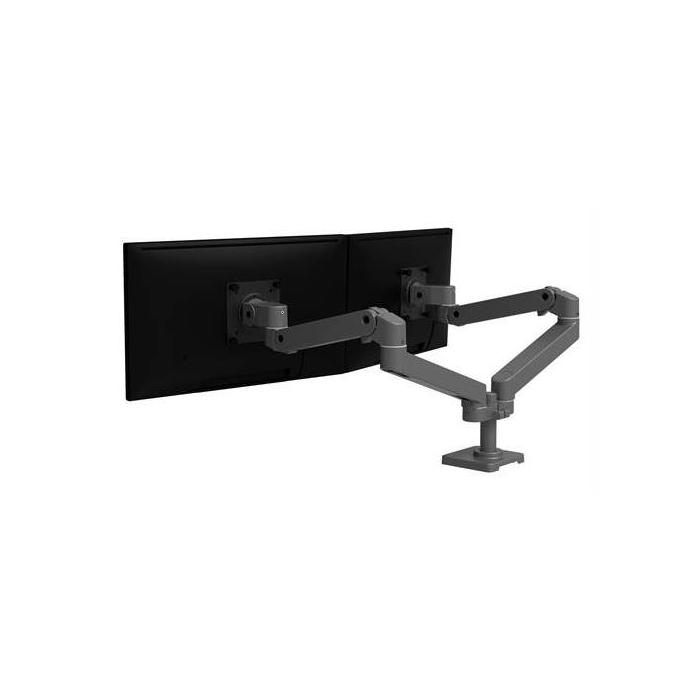

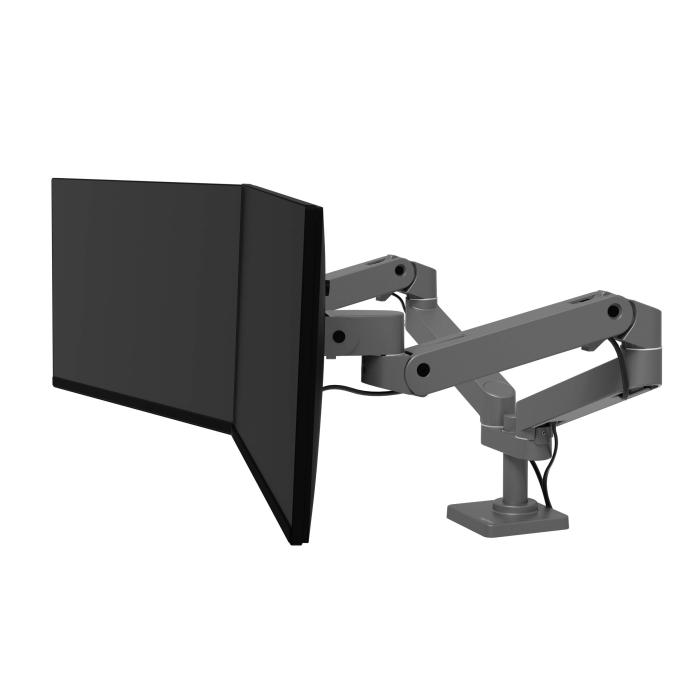

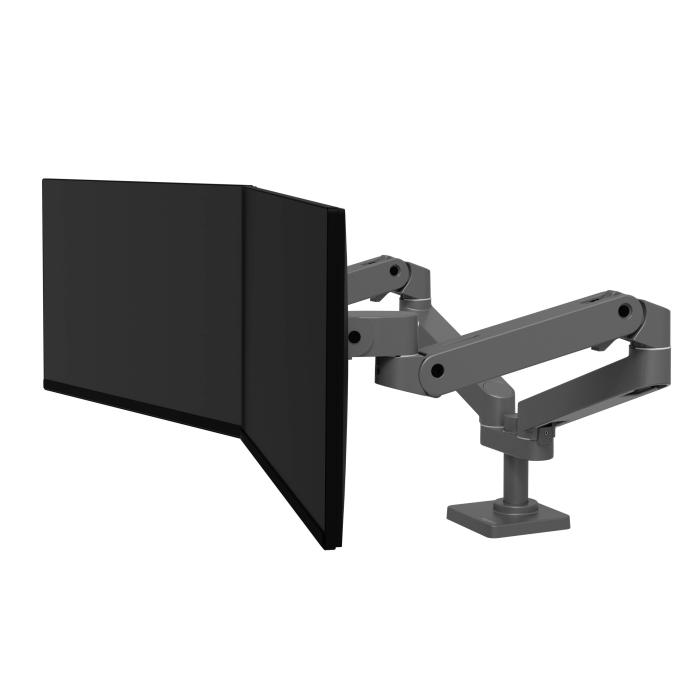

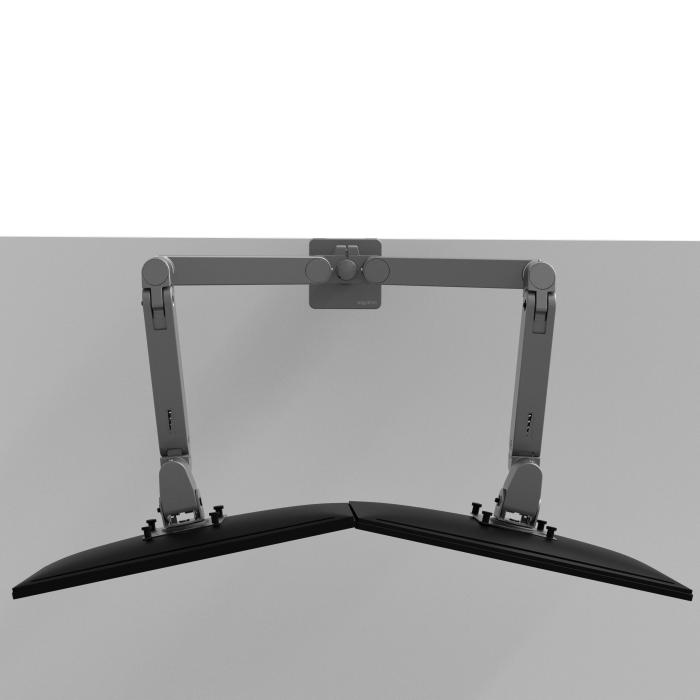

The Ergotron LX Pro Series 45-686-293 monitor mount in dark grey attaches to the desk via a clamp and supports desks between 1 and 6 cm thick, with capacity for two screens of up to 68.6 cm (27") and a maximum weight of 10 kg per display. This LX Pro Series model allows tilt adjustment between -70 and 15 degrees, swivel the panel up to 360 degrees and pivot from 0 to 180 degrees, as well as easily adjust the height. Its extendable arm reaches 64 cm and features integrated cable management to keep the work area tidy. The fixing is compatible with VESA interfaces of 75 x 75 mm and 100 x 100 mm, and supports a total weight of up to 20 kg if used with both monitors.
Specifications
Mounting
- Maximum weight capacity: 20 kg
- Number of displays supported: 2
- Maximum weight capacity (per display): 10 kg
- Maximum screen size: 68.6 cm (27")
- Mounting: Clamp
- Mounting type: Desk

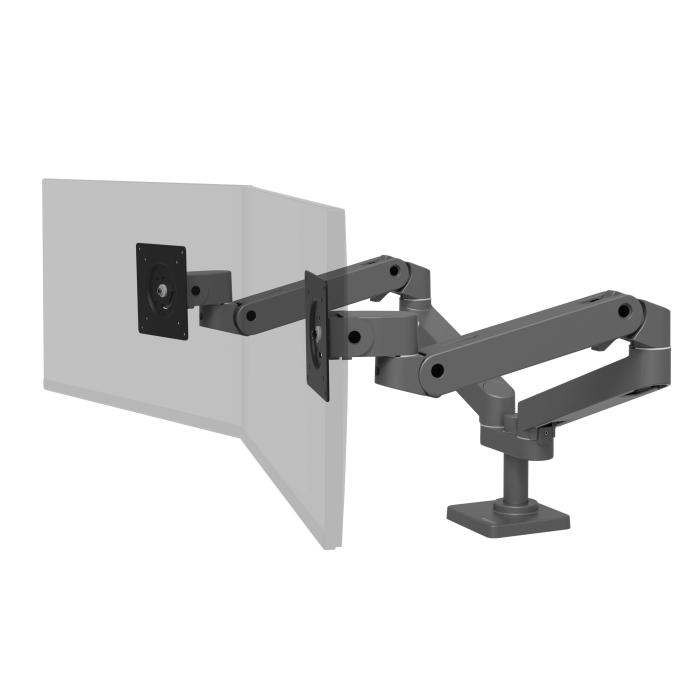

- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm

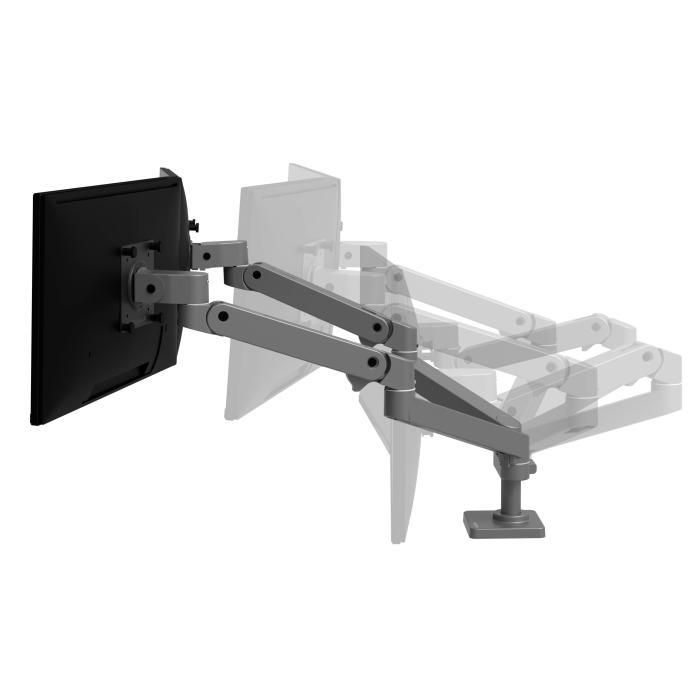

- Extension arm (max): 64 cm
- Desk thickness (min): 1 cm
- Desk thickness (max): 6 cm
Ergonomics
- Height adjustment: Yes
- Height adjustment range: 0 - 330 mm
- Adjustable depth: Yes
- Tilt adjustment: Yes
- Tilt angle range: -70 - 15°
- Rotating: Yes
- Angle of rotation: 360°
- Turn angle: 360°
- Pivot angle: 0 - 180°
- Pan range: 0 - 360°

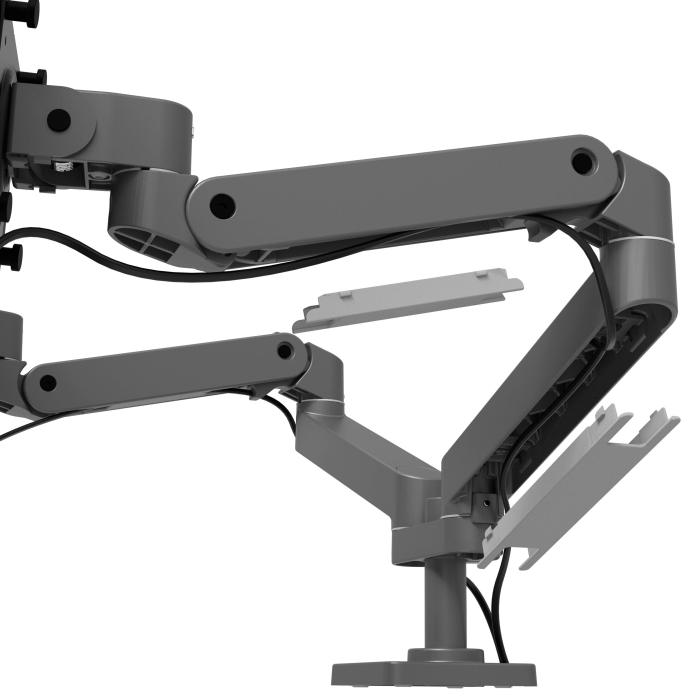

- Cable management: Yes
Design
- Housing material: Aluminium
- Product colour: Dark Grey
- Orientation: Landscape/Portrait
Weight & dimensions
- Weight: 6.03 kg
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 690 mm
- Package depth: 340 mm
- Package height: 170 mm
- Package weight: 8.62 kg
Packaging content

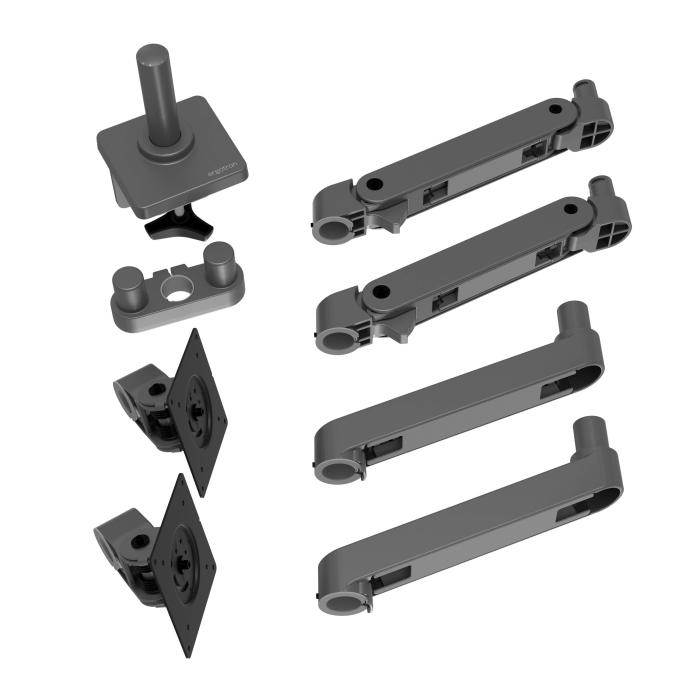

- Mounting kit: Yes
Other features
- Warranty period: 10 year(s)
