Description

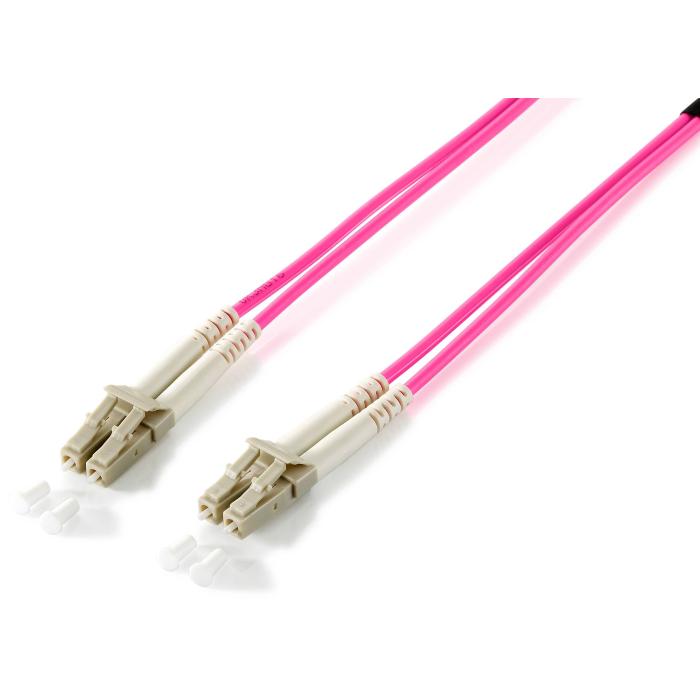

The EQUIP 255515 fibre optic cable, violet in colour and 5 m in length, connects network equipment in short-distance installations. It features two male LC connectors and OM4 multimode fibre, with a 50 µm core and a 125 µm cladding. It operates in full duplex mode, so it transmits and receives data simultaneously. Its halogen-free (LSZH) jacket is suitable for cabling in enclosed spaces. Insertion loss is 0.5 dB, a relevant figure for assessing signal attenuation along the run. It supports operating temperatures from -20 to 70 °C and storage temperatures from -40 to 80 °C, so it withstands varied environments well. It has REACH and RoHS certificates of conformity. The product weight is 53 g, making it a lightweight, manageable piece during installation.
Specifications
Features
- Cable length: 5 m
- Fibre optic type: OM4
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Violet
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Insertion loss: 0.5 dB
- Jacket material: Low smoke zero halogen (LSZH)
Certificates
- Compliance certificates: REACH, RoHS
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
- Storage temperature (T-T): -40 - 80 °C
Weight & dimensions
- Weight: 53 g
Packaging data
- Package width: 275 mm
- Package depth: 18 mm
- Package height: 175 mm
- Package weight: 64 g
Logistics data
- Harmonized System (HS) code: 85447000
