Description

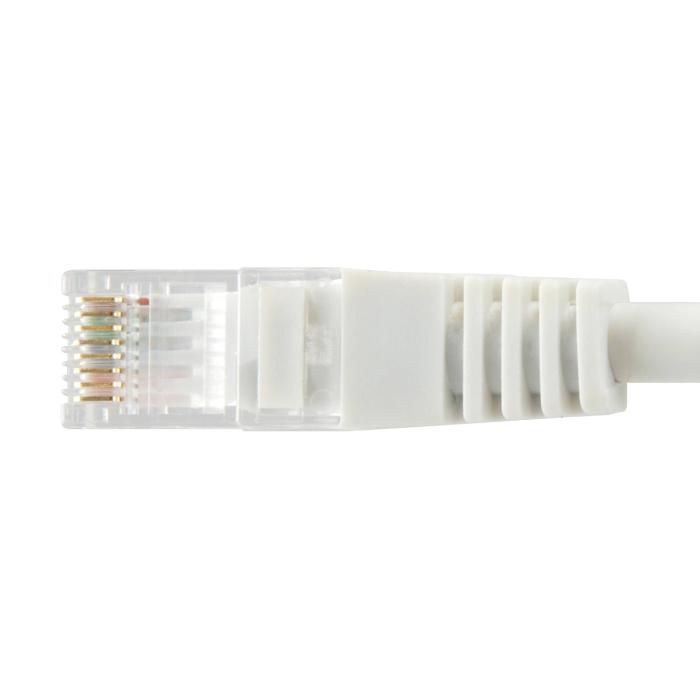

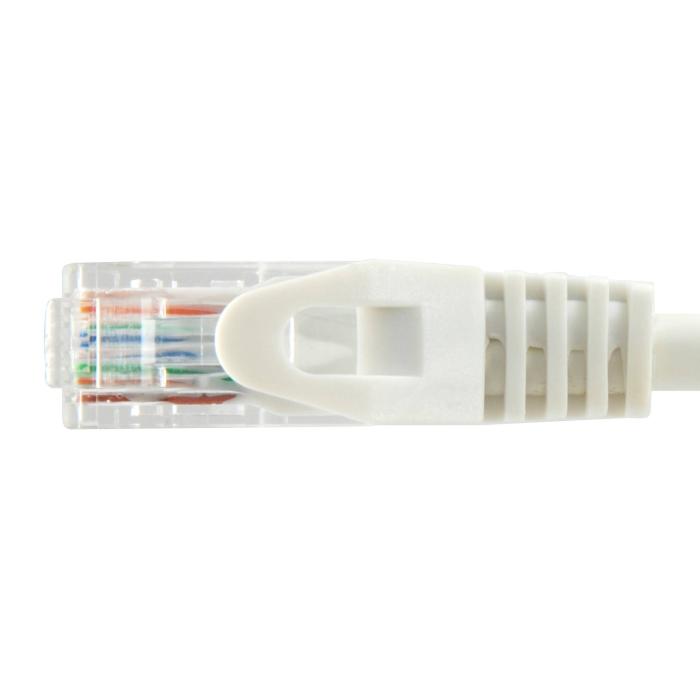

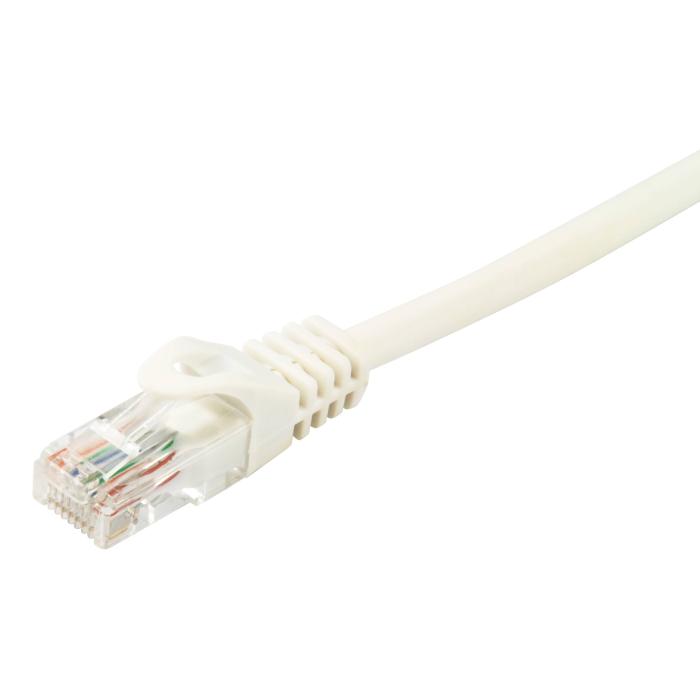

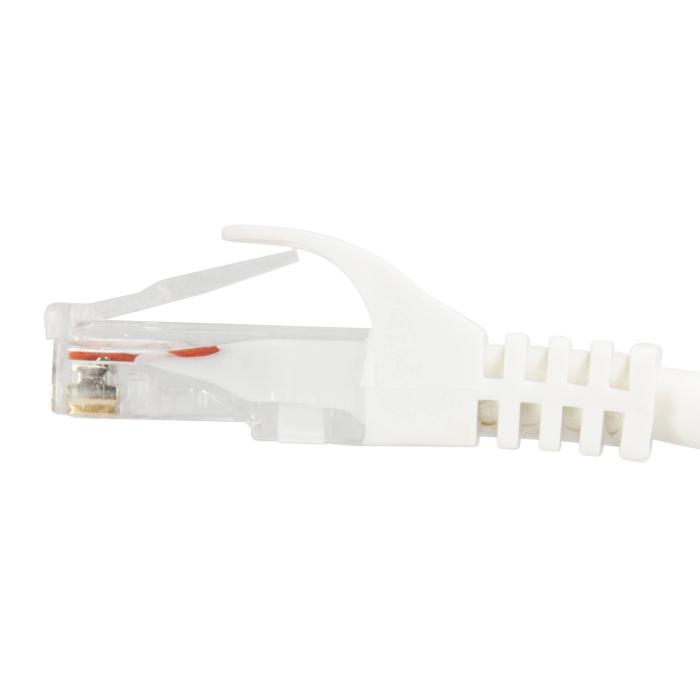

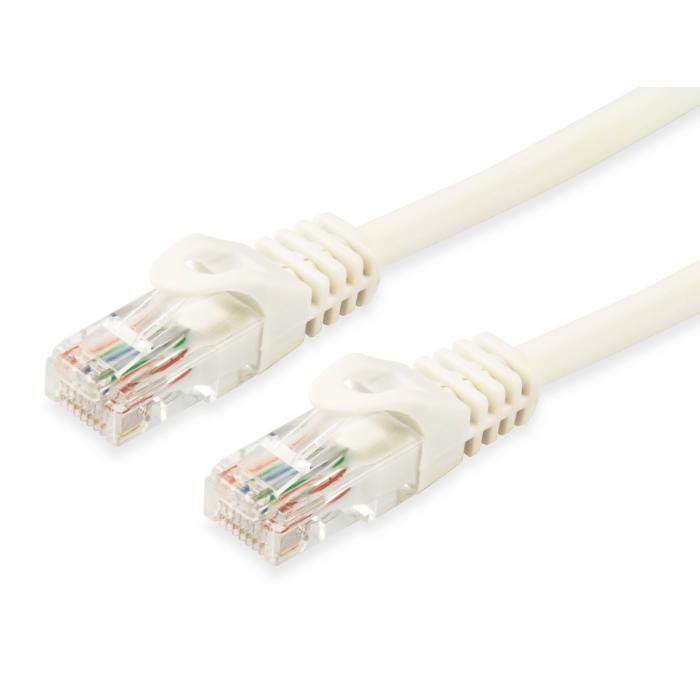

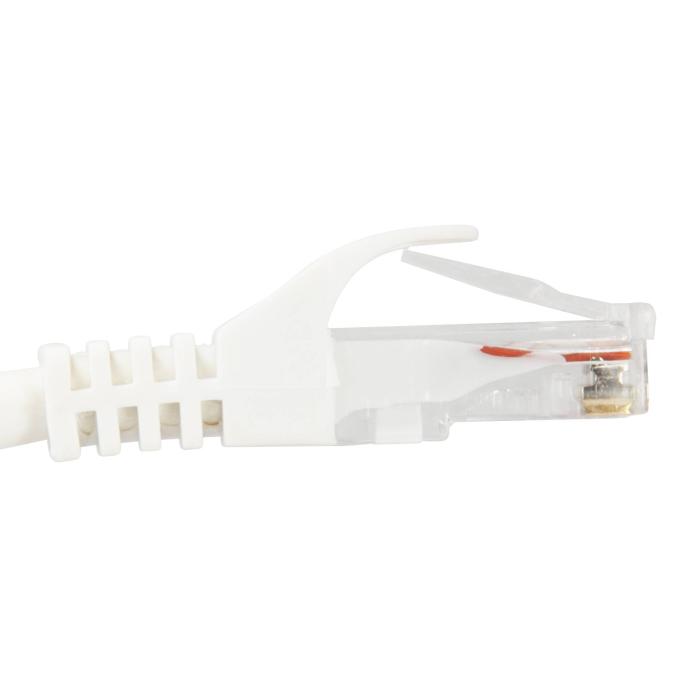

EQUIP network cable in white, with a length of 10 metres and Cat6a U/UTP category, designed for high-performance network connections. This cable features RJ-45 male connectors at both ends, gold-plated contacts and stranded copper conductors, facilitating stable and durable transmission. It supports 10GBase-T technology and frequencies up to 500 MHz, being compatible with 10 Gigabit Ethernet and Gigabit Ethernet networks, as well as PoE+ power delivery. Its halogen-free jacket (LSZH) and round shape design allow for simple and safe installation, with immediate plug-and-play operation.
Specifications
Features
- Product colour: White
- Cable length: 10 m
- Cable standard: Cat6a
- Cable shielding: U/UTP (UTP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
- AWG wire size: 26/7
- Frequency: 500 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS, CE, REACH
Weight & dimensions
- Width: 10.7 mm
- Depth: 11.7 mm
- Height: 10000 mm
- Insulation thickness: 0.35 mm
- Outer diameter: 5.5 mm
- Weight: 313.33 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 200 mm
- Package depth: 40 mm
- Package height: 260 mm
- Package weight: 330 g
- Package type: Polybag
Other features
- Insulation outer diameter: 1.05 mm
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 300 mm
- Master (outer) case gross weight: 9.9 kg
- Master (outer) case height: 400 mm
- Products per master (outer) case: 30 pc(s)
Technical details
- Sustainability compliance: Yes
