Description

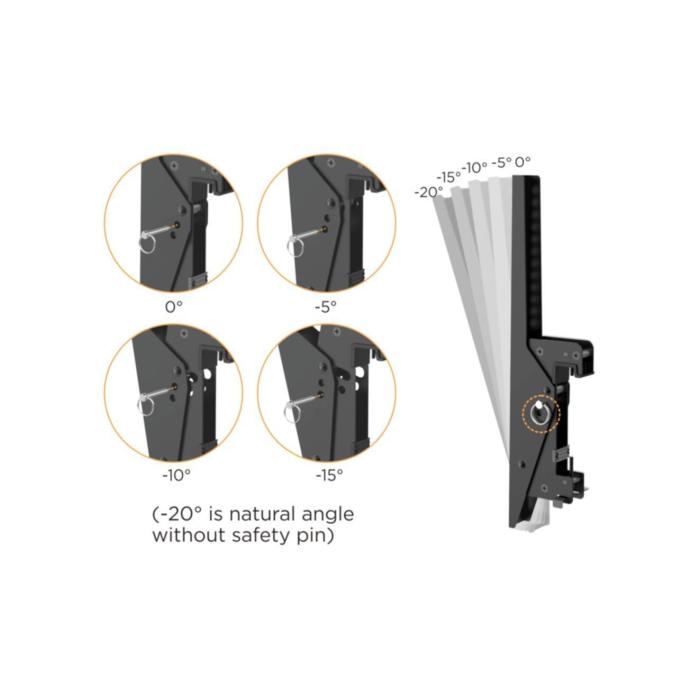

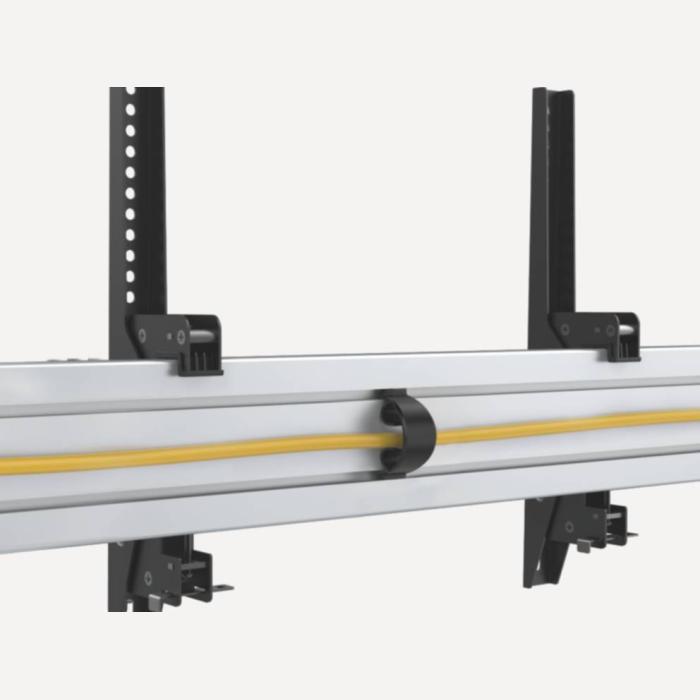

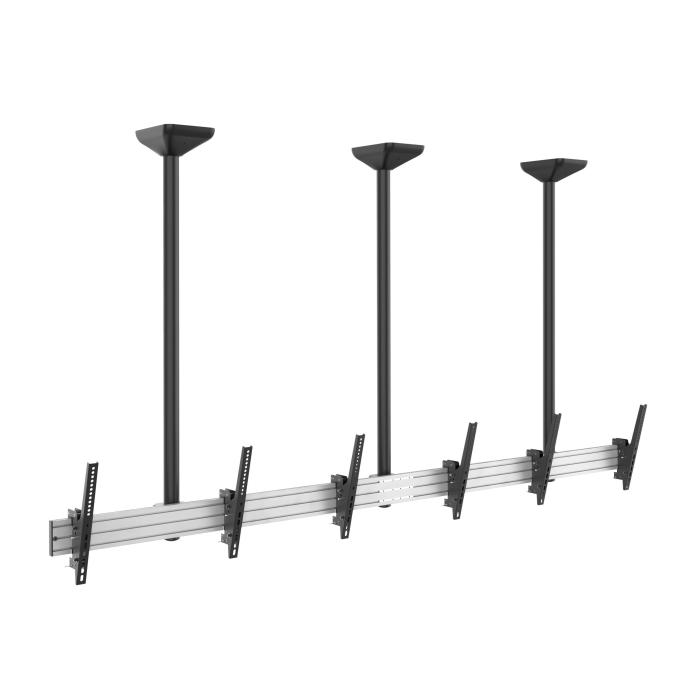

The EQUIP ceiling mount for triple screens allows three monitors measuring between 114.3 cm (45") and 127 cm (50") to be installed on a single suspended structure, with a maximum weight capacity of 150 kg. It is compatible with mounting interfaces from 200 x 200 to 600 x 400 mm, covering the most common large-screen formats. The maximum distance from the wall reaches 158 cm, so you can angle the assembly towards the viewing area without the panels being too close to the wall. Its adjustable tilt system, with an angle of 0 to -20°, helps correct the viewing angle when the screens are positioned above eye level. Integrated cable management allows cables to be routed through the mount itself and keeps the installation tidy. The housing combines aluminium, plastic and steel, in black and silver, with a weight of 39 kg.
Specifications
Mounting
- Maximum weight capacity: 150 kg
- Minimum screen size: 114.3 cm (45")
- Number of displays supported: 3
- Maximum screen size: 127 cm (50")
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400
- Mounting type: Ceiling
Ergonomics
- Tilt adjustment: Yes
- Tilt angle range: 0 - -20°
- Cable management: Yes
- Distance to the wall (max): 158 cm
Design
- Product colour: Black, Silver
- Housing material: Aluminium, Plastic, Steel

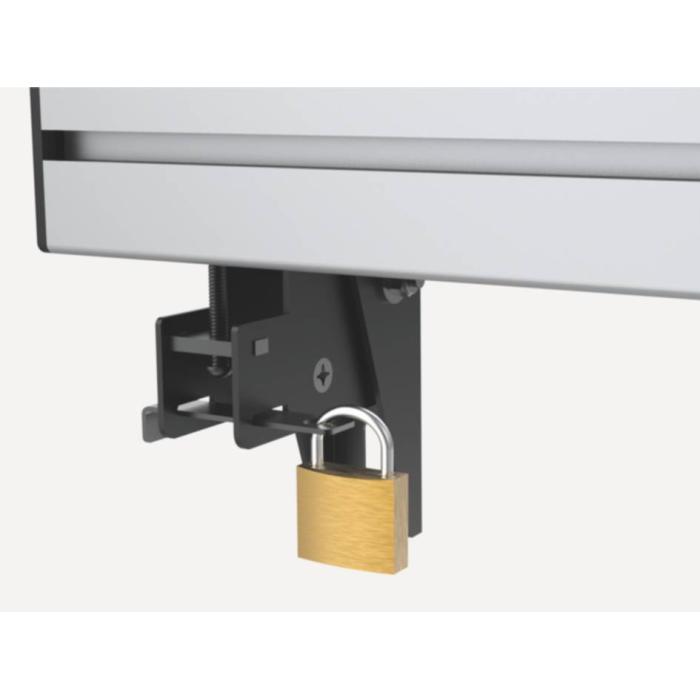

- Anti-theft function: Yes
Technical details
- Country of origin: China
Packaging content
- Screws included: Yes
- Manual: Yes
Weight & dimensions
- Width: 3009 mm
- Depth (min): 28 cm
- Height: 1080 mm
- Weight: 39 kg
Packaging data
- Package width: 515 mm
- Package depth: 200 mm
- Package height: 1585 mm
- Package weight: 44.6 kg
- Package type: Box
Logistics data
- Master (outer) case width: 515 mm
- Master (outer) case length: 200 mm
- Master (outer) case height: 1585 mm
- Master (outer) case gross weight: 44.6 kg
- Products per master (outer) case: 1 pc(s)
- Harmonized System (HS) code: 85299097
