Description

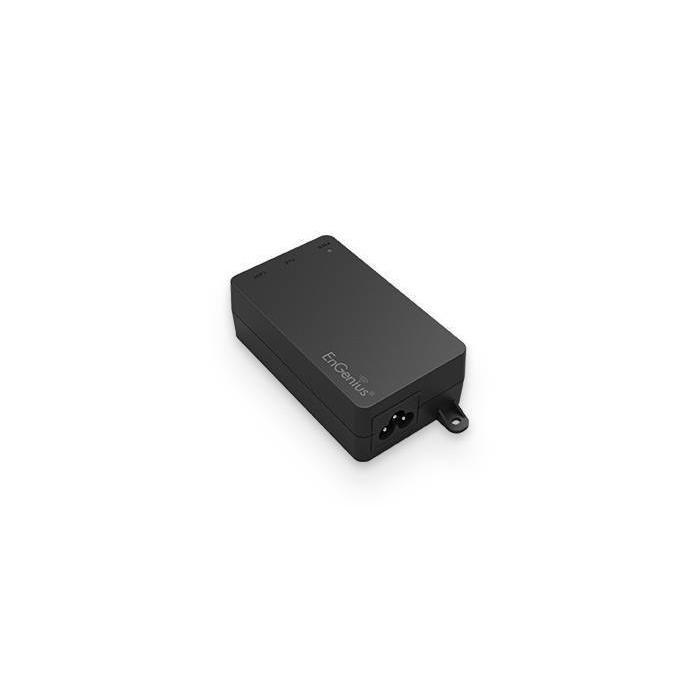

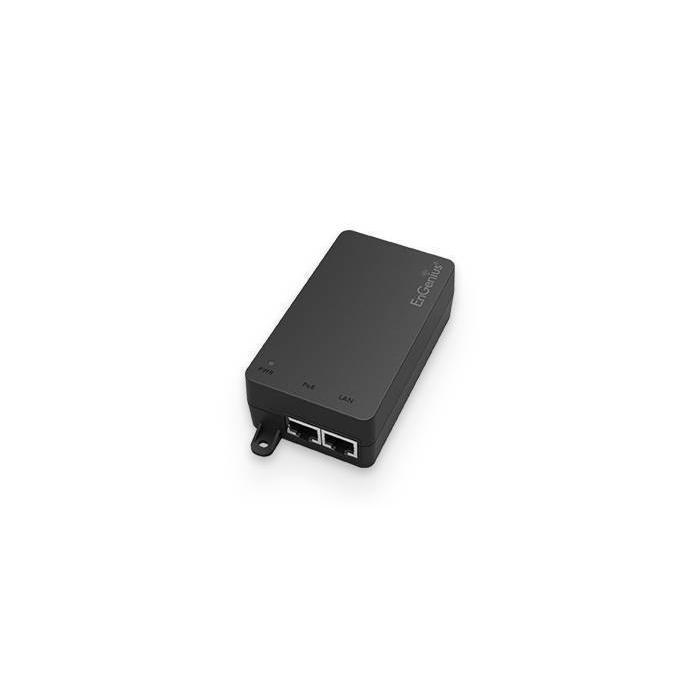

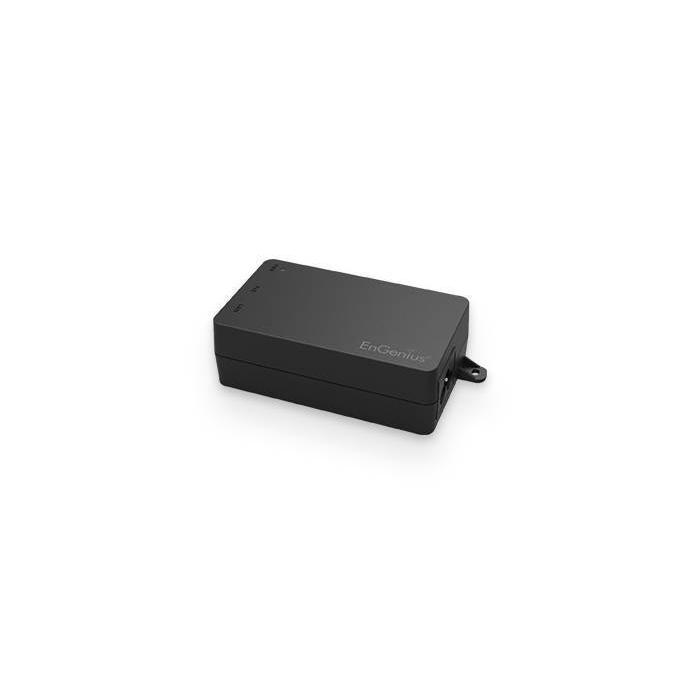

The EnGenius EPA5006GR PoE adapter and injector, in black, powers network devices through the Ethernet cable itself with a 54 V output and 32.8 W of power. It features a Gigabit Ethernet interface compatible with speeds of 10, 100 and 1000 Mbit/s, and supports an input voltage of 100 to 240 V with a frequency of 50 to 60 Hz. Its protection functions against overcurrent, overvoltage and short circuit, together with 4 kV surge protection, contribute to stable operation. The power LED indicators allow the status of the equipment to be checked at a glance, and its wall mounting facilitates installation in tight spaces. Weighing 144 g and measuring 100 x 33.4 x 58.4 mm, it is compact and easy to place. It supports operating temperatures of 0 to 40 °C and storage temperatures of -20 to 70 °C, and has CB, CE, FCC and UL certifications.
Specifications
Network
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Features
- Product colour: Black
- Wall mountable: Yes
- LED indicators: Power
- Pin assignment & polarity: Pin1(Rx+)&Pin2(Rx-), Pin3(Tx+)&Pin6(Tx-), Pin4(Vdc+)&Pin5(Vdc+), Pin7(Vdc-)&Pin8(Vdc-)
- Power protection features: Over current, Over voltage, Short circuit
Power
- Power over Ethernet (PoE) voltage: 54 V
- Output power: 32.8 W
- Input voltage: 100 - 240 V
- Input frequency: 50 - 60 Hz
- Input current: 0.8A @ 120V AC, 0.4A @ 240V AC
- Surge protection voltage: 4 kV
Certificates
- Compliance certificates: CB, CE, Federal Communications Commission (FCC), UL
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
- Width: 100 mm
- Depth: 58.4 mm
- Height: 33.4 mm
- Weight: 144 g
Logistics data
- Warranty period: 1 year(s)
