Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black

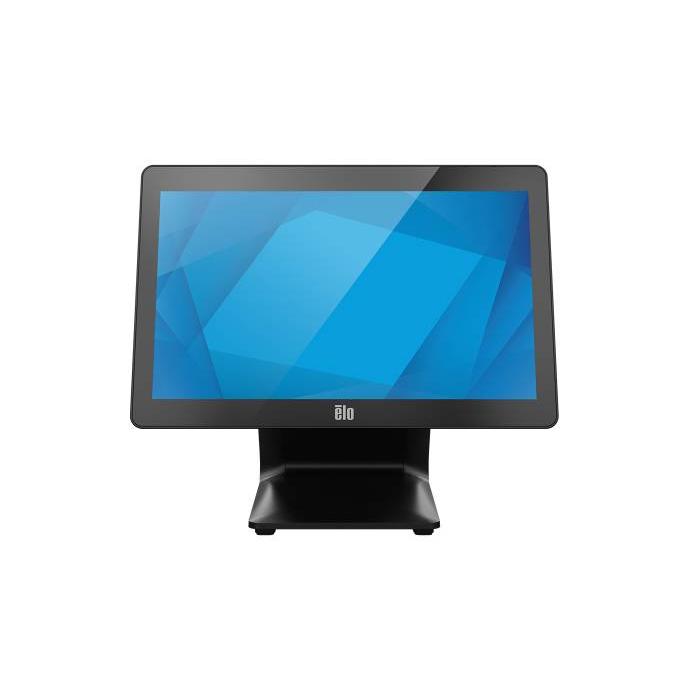

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels

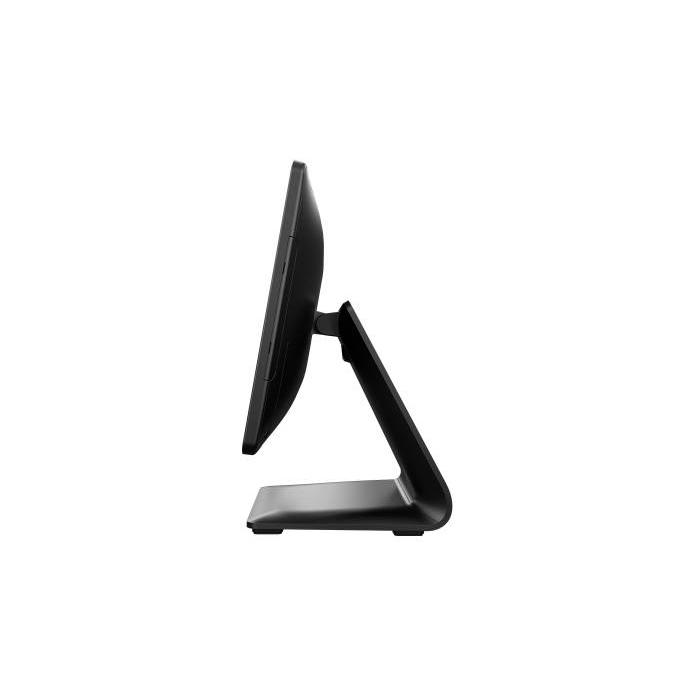

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels — image 2 of 5

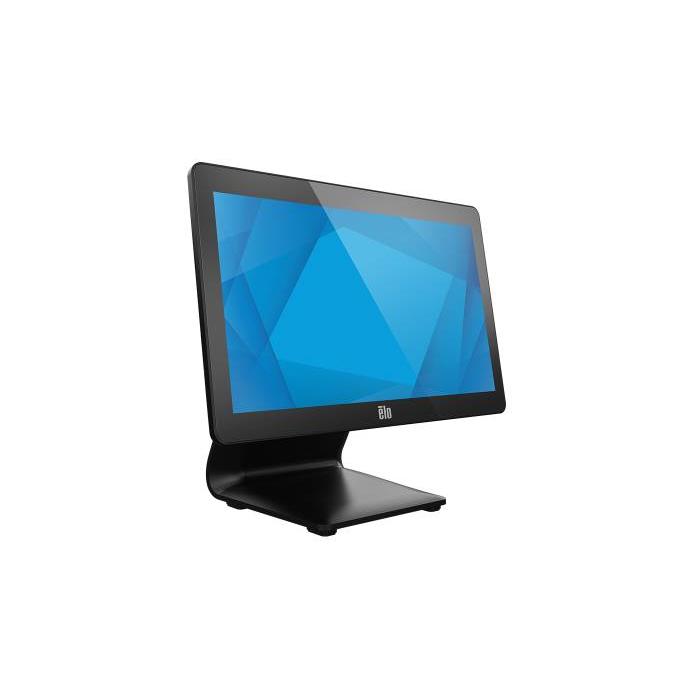

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels — image 3 of 5

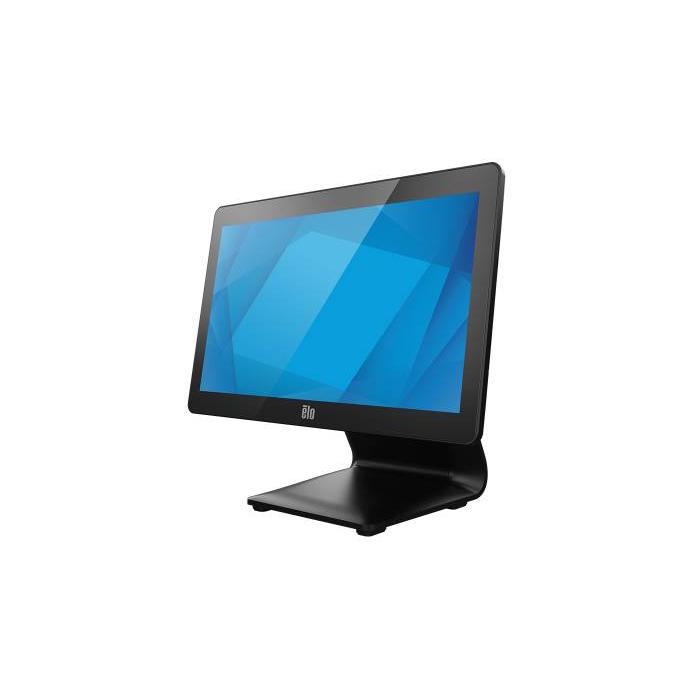

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels — image 4 of 5

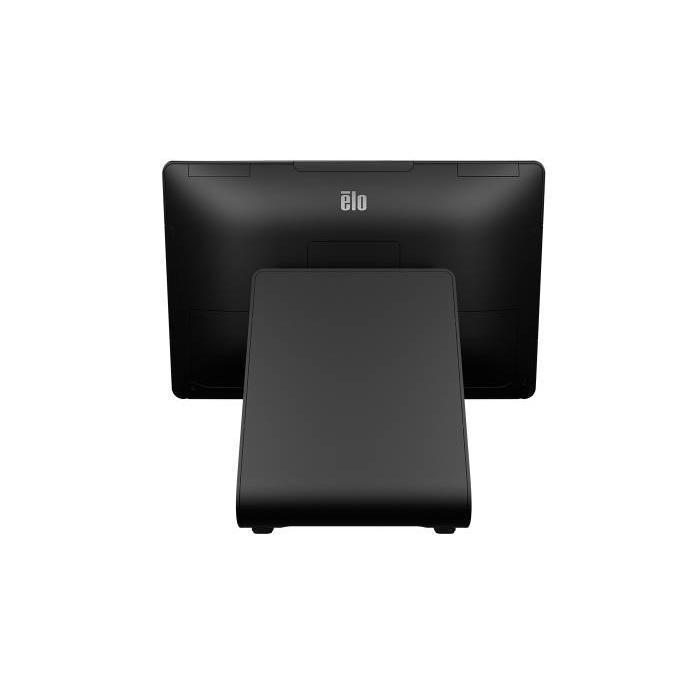

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels — image 5 of 5

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black

More info

Brand: ELO TOUCH SOLUTIONS

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 110025 PRC: 590669 EAN: 843173154114 PN: e706223

Description

This Elo Touch Solutions I-Series E706223 is an all-in-one unit with a 15.6-inch touchscreen and Full HD resolution, finished in black, integrating an Intel Core i5-1245UL processor with ten cores and 8 GB of DDR5 RAM. Its 128 GB SSD storage is complemented by Wi-Fi 6 connectivity, and the Windows 10 IoT Enterprise operating system comes preinstalled for professional environments. The LCD screen offers a brightness of 350 cd/m² with a 16:9 aspect ratio, while the processor reaches a maximum turbo frequency of 4.4 GHz on its performance cores. This model is designed for point-of-sale or kiosk applications, with a base power of 15 W that can scale up to 28 W under peak loads.

Specifications

Display

Display brightness: 350 cd/m²
Panel type: LCD
Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Touchscreen: Yes
HD type: Full HD
Native aspect ratio: 16:9

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor model: i5-1245UL
Processor cores: 10
Processor frequency: 1.6 GHz
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core boost frequency: 4.4 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 28 W

Memory

Internal memory: 8 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 32 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 4800 MHz
Memory layout (slots x size): 1 x 8 GB
Memory form factor: DIMM/SO-DIMM

Storage

Total storage capacity: 128 GB
Storage media: SSD
Number of storage drives installed: 1
Total SSDs capacity: 128 GB
Number of SSDs installed: 1
SSD capacity: 128 GB
Optical drive type: No

Graphics

Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Iris Xe Graphics
On-board graphics card model: Intel Iris Xe Graphics

Audio

Built-in speaker(s): Yes
Number of speakers: 2
RMS rated power: 4 W

Camera

Built-in camera: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.2
