Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black

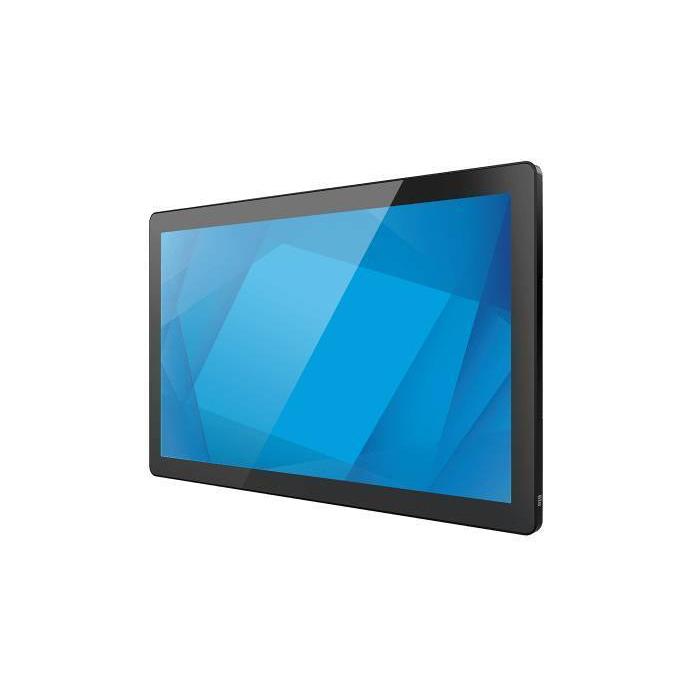

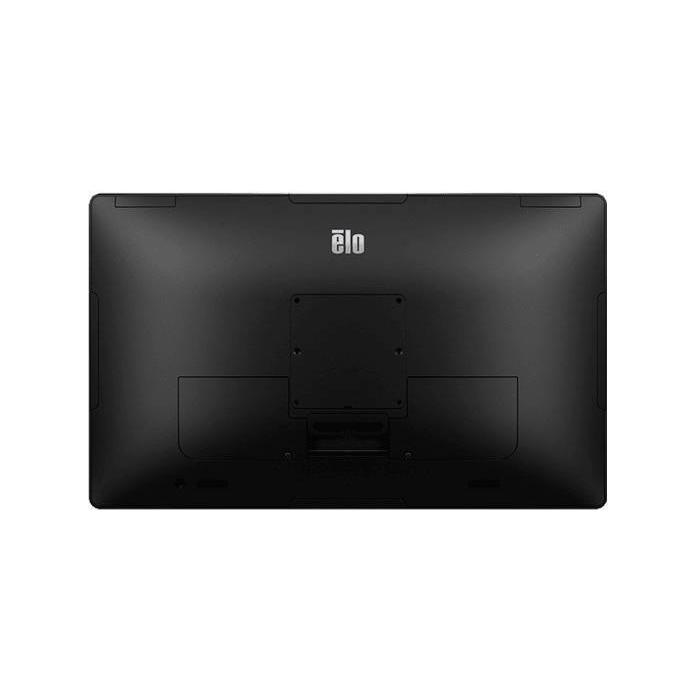

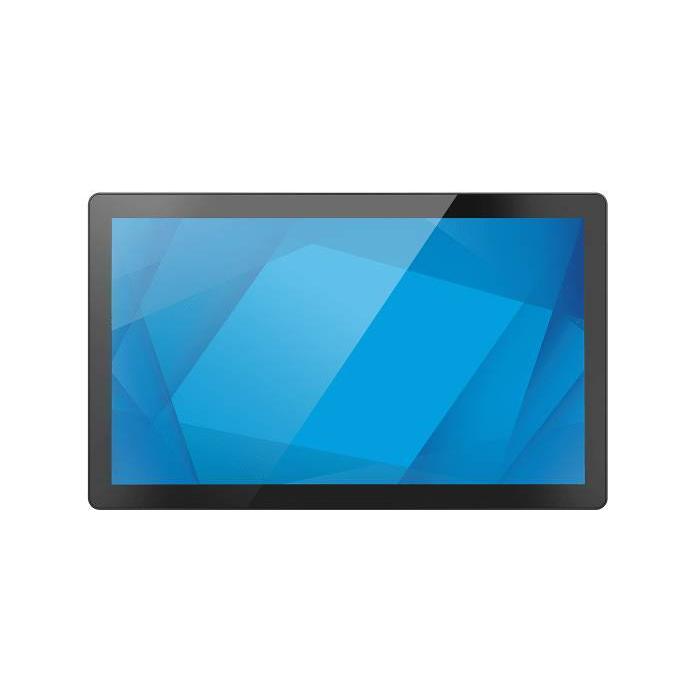

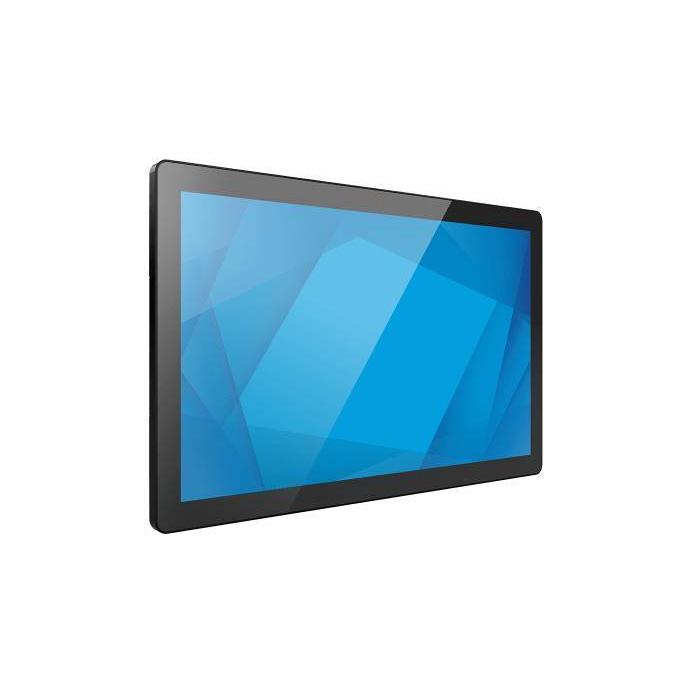

Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels

Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels — image 2 of 4

Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels — image 3 of 4

Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels — image 4 of 4

Elo Touch Solutions I-Series E607709 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black

More info

Brand: ELO TOUCH SOLUTIONS

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 114505 PRC: 551602 EAN: 843173153339 PN: E607709

Description

This Elo Touch Solutions I-Series E607709 is a 21.5-inch all-in-one PC with a Full HD touchscreen of 1920 x 1080 pixels, finished in black. It features an Intel Core i5-1245UL processor with 10 cores and 12 MB of cache, along with 8 GB of DDR5 RAM and a 128 GB SSD for storage. Its LCD screen offers a brightness of 250 cd/m² and a 16:9 aspect ratio, while connectivity includes Wi-Fi 6 (802.11ax). This unit runs on Windows 10 IoT Enterprise, designed for professional environments requiring an integrated and touch-based solution.

Specifications

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
Touchscreen: Yes
HD type: Full HD
Native aspect ratio: 16:9
Display brightness: 250 cd/m²
Panel type: LCD

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor model: i5-1245UL
Processor cores: 10
Processor frequency: 1.6 GHz
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 2.5 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 28 W

Memory

Internal memory: 8 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 32 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 4800 MHz
Memory layout (slots x size): 1 x 8 GB
Memory form factor: DIMM/SO-DIMM

Storage

Total storage capacity: 128 GB
Storage media: SSD
Total SSDs capacity: 128 GB
Number of SSDs installed: 1
SSD capacity: 128 GB
Optical drive type: No

Graphics

Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Iris Xe Graphics
On-board graphics card model: Intel Iris Xe Graphics

Audio

Built-in speaker(s): Yes
Number of speakers: 2
RMS rated power: 4 W

Camera

Built-in camera: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.2

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Headphone outputs: 1
DC-in jack: Yes

Design

Product colour: Black
On/off button: Yes

Performance

Product type: All-in-One PC
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
HDD user password: Yes

Software

Operating system installed: Windows 10 IoT Enterprise

Power

AC adapter power: 180 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 24 V

Weight & dimensions

Width (with stand): 525.8 mm
Depth (with stand): 39.6 mm
Height (with stand): 321.1 mm
Weight (with stand): 6.1 kg
Package width: 643 mm
Package depth: 214 mm
Package height: 439 mm
Package weight: 7.6 kg

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: RoHS
Certification: Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S
