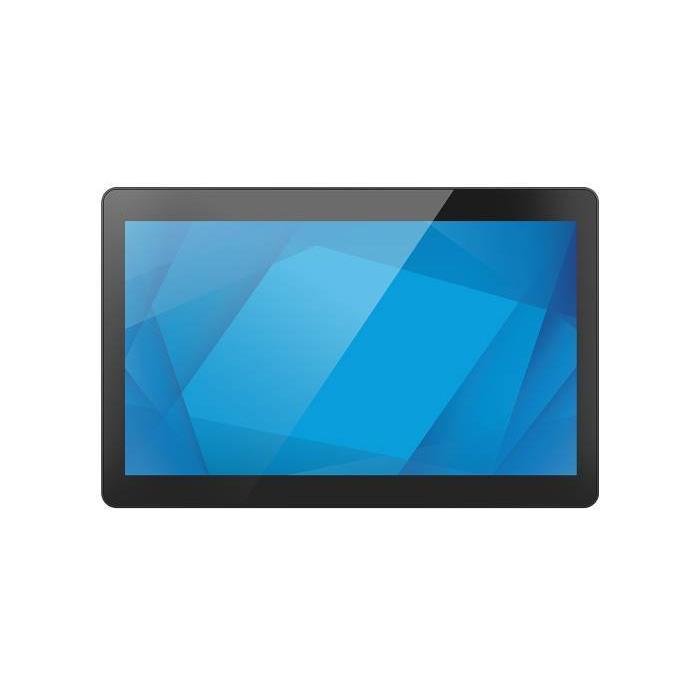

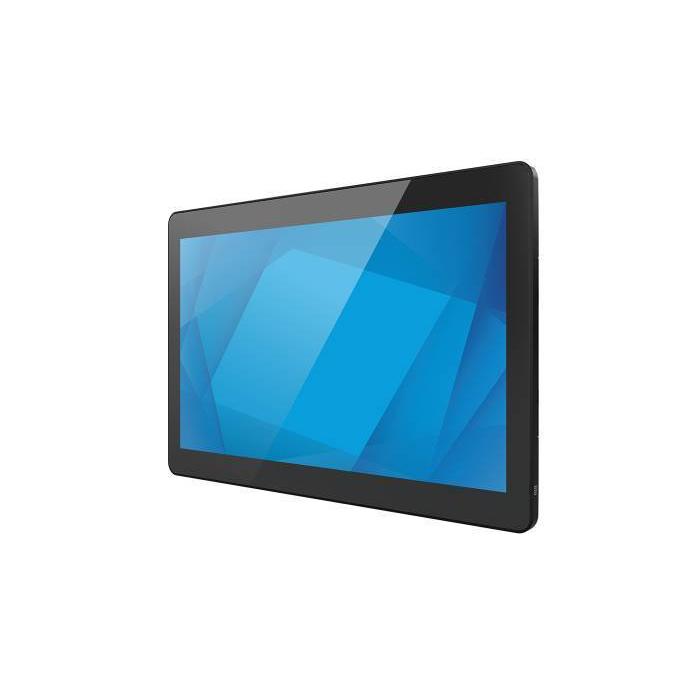

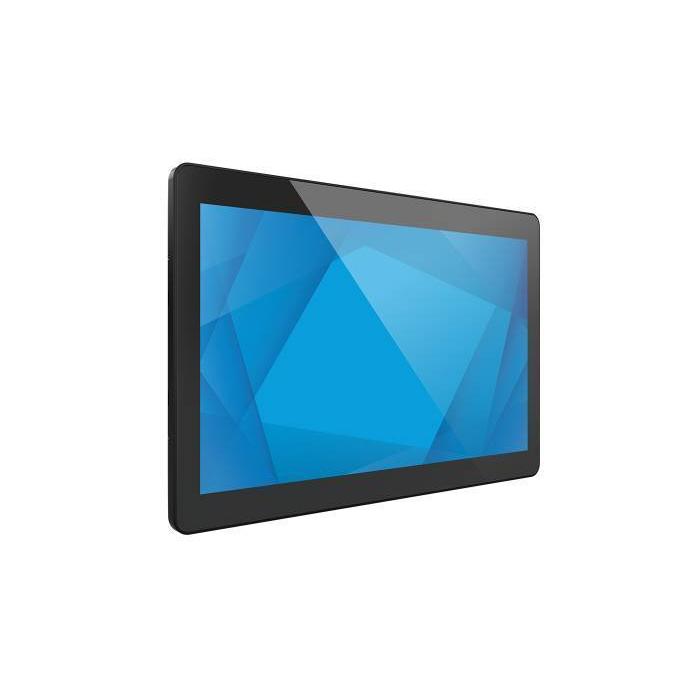

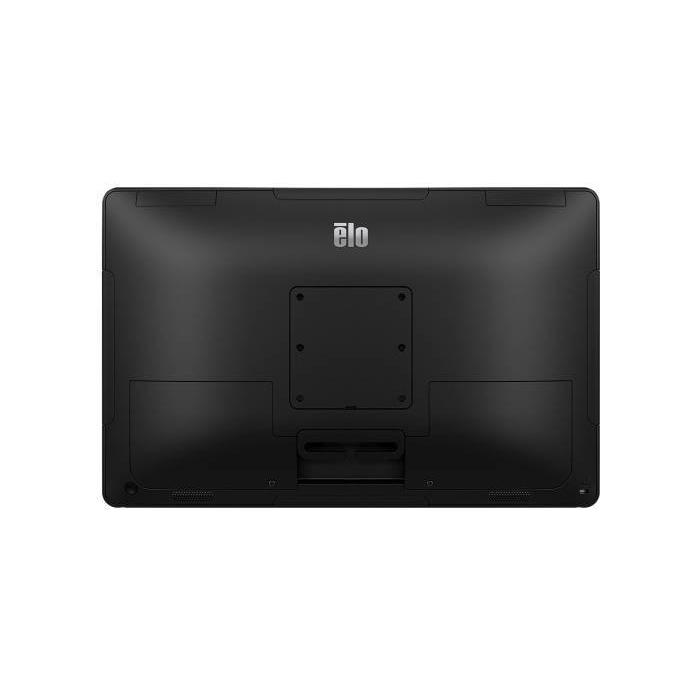

Elo Touch Solutions I-Series E606323 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Black
More info
Brand: ELO TOUCH SOLUTIONS
Not avaliableStock available: 0 units.
Unavailable
SKU:
117539
PRC:
581828
EAN:
843173153261
PN:
E606323
Description
The Elo Touch Solutions I-Series E606323 all-in-one integrates a 15.6-inch LCD touchscreen with Full HD 1920 x 1080 resolution and a 16:9 aspect ratio, offering a brightness of 350 cd/m². Its Intel Core i5-1245UL processor with 10 cores reaches a maximum turbo frequency of 4.4 GHz, accompanied by 8 GB of DDR5-SDRAM memory and a 128 GB SSD for quick boot-up. It includes Wi-Fi 6 (802.11ax) connectivity and comes in black, with a design intended for professional environments requiring direct touch interaction. This unit combines efficient power and versatility in a compact format ideal for counters or workstations.
Specifications
Display
- Display diagonal: 39.6 cm (15.6")
- Display resolution: 1920 x 1080 pixels
- Touchscreen: Yes
- HD type: Full HD
- Native aspect ratio: 16:9
- Display brightness: 350 cd/m²
- Panel type: LCD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor model: i5-1245UL
- Processor cores: 10
- Processor frequency: 1.6 GHz
- Performance cores: 2
- Efficient cores: 8
- Performance-core Max Turbo Frequency: 4.4 GHz
- Efficient-core Max Turbo Frequency: 2.5 GHz
- Performance-core boost frequency: 4.4 GHz
- Processor cache: 12 MB
- Processor cache type: Smart Cache
- Processor base power: 15 W
- Maximum turbo power: 28 W
Memory
- Internal memory: 8 GB
- Internal memory type: DDR5-SDRAM
- Maximum internal memory: 32 GB
- Memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 1 x 8 GB
- Memory form factor: DIMM/SO-DIMM
Storage
- Storage media: SSD
- Number of storage drives installed: 1
- Total SSDs capacity: 128 GB
- Number of SSDs installed: 1
- SSD capacity: 128 GB
- Optical drive type: No
- Total storage capacity: 128 GB
Graphics
- Discrete graphics card: No
- Discrete graphics card model: Not available
- On-board graphics card: Yes
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel Iris Xe Graphics
- On-board graphics card model: Intel Iris Xe Graphics
Audio
- Built-in speaker(s): Yes
- Number of speakers: 2
- RMS rated power: 4 W
Camera
- Built-in camera: No
Network
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Bluetooth: Yes
- Bluetooth version: 5.2
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Headphone outputs: 1
- DC-in jack: Yes
Design
- Product colour: Black
- On/off button: Yes
Performance
- Product type: All-in-One PC
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
- HDD user password: Yes
Software
- Operating system installed: No
Power
- AC adapter power: 180 W
- AC adapter frequency: 50 - 60 Hz
- AC adapter input voltage: 100 - 240 V
- AC adapter output voltage: 24 V
Weight & dimensions
- Width (with stand): 384.1 mm
- Depth (with stand): 37.2 mm
- Height (with stand): 147.7 mm
- Weight (with stand): 3.1 kg
- Package width: 497 mm
- Package depth: 345 mm
- Package height: 197 mm
- Package weight: 5 kg
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 5 - 95%
Certificates
- Certification: Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S
