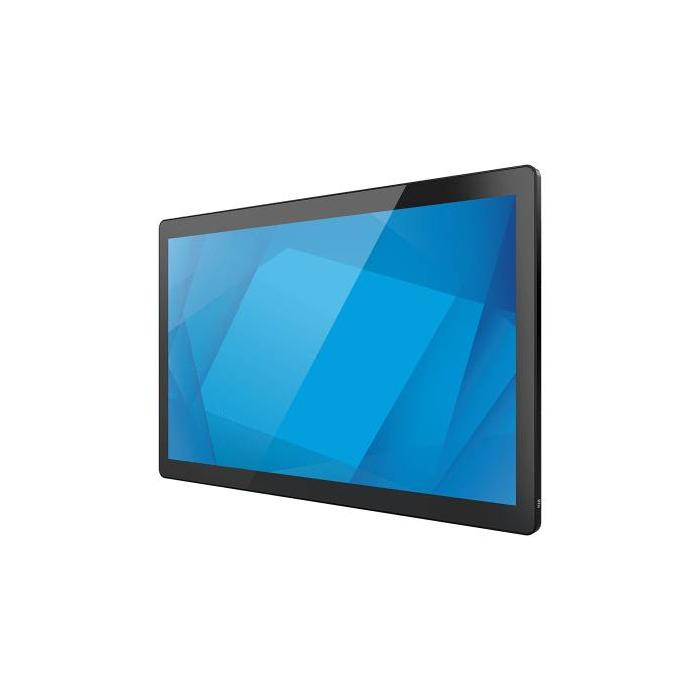

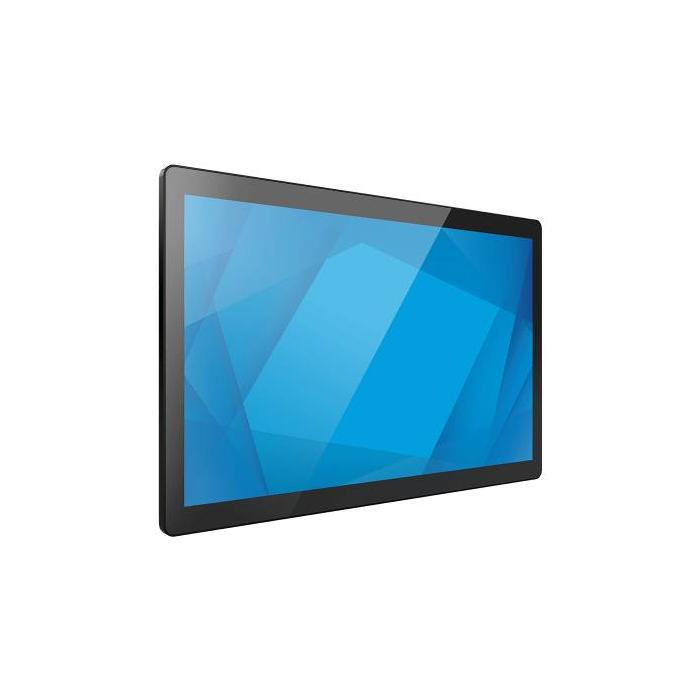

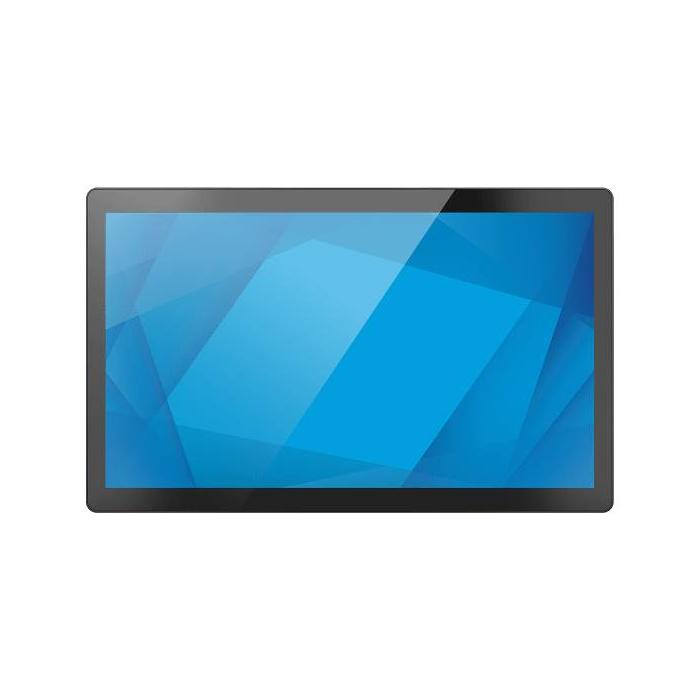

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR5-SDRAM 128 GB SSD Windows 10 Wi-Fi 6 (802.11ax) Black

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB — image 2 of 6

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB — image 3 of 6

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB — image 4 of 6

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB — image 5 of 6

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB — image 6 of 6

Elo Touch Solutions I-Series 3.0 Intel Core 5 i5-1245UL 60.5 cm (23.8'') 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR5-SDRAM 128 GB SSD Windows 10 Wi-Fi 6 (802.11ax) Black

More info

Brand: ELO TOUCH SOLUTIONS

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 114911 PRC: 594703 EAN: 843173153391 PN: E608847

Description

This Elo Touch Solutions AiO integrates a 23.8-inch Full HD touch panel with multi-touch technology, ideal for direct interaction in work and point-of-sale environments. Its TFT screen with LED backlighting offers 178-degree viewing angles and a 16 ms response time, while the 12th-generation Intel Core i5 processor, with 8 efficiency cores and 2 performance cores, ensures smooth performance in everyday tasks. Equipped with 8 GB of DDR5 memory and a 128 GB SSD, it boots and opens applications quickly; Wi-Fi 6 connectivity ensures fast and stable networks. With Windows 10 preinstalled and a black design, this all-in-one unit combines touch functionality and balanced performance for professional use.

Specifications

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
Touchscreen: Yes
HD type: Full HD
LED backlight: Yes
Touch technology: Multi-touch
Native aspect ratio: 16:9
Display brightness: 250 cd/m²
Panel type: TFT
Response time: 16 ms
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Screen shape: Flat

Processor

Processor manufacturer: Intel
Processor family: Intel Core 5
Processor generation: 12th gen Intel® Core™ i5
Processor model: i5-1245UL
Processor cores: 10
Processor threads: 12
Processor boost frequency: 4.4 GHz
Processor frequency: 1.6 GHz
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 2.5 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 15 W

Memory

Internal memory: 8 GB
Internal memory type: DDR5-SDRAM
Maximum internal memory: 32 GB
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 4800 MHz
Memory layout (slots x size): 1 x 8 GB

Storage

Total storage capacity: 128 GB
Storage media: SSD
Number of storage drives installed: 1
Number of storage drives supported: 1
Total SSDs capacity: 128 GB
Number of SSDs installed: 1
SSD capacity: 128 GB
SSD interface: M.2
NVMe: Yes
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board graphics card model: Intel® UHD Graphics

Audio

Built-in speaker(s): Yes
Number of speakers: 2
RMS rated power: 4 W

Camera

Built-in camera: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.3

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Headphone outputs: 1

Design

Product colour: Black
Wall mountable: Yes
VESA mounting: Yes
Panel mounting interface: 100 x 100 mm

Performance

Product type: All-in-One PC
Market positioning: Business
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Software

Operating system installed: Windows 10

Power

AC adapter power: 180 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 24 V
Power consumption (typical): 56 W
Power consumption (standby): 5 W
Power consumption (off): 0.5 W

Pen

Pen included: No

Weight & dimensions

Width (with stand): 571.2 mm
Depth (with stand): 39 mm
Height (with stand): 352 mm
Weight (with stand): 6.7 kg
Package width: 697 mm
Package depth: 529 mm
Package height: 188 mm
Package weight: 9 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC
Certification: UL/cUL, FCC, IC, CE, CB
