Elo Touch Solutions ECMG4 2.7 GHz Intel® Core™ i5 256 GB SSD 8 GB
More info
Brand: ELO TOUCH SOLUTIONS
876.00 €Stock available: 0 units.
Unavailable
SKU:
94086
PRC:
375284
EAN:
843173102832
PN:
e228087
Description

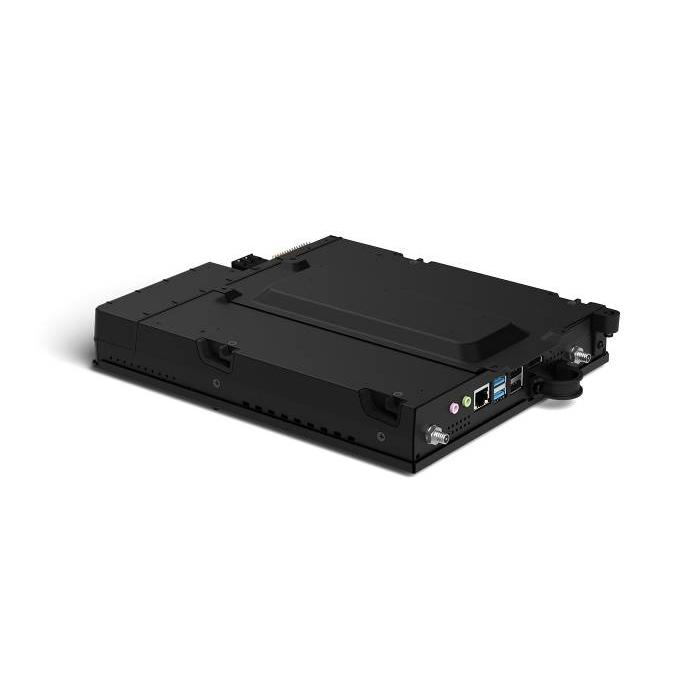

The rack-mountable or panel-mountable Elo Touch Solutions ECMG4 integrates a seventh-generation Intel® Core™ i5-7500T processor with four cores and four threads, reaching a turbo frequency of 3.3 GHz and a base frequency of 2.7 GHz, along with 8 GB of DDR4-SDRAM memory at 2400 MHz in a single-module configuration. Its 256 GB SSD storage ensures fast data access for daily management tasks in commercial or industrial environments. With two expandable SO-DIMM slots, this system offers room for future memory upgrades without the need for additional equipment. Designed for integration into racks or flush-mounted surfaces, it presents a compact solution that facilitates installation in confined spaces.
Specifications
Processor
- Processor generation: 7th gen Intel® Core™ i5
- Processor frequency: 2.7 GHz
- Processor family: Intel® Core™ i5
- Processor model: i5-7500T
- Processor cores: 4
- Processor boost frequency: 3.3 GHz
- Processor cache: 6 MB
- Processor cache type: Smart Cache
- System bus rate: 8 GT/s
- Processor threads: 4
- Bus type: DMI3
- Configurable TDP-down frequency: 1.7 GHz
- Conflict-Free processor: Yes
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 64 GB
- Memory layout (slots x size): 1 x 8 GB
- Memory slots: 2x SO-DIMM
- Memory clock speed: 2400 MHz
Storage
- Total storage capacity: 256 GB
- Storage media: SSD
- Number of storage drives installed: 1
- Card reader integrated: No
- SSD capacity: 256 GB
Graphics
- On-board graphics card: Yes
- On-board graphics card model: Intel® HD Graphics 630
- Discrete graphics card: No
Network
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Ethernet LAN: Yes
- Bluetooth: Yes
- Bluetooth version: 5.0

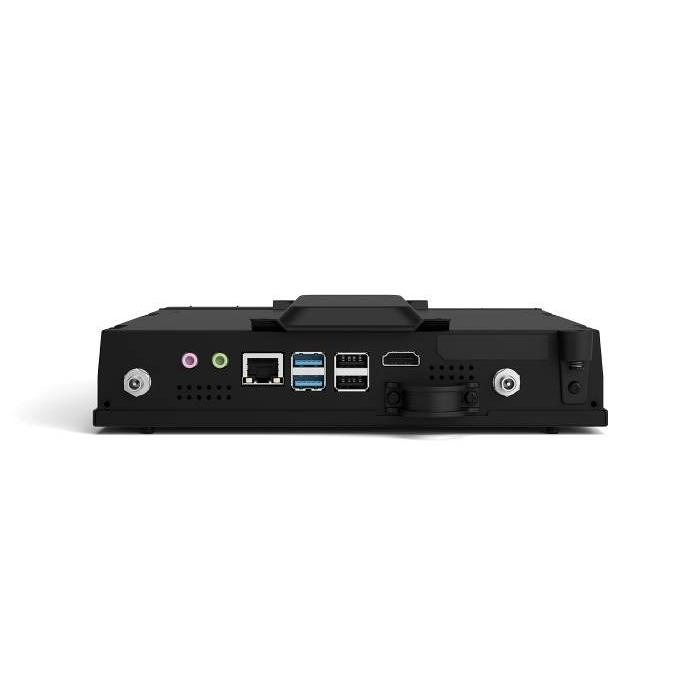

Ports & interfaces
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Line-out: Yes
- Microphone in: Yes
Performance
- Motherboard chipset: Intel® H110
- Product colour: Black
- BIOS type: AMI
- Number of antenna connectors: 2
Software
- Operating system installed: Windows 10
Processor special features
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel Trusted Execution Technology: Yes
- Intel Enhanced Halt State: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Embedded options available: Yes
- Intel TSX-NI: Yes
- Intel 64: Yes
- Intel Stable Image Platform Program (SIPP): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Clear Video Technology: Yes
- Intel Software Guard Extensions (Intel SGX): Yes
- Intel Identity Protection Technology version: 1.00
- Intel Secure Key Technology version: 1.00
- Intel Virtualization Technology (VT-x): Yes
- Intel TSX-NI version: 1.00
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Certificates
- Certification: UL/cUL, CB, FCC, CE, AS, NZS, VCCI
Weight & dimensions
- Width: 281.1 mm
- Depth: 43 mm
- Height: 208.2 mm
- Weight: 2.1 kg
- Package width: 730 mm
- Package depth: 350 mm
- Package height: 520 mm
- Package weight: 3.3 kg
Logistics data
- Harmonized System (HS) code: 84713000
