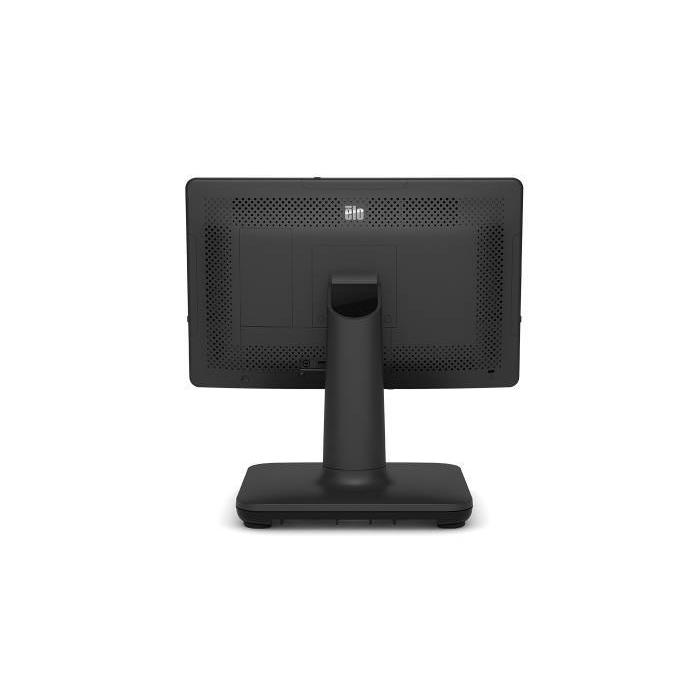

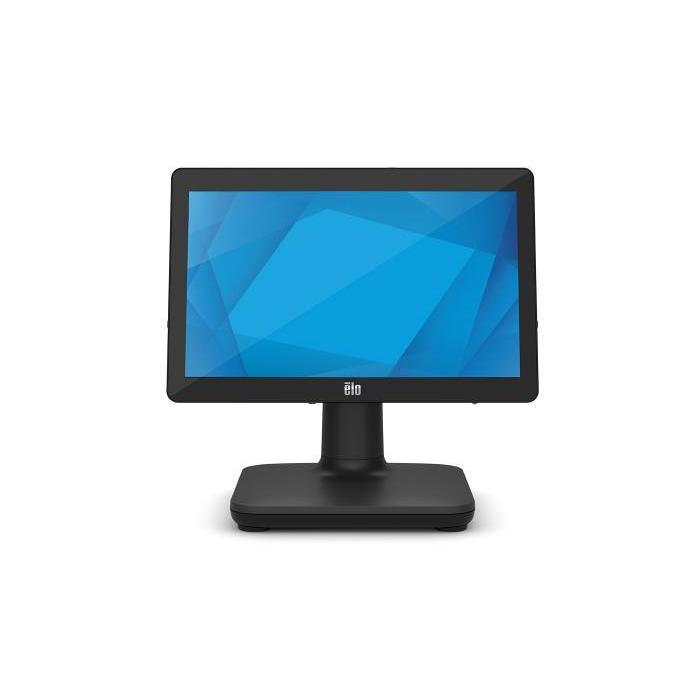

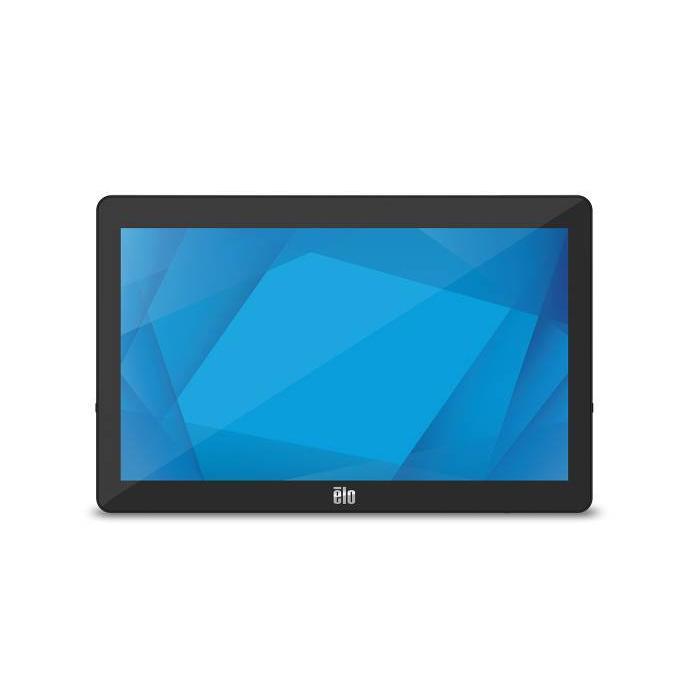

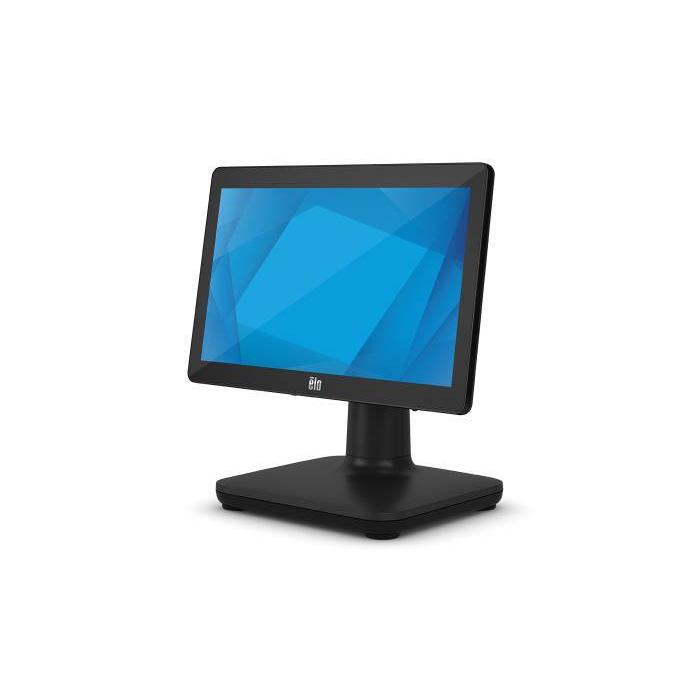

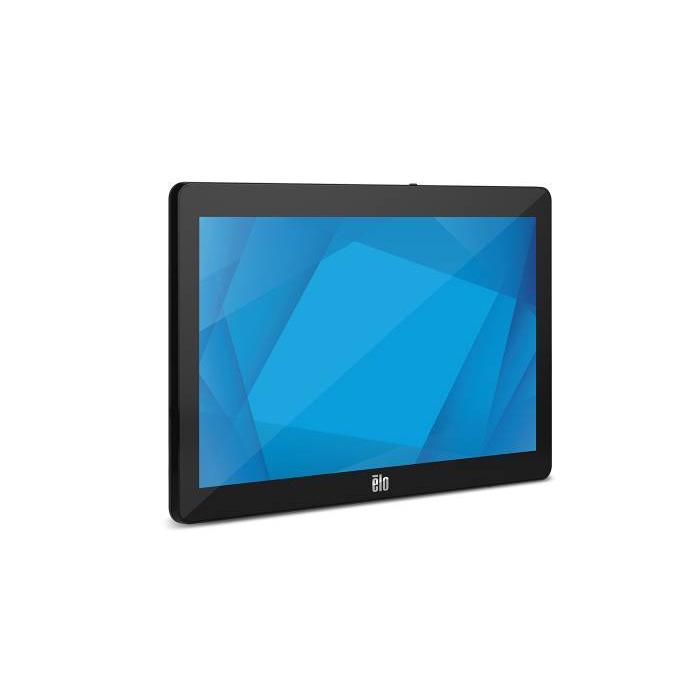

Name: Elo Touch Solutions E936163 POS system i5-8500T 2.1 GHz All-in-One 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen Black
Brand: ELO TOUCH SOLUTIONS
Availability: OutOfStock

Elo Touch Solutions E936163 POS system i5-8500T 2.1 GHz All-in-One 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen Black

Not avaliable

Amount

Brand: ELO TOUCH SOLUTIONS

SKU: 92007 PRC: 361383 EAN: 843173116020 PN: e936163

Description

Specifications

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Touchscreen: Yes
Display type: LCD
Display brightness: 255 cd/m²
Touchscreen technology: Projected capacitive system
Contrast ratio (typical): 700:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 160°
Response time: 25 ms
Aspect ratio: 16:9
Display number of colours: 262144 colours

Processor

Processor family: Intel® Core™ i5
Processor generation: 8th gen Intel® Core™ i5
Processor model: i5-8500T
Processor cores: 6
Processor threads: 6
Processor frequency: 2.1 GHz
Processor cache: 9 MB
System bus rate: 8 GT/s
Motherboard chipset: Intel Q370

Memory

Internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 32 GB
Number of memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 2400 MHz

Storage

Total storage capacity: 128 GB
Storage media type: SSD
Storage media: SSD
Number of storage drives supported: 1
SSD capacity: 128 GB
SSD interface: Serial ATA
SSD form factor: M.2

Graphics

Graphics card manufacturer: Intel
Graphics card: UHD Graphics 630

Features

Certification: UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Multimedia

Built-in speaker(s): Yes
Number of speakers: 2

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Bluetooth: Yes
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Ports & interfaces

Serial ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Powered USB: Yes
Line-out: Yes

Design

Chassis type: All-in-One
Product colour: Black

Software

Operating system installed: Windows 10

Power

AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Power supply: 180 W
Power consumption (typical): 76 W

Operational conditions

Operating relative humidity (H-H): 0 - 35%
Operating temperature (T-T): -20 - 60 °C
Relative humidity: 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Ergonomics

VESA mounting: Yes
Panel mounting interface: 75 x 75 mm
Mean time between failures (MTBF): 50000 h

Weight & dimensions

Width: 386.2 mm
Depth: 73.3 mm
Height: 248.9 mm
Width (with stand): 386.2 mm
Depth (with stand): 221.2 mm
Height (with stand): 369.3 mm
Weight: 2.9 kg
Weight (with stand): 4.9 kg

Packaging data

Package width: 462 mm
Package depth: 299 mm
Package height: 470 mm
Package weight: 7.3 kg

Logistics data

Harmonized System (HS) code: 84715000

Sustainability

Sustainability certificates: ENERGY STAR
