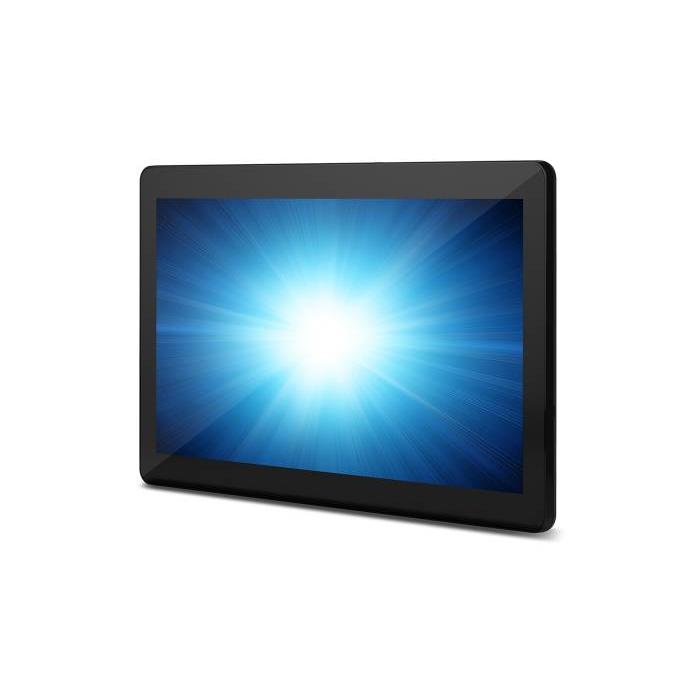

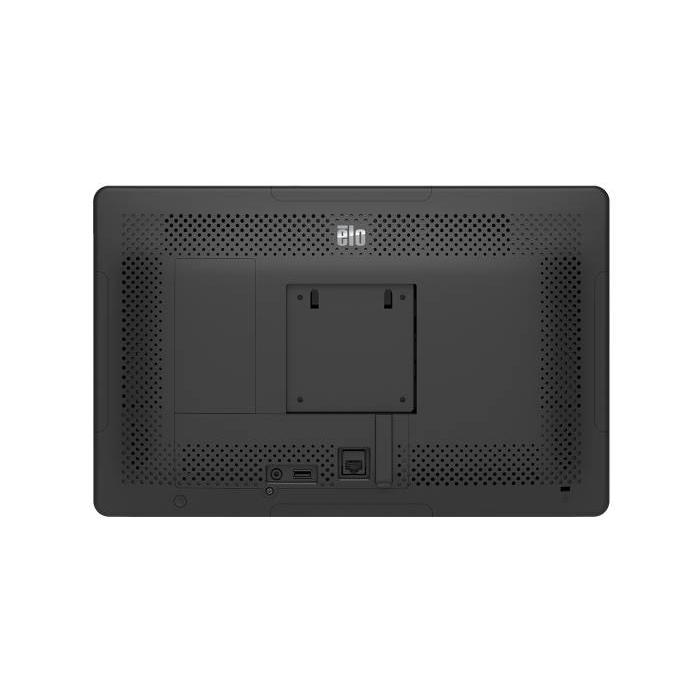

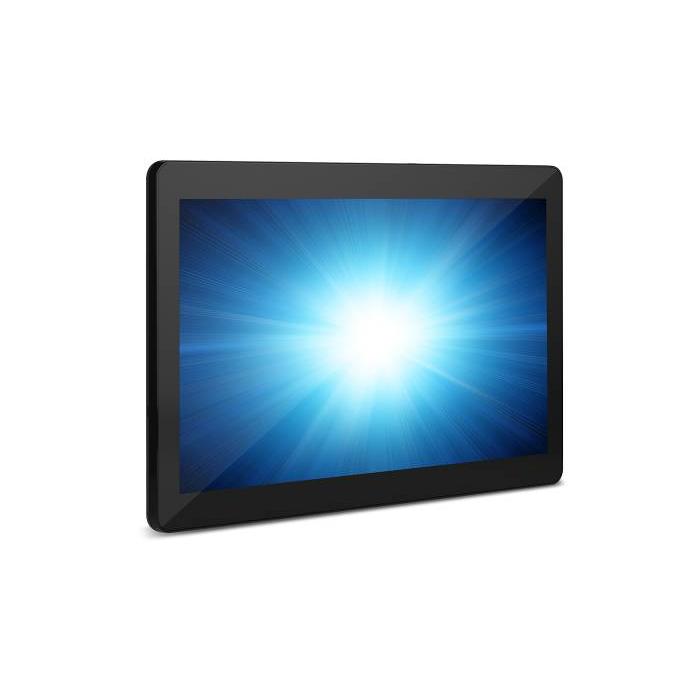

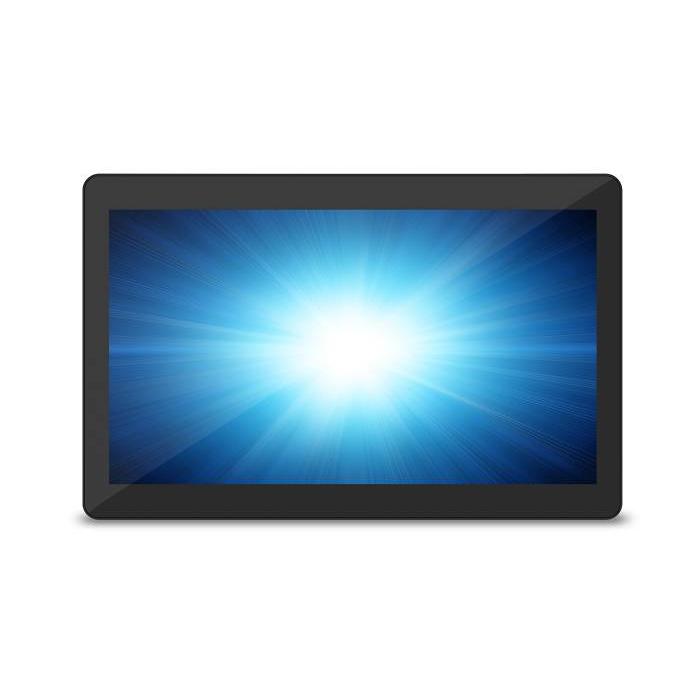

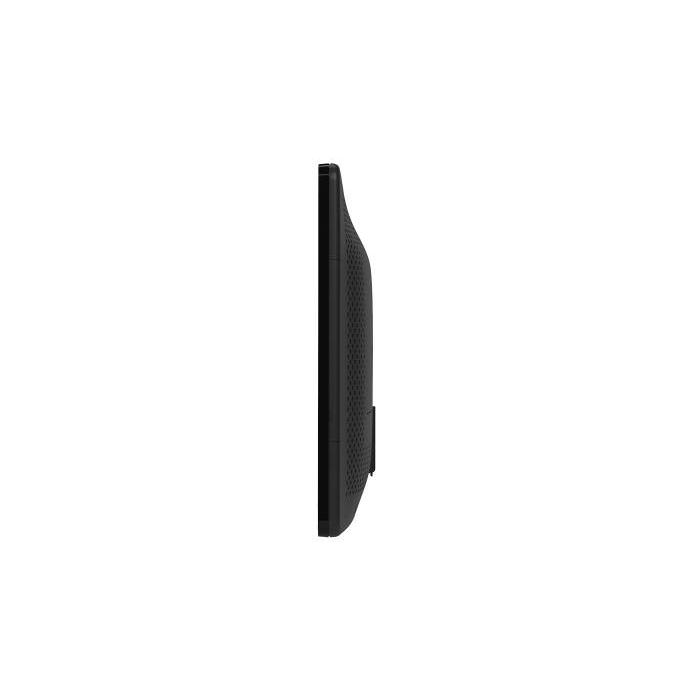

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® Core™ i3 8 GB DDR4-SDRAM 128 GB SSD Black All-in-One tablet PC

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel®

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 2 of 5

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 3 of 5

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 4 of 5

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 5 of 5

Elo Touch Solution I-Series E850204 All-in-One PC/workstation 39.6 cm (15.6'') 1920 x 1080 pixels Touchscreen 8th gen Intel® Core™ i3 8 GB DDR4-SDRAM 128 GB SSD Black All-in-One tablet PC

Elo Touch Solution I-Series E850204, 39.6 cm (15.6"), Full HD, 8th gen Intel® Core™ i3, 8 GB, 128 GB, Windows 10.

More info

Brand: ELO TOUCH SOLUTION

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 83283 PRC: 268335 EAN: 843173112510 PN: e850204

Description

The Elo Touch Solution I-Series E850204 all-in-one is a device with a 39.6 cm (15.6 inch) touchscreen and Full HD resolution of 1920 x 1080 pixels, with a flat format and 16:9 aspect ratio. Its multitouch screen offers a response time of 25 ms and features LED backlighting, which facilitates direct handling on the panel. Inside it integrates an 8th generation Intel Core i3 processor at 3.1 GHz, with four threads and 64-bit support. Accompanying the processor is 8 GB of DDR4-SDRAM memory, with dual-channel configuration and DMI3 bus. Storage is handled by a 128 GB SSD drive. The whole unit comes in black, with dimensions of 384.2 x 246.4 x 43.8 mm and a weight of 2.2 kg, making it suitable for fixed work or customer service locations.

Specifications

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
LED backlight: Yes
3D: No
Touchscreen: Yes
Touch technology: Multi-touch
Aspect ratio: 16:9
Display response rise/fall: 25 ms
Detachable display: No
Screen shape: Flat

Processor

Processor frequency: 3.1 GHz
Processor model: i3-8100T
Processor family: 8th gen Intel® Core™ i3
Processor cores: 4
Processor threads: 4
Processor cache: 6 MB
Processor cache type: Smart Cache
System bus rate: 8 GT/s
64-bit computing: Yes
Motherboard chipset: Intel® H310
PCI Express slots version: 3.0
Processor lithography: 14 nm
Bus type: DMI3
Thermal Design Power (TDP): 35 W
Maximum number of PCI Express lanes: 16
Maximum internal memory supported by processor: 64 GB
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 2400 MHz
Memory bandwidth supported by processor (max): 37.5 GB/s
Memory channels supported by processor: Dual
ECC supported by processor: Yes

Memory

Internal memory: 8 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 2666 MHz
Memory layout (slots x size): 1 x 8 GB

Storage

Total storage capacity: 128 GB
Storage media: SSD
Card reader integrated: No
Total SSDs capacity: 128 GB
Number of SSDs installed: 1
SSD capacity: 128 GB
SSD form factor: M.2

Graphics

Discrete graphics adapter: No
Discrete graphics adapter model: Not available
On-board graphics adapter: Yes
On-board graphics adapter family: Intel® UHD Graphics
On-board graphics adapter model: Intel® UHD Graphics 630
On-board graphics adapter DirectX version: 12.0
On-board graphics adapter OpenGL version: 4.5
On-board graphics adapter 4K support: Yes

Audio

Built-in speaker(s): Yes
Number of speakers: 2
RMS rated power: 2 W

Optical drive

Optical drive type: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Headphone outputs: 1

Design

Product colour: Black
VESA mounting: Yes
Panel mounting interface: 75 x 75 mm

Performance

Product type: All-in-One tablet PC
Trusted Platform Module (TPM): Yes

Software

Operating system installed: Windows 10

Power

AC adapter power: 100 W
AC adapter frequency: 50-60 Hz
AC adapter input voltage: 100 - 240 V

Multimedia

Built-in camera: No

Pen

Pen included: No

Weight & dimensions

Width: 384.2 mm
Depth: 43.8 mm
Height: 246.4 mm
Weight: 2.2 kg

Packaging data

Package width: 462 mm
Package depth: 216 mm
Package height: 346 mm
Package weight: 4.3 kg

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%
