Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel® Core™ i5 8 GB DDR4-SDRAM 128 GB SSD Black All-in-One tablet PC

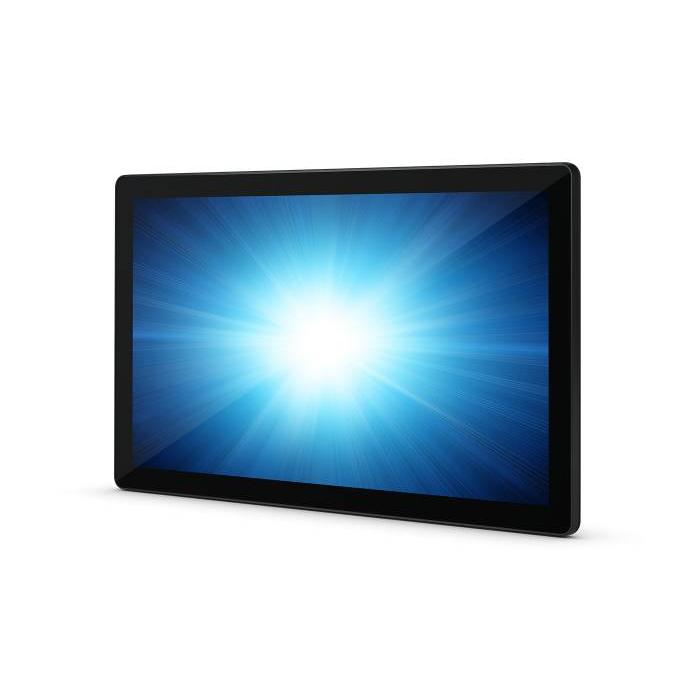

Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel®

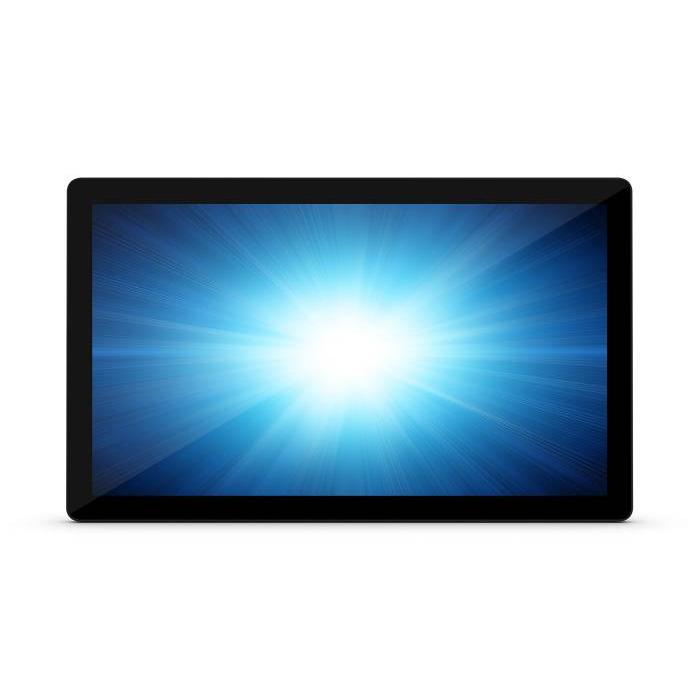

Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 2 of 4

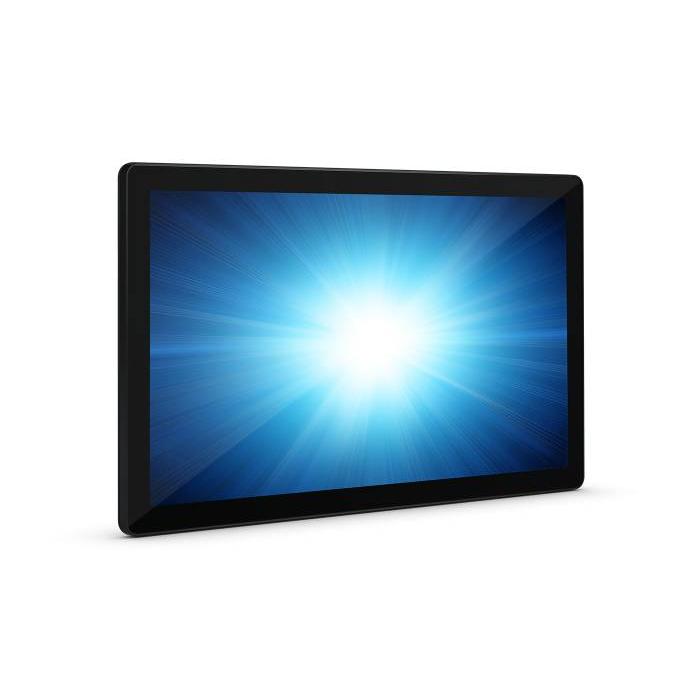

Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 3 of 4

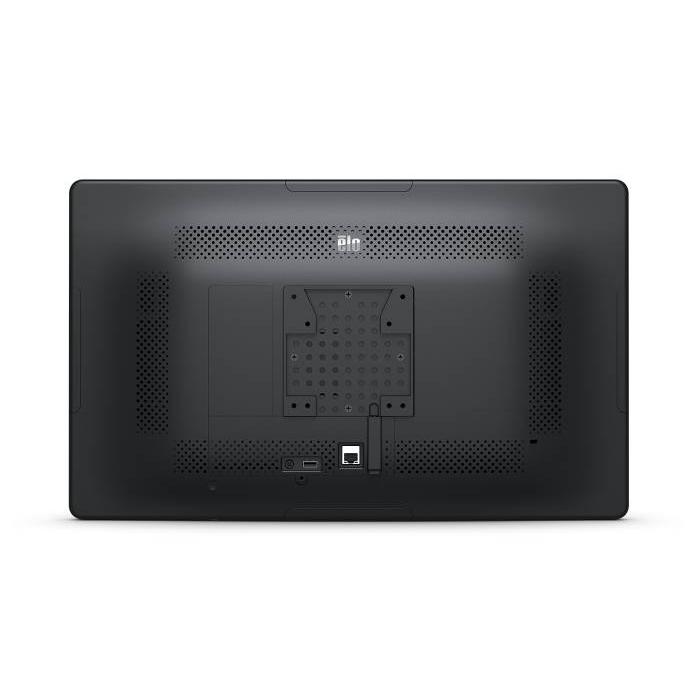

Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel® — image 4 of 4

Elo Touch Solution I-Series E693022 All-in-One PC/workstation 54.6 cm (21.5'') 1920 x 1080 pixels Touchscreen 8th gen Intel® Core™ i5 8 GB DDR4-SDRAM 128 GB SSD Black All-in-One tablet PC

Elo Touch Solution I-Series E693022, 54.6 cm (21.5"), Full HD, 8th gen Intel® Core™ i5, 8 GB, 128 GB, Windows 10.

More info

Brand: ELO TOUCH SOLUTION

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 83127 PRC: 266443 EAN: 843173109480 PN: e693022

Description

Elo Touch Solution I-Series all-in-one PC with 54.6 cm (21.5-inch) multi-touch touchscreen, 1920 x 1080 pixel Full HD resolution and 16:9 aspect ratio. The screen is flat, with LED backlighting and a brightness of 225 cd/m², and reproduces 16.78 million colours with a response time of 14 ms. It is powered by an 8th generation Intel Core i5 processor with 9 MB Smart Cache and a thermal design power of 35 W, supporting up to 128 GB of internal memory. It includes 8 GB of DDR4-SDRAM memory and a 128 GB SSD. This all-in-one unit comes in black, weighs 5.2 kg and measures 525.9 x 319.2 x 52.6 mm.

Specifications

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
LED backlight: Yes
3D: No
Touchscreen: Yes
Touch technology: Multi-touch
Aspect ratio: 16:9
Display brightness: 225 cd/m²
Display response rise/fall: 14 ms
Detachable display: No
Screen shape: Flat
Display number of colours: 16.78 million colors

Processor

Processor frequency: 2.1 GHz
Processor model: i5-8500T
Processor family: 8th gen Intel® Core™ i5
Processor boost frequency: 3.5 GHz
Processor cores: 6
Processor threads: 6
Processor cache: 9 MB
Processor cache type: Smart Cache
System bus rate: 8 GT/s
64-bit computing: Yes
Motherboard chipset: Intel Q370
PCI Express slots version: 3.0
Processor socket: LGA 1151 (Socket H4)
Processor lithography: 14 nm
Bus type: DMI3
Thermal Design Power (TDP): 35 W
Maximum number of PCI Express lanes: 16
Maximum internal memory supported by processor: 128 GB
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 2666 MHz
Memory bandwidth supported by processor (max): 41.6 GB/s
Memory channels supported by processor: Dual
ECC supported by processor: No

Memory

Internal memory: 8 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory slots: 2
Memory slots type: SO-DIMM
Memory clock speed: 2666 MHz
Memory layout (slots x size): 1 x 8 GB

Storage

Total storage capacity: 128 GB
Storage media: SSD
Card reader integrated: No
Number of SSDs installed: 1
SSD capacity: 128 GB
SSD form factor: M.2
Compatible memory cards: Not supported

Graphics

Discrete graphics adapter: No
Discrete graphics adapter model: Not available
On-board graphics adapter: Yes
On-board graphics adapter family: Intel® UHD Graphics
On-board graphics adapter model: Intel® UHD Graphics 630
On-board graphics adapter DirectX version: 12.0
On-board graphics adapter OpenGL version: 4.5
On-board graphics adapter 4K support: Yes

Audio

RMS rated power: 2 W
Built-in speaker(s): Yes
Number of speakers: 2

Optical drive

Optical drive type: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Headphone outputs: 1

Design

Product colour: Black
VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm

Performance

Product type: All-in-One tablet PC
Trusted Platform Module (TPM): Yes

Software

Operating system installed: Windows 10

Power

AC adapter power: 100 W
AC adapter frequency: 50-60 Hz
AC adapter input voltage: 100 - 240 V

Multimedia

Built-in camera: No

Pen

Pen included: No

Weight & dimensions

Width: 525.9 mm
Depth: 52.6 mm
Height: 319.2 mm
Weight: 5.2 kg

Packaging data

Package width: 625 mm
Package depth: 196 mm
Package height: 437 mm
Package weight: 7 kg

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Packaging content

AC adapter included: Yes
Quick start guide: Yes
