Description

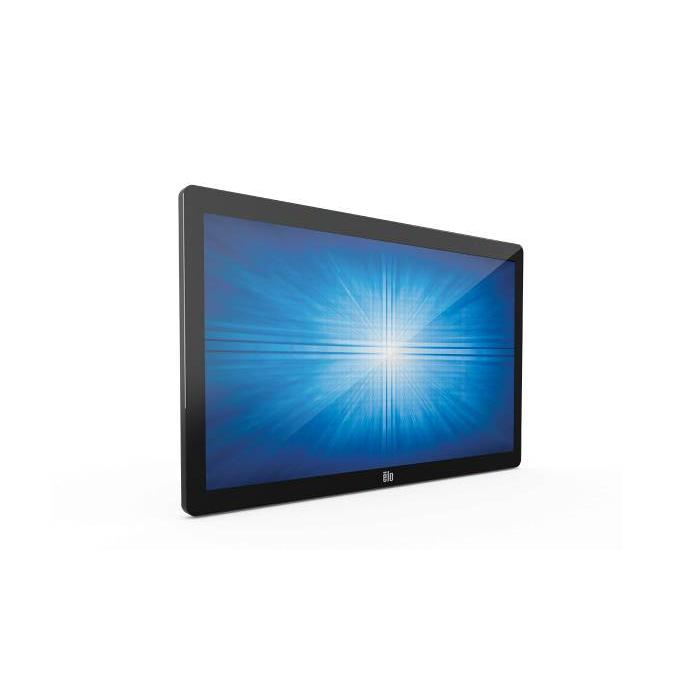

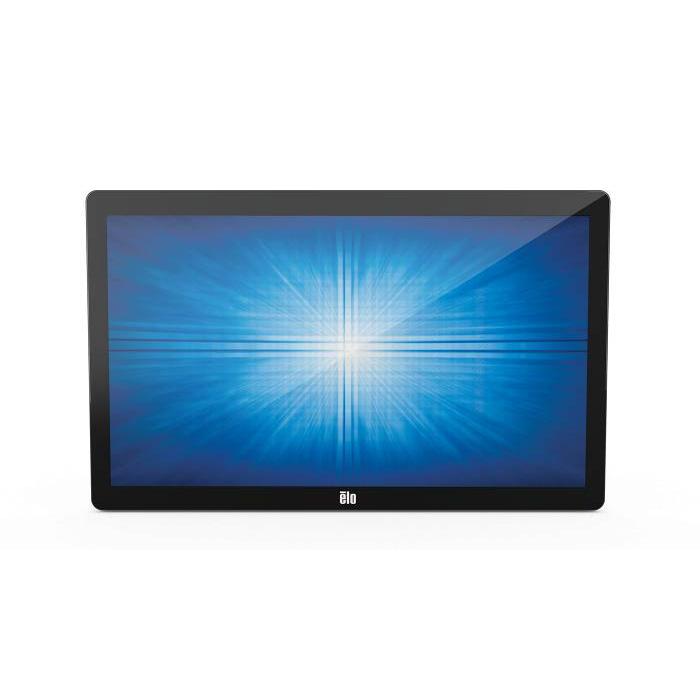

Elo Touch Solution 2202L, 54.6 cm (21.5''), 250 cd/m², Full HD, LCD, 16:9, 25 ms

Specifications

Display


  • Display diagonal: 54.6 cm (21.5")
  • Display resolution: 1920 x 1080 pixels
  • Panel type: TFT
  • HD type: Full HD
  • Display technology: LCD
  • High frequency rate: 60 Hz
  • Native aspect ratio: 16:9
  • Response time: 25 ms
  • Display brightness: 250 cd/m²
  • Contrast ratio (typical): 1000:1
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Display viewable area (HxV): 467.06 x 267.78 mm
  • Digital horizontal frequency: 30 - 82 kHz
  • Digital vertical frequency: 50 - 75 Hz
  • Display diagonal (metric): 54.61 cm
  • LED backlight: Yes
  • Supported graphics resolutions: 800 x 500,640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 80
  • Display number of colours: 16.78 million colors

Design


  • Product colour: Black
  • International Protection (IP) code: IPX1

Performance


  • Touch technology: Multi-touch
  • Touchscreen technology: Projected capacitive system
  • Touchscreen type: Tabletop
  • Number of simultaneous touchpoints: 10
  • Built-in speaker(s): Yes
  • RMS rated power: 4 W
  • Number of speakers: 2
  • Built-in camera: No
  • Number of OSD languages: 10
  • On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
  • Mean time between failures (MTBF): 50000 h

Ports & interfaces


  • USB 2.0 ports quantity: 1
  • Micro-USB ports quantity: 4
  • HDMI: Yes
  • HDMI ports quantity: 1
  • VGA (D-Sub) ports quantity: 1
  • Headphone outputs: 1

Ergonomics


  • Panel mounting interface: 100 x 100 mm
  • Wall mountable: Yes
  • VESA mounting: Yes

Power


  • Power supply type: AC/DC
  • Power consumption (typical): 22.5 W
  • Power consumption (standby): 0.8 W
  • Power consumption (off): 0.35 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Storage relative humidity (H-H): 10 - 95%
  • Operating altitude: 0 - 3.048 m
  • Non-operating altitude: 0 - 12.192 m

Certificates


  • Certification: Canada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia

Weight & dimensions


  • Weight: 5.2 kg
  • Width: 526.9 mm
  • Height: 326.9 mm
  • Depth: 42.7 mm

Packaging data


  • Package width: 633 mm
  • Package depth: 196 mm
  • Package height: 450 mm
  • Package weight: 7.2 kg

Packaging content


  • Cables included: AC,Audio (3.5mm),HDMI,USB,VGA
  • Quick start guide: Yes
  • AC adapter included: Yes
  • Stand included: No
