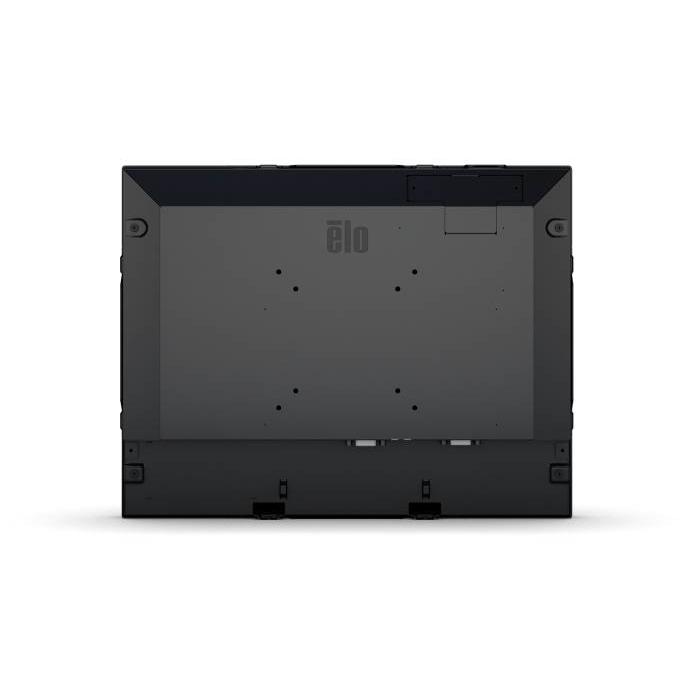

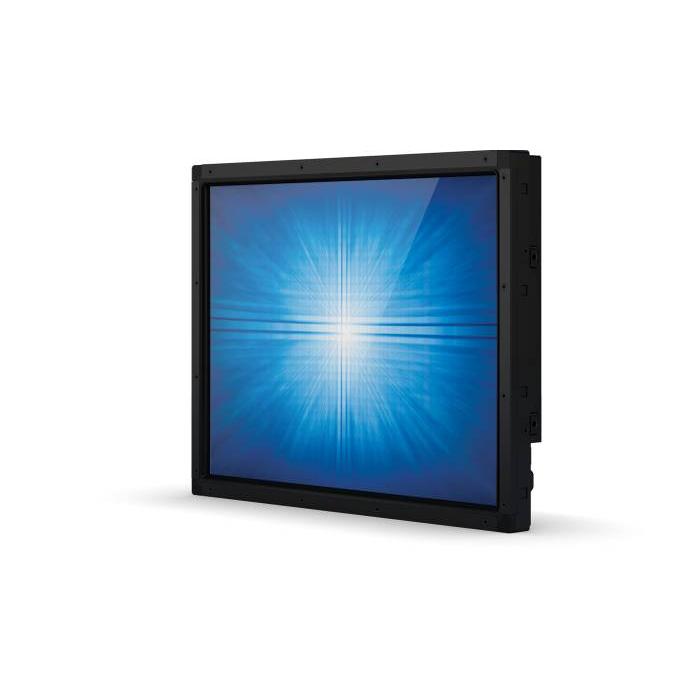

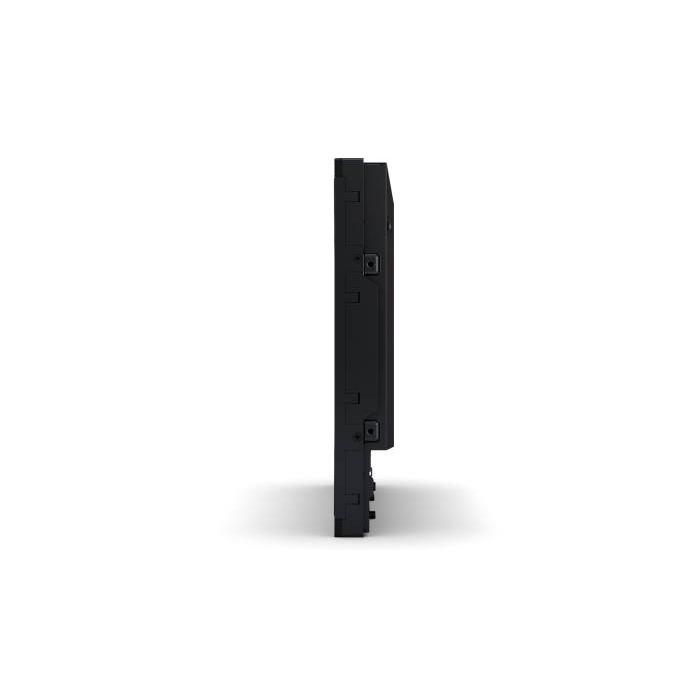

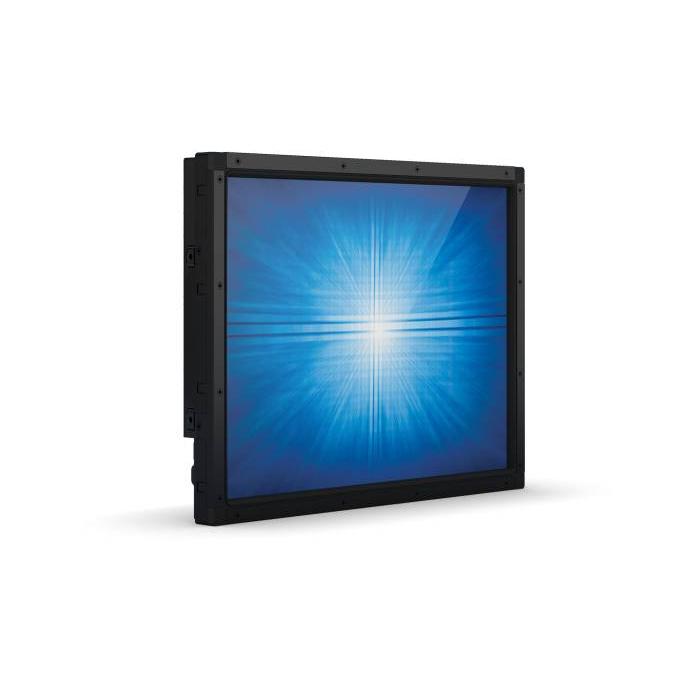

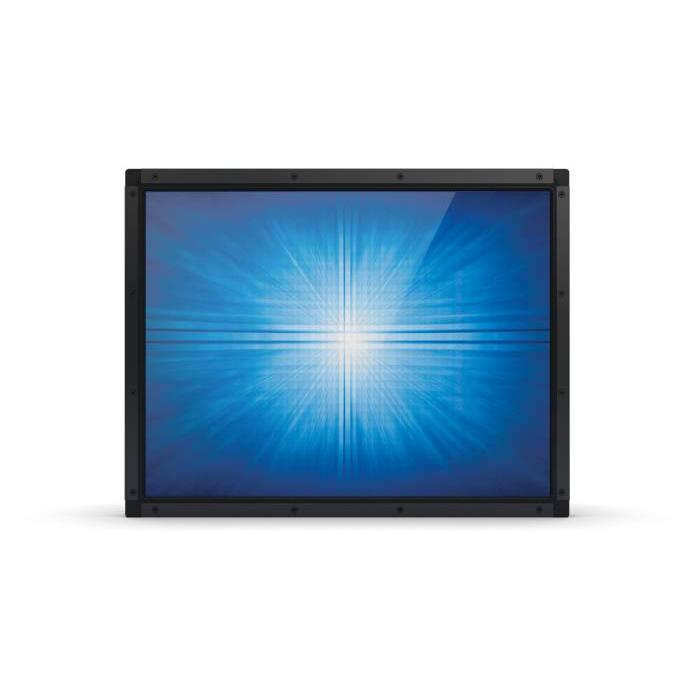

Elo Touch Solution 1598L 15" 1024 x 768pixels Single-touch Black touch screen monitor
Elo Touch Solution 1598L, 38.1 cm (15"), 35 ms, 400 cd/m², LCD/TFT, 1500:1, Resistive.
More infoBrand: ELO TOUCH SOLUTION
574.63 €Stock available: 0 units.
Unavailable
SKU:
78708
PRC:
154268
EAN:
815335024726
PN:
E126407
Description
38.1 cm (15 ") TFT LCD (LED), 1024 x 768, 4:3, AccuTouch, 35 ms, 1500:1, VGA, HDMI 1.3, DP 1.1a, 100-240 VAC, 50/60 Hz, 336.4 mm x 264.4 mm x 41.9 mm
Specifications
Display
- Display diagonal: 38.1 cm (15")
- Display resolution: 1024 x 768 pixels
- Display technology: LCD/TFT
- High frequency rate: 60 Hz
- Response time: 35 ms
- Display brightness: 400 cd/m²
- Contrast ratio (typical): 1500:1
- Digital vertical frequency: 50 - 75 Hz
- Display number of colours: 16.2 million colours
- Digital horizontal frequency: 30 - 60 kHz
- Supported graphics resolutions: 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA)
- Viewing angle, horizontal: 170°
- Touchscreen technology: Resistive
- LED backlight: Yes
- Display viewable area (HxV): 304.1 x 228.1 mm
- Aspect ratio: 4:3
- Viewing angle, vertical: 170°
Design
- Colour of product: Black
Performance
- Touch technology: Single-touch
- Built-in camera: No
- Built-in microphone: No
- Mean time between failures (MTBF): 50000 h
- On Screen Display (OSD) languages: CHI (SIMPL), CHI (TR), German, English, Spanish, French, Italian, JPN
- OmniTapps Multitouch compatibility: No
- Number of OSD languages: 8
Ports & interfaces
- USB 2.0 ports quantity: 1
- Cables included: HDMI,USB,VGA
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- VESA mounting: Yes
- Wall mountable: Yes
- VESA mounting interfaces: 75 x 100 mm
Power
- Power supply type: AC/DC
- Power consumption (typical): 14.1 W
- Power consumption (standby): 1.5 W
- AC input voltage: 100-240
- Power consumption (off): 0.5 W
- AC input frequency: 50/60
- AC adapter output voltage: 12 V
Operational conditions
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Non-operating altitude: 0 - 12192 m
- Operating altitude: 0 - 3658 m
Certificates
- RoHS compliance: Yes
- Certification: RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC
Weight & dimensions
- Width: 336.4 mm
- Height: 264.4 mm
- Depth: 41.9 mm
- Weight: 2.9 kg
Packaging data
- Package width: 434 mm
- Package depth: 175 mm
- Package height: 375 mm
- Package weight: 4.7 kg
Packaging content
- Handheld remote control: Yes
- Quick start guide: Yes
