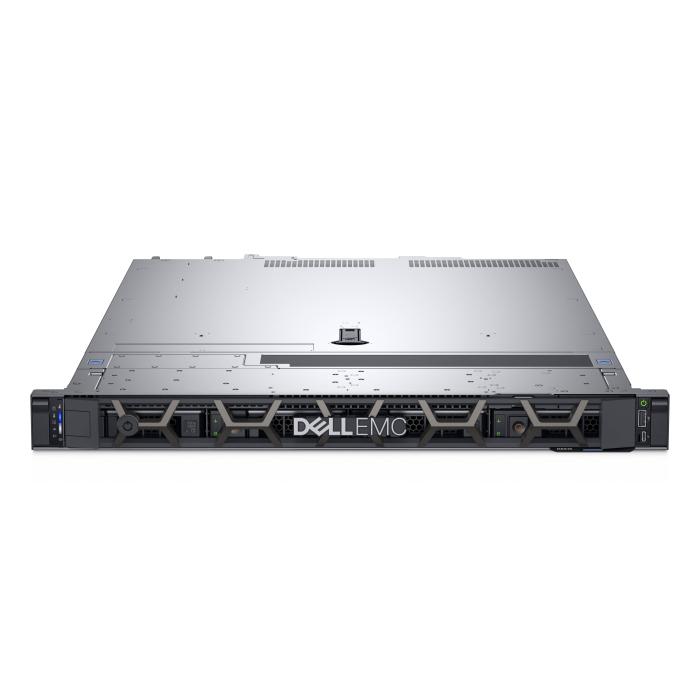

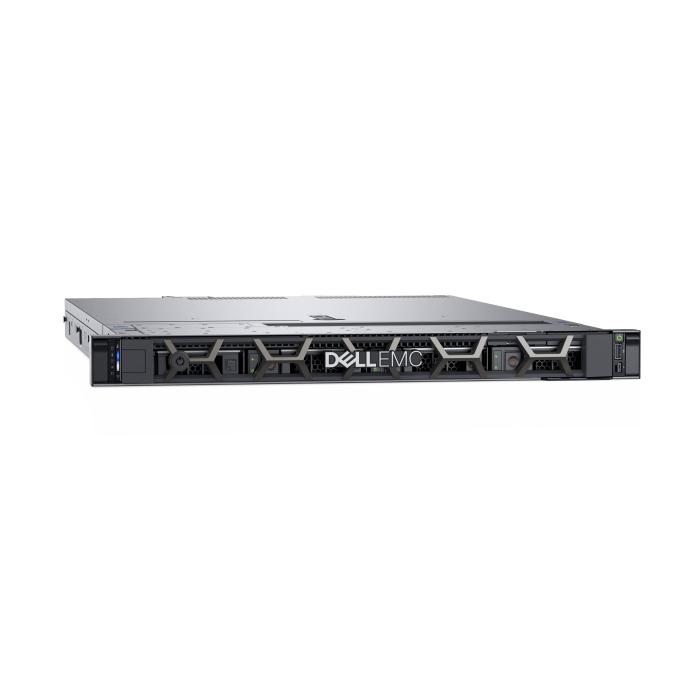

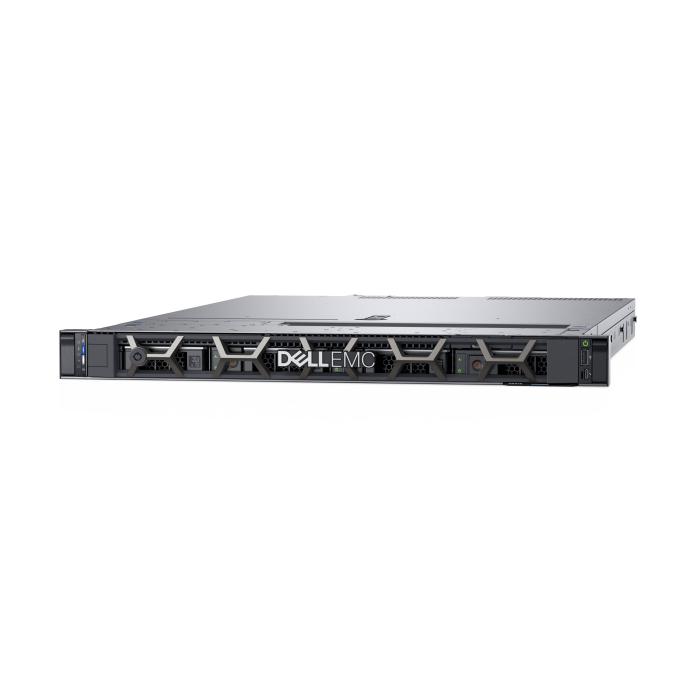

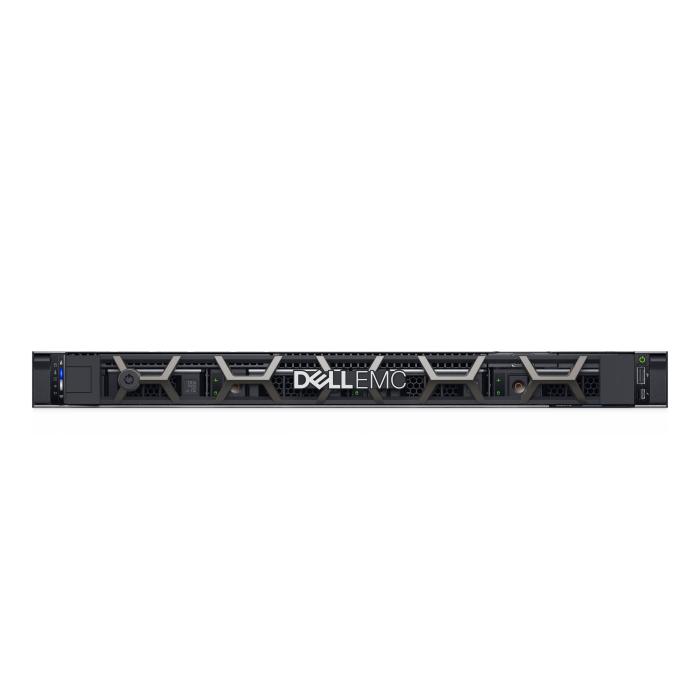

Name: DELL PowerEdge R6515 server 480 GB Rack (1U) AMD EPYC 7313P 3 GHz 32 GB DDR4-SDRAM 550 W
Brand: DELL
Availability: OutOfStock

DELL PowerEdge R6515 server 480 GB Rack (1U) AMD EPYC 7313P 3 GHz 32 GB DDR4-SDRAM 550 W

Not avaliable

DELL PowerEdge R6515 server 480 GB Rack (1U) AMD EPYC 7313P 3 GHz 32 GB DDR4-SDRAM 550 W. More info

Amount

Brand: DELL

SKU: 91517 PRC: 354634 EAN: 5397184730881 PN: 4XJTD

Description

AMD EPYC 7313P (128MB Cache, 3GHz), 32GB DDR4-SDRAM, 480GB SSD, LAN (Broadcom 5720), H740P , iDRAC9, Enterprise 15G, 550W, No OS

Specifications

Processor

Processor manufacturer: AMD
Processor family: AMD EPYC
Processor model: 7313P
Processor frequency: 3 GHz
Processor boost frequency: 3.7 GHz
Processor cache: 128 MB
Number of processors installed: 1

Memory

Internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Buffered memory type: Registered (buffered)
Memory ranking: 2
Memory slots: 16x DIMM
Memory clock speed: 3200 MHz
Memory layout (slots x size): 1 x 32 GB
Memory data transfer rate: 3200 MT/s
Maximum internal memory: 1 TB

Storage

Total storage capacity: 480 GB
Number of SSDs installed: 1
SSD capacity: 480 GB
SSD interface: SATA III
SSD size: 2.5"
Supported SSD sizes: 3.5"
Number of SSDs supported: 4
RAID support: Yes
Supported RAID controllers: H740P
Hot-Plug support: Yes
Optical drive type: No
Drive writes per day (DWPD): 1
Storage drive adapter included: Yes
Storage drive adapter type: 2.5" - 3.5"

Graphics

On-board graphics card: No
On-board graphics card model: Not available

Network

LAN controller: Broadcom 5720
Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 2
Serial ports quantity: 1
Power cables quantity: 1

Design

Chassis type: Rack (1U)
Product colour: Black
Rack rails: Yes
Bezel: Yes

Performance

Remote administration: iDRAC9, Enterprise 15G

Software

Operating system installed: No
Compatible operating systems: - Canonical Ubuntu Server LTS - Citrix Hypervisor - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linu

Power

Redundant power supply (RPS) support: Yes
Power supply: 550 W
Number of redundant power supplies supported: 2
Number of main power supplies: 1
Power supply input frequency: 50 - 60 Hz
Power cable length: 2 m
Power cable connector 1: C13 coupler
Power cable connector 2: C14 coupler
Power cable current: 10 A

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12000 m

Logistics data

Harmonized System (HS) code: 84714100

Carbon footprint

Total carbon footprint (kg of CO2e): 3949
Total carbon emissions, standard deviation (kg of CO2e): 2064
Carbon emissions, manufacturing (kg of CO2e): 434
Carbon emissions, logistics (kg of CO2e): 118
Carbon emissions, energy usage (kg of CO2e): 3396
Total carbon emissions, w/o use phase (kg of CO2e): 553
PAIA version: 1.3.2 2023

Weight & dimensions

Width: 482 mm
Height: 42.8 mm

Other features

Drive bays: 4
Data transfer rate: 6 Gbit/s
Bytes per sector: 512
