Description

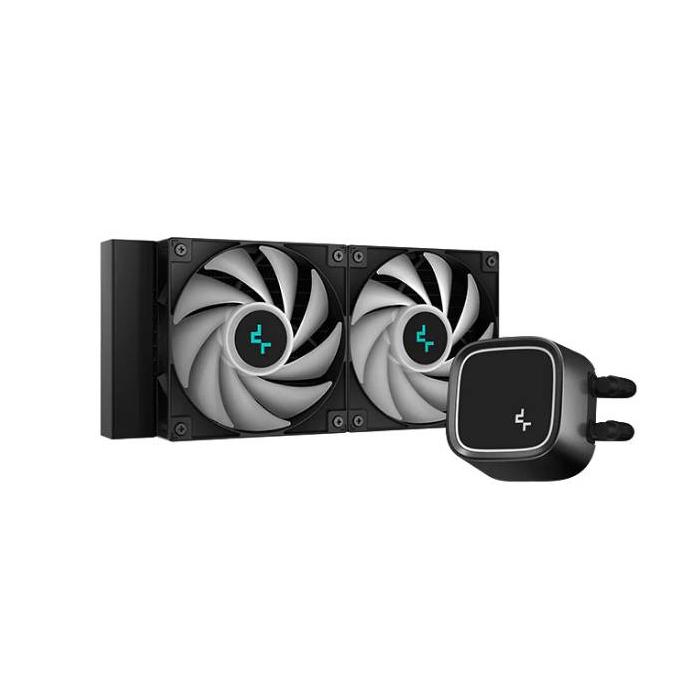

DeepCool LE520, Liquid сooling kit, 12 cm, 500 RPM, 2250 RPM, 32.9 dB, 85.85 cfm

Specifications

Performance


  • Quantity per pack: 1 pc(s)
  • Pump motor speed: 22400 RPM
  • Fan static pressure: 3.27 mmH2O
  • Suitable location: Computer case
  • Type: Liquid сooling kit

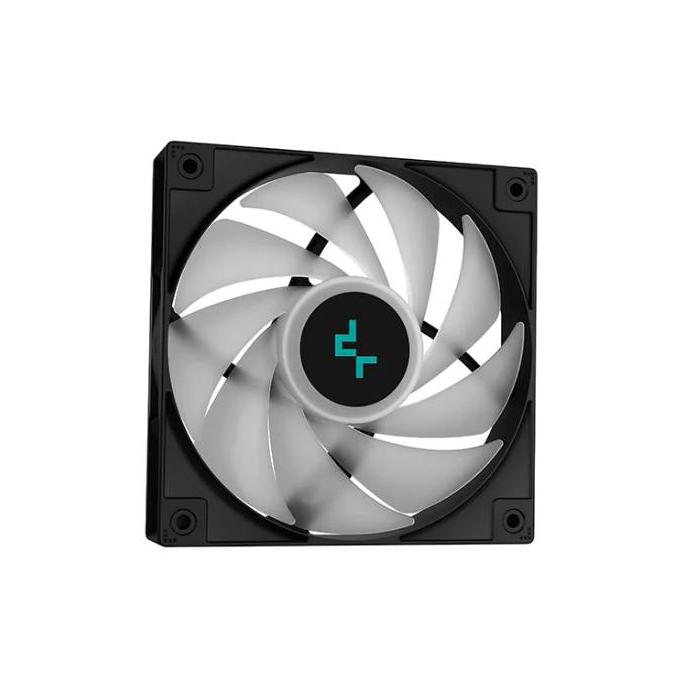

  • Fan diameter: 12 cm
  • Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
  • Rotational speed (min): 500 RPM
  • Rotational speed (max): 2250 RPM
  • Noise level (high speed): 32.9 dB
  • Maximum airflow: 85.85 cfm
  • Minimum air pressure: 3.27 mmH2O
  • Fan diameter 2: 12 cm
  • Fan 2 rotational speed (min): 500 RPM
  • Fan 2 rotational speed (max): 2250 RPM
  • Pulse-width modulation (PWM) support: Yes
  • Bearing type: Hydro Dynamic Bearing (HDB)
  • Fan noise level (max): 32.9 dB
  • Pump noise level: 17.8 dB
  • Fan bearing technology: Hydro bearing
  • Pump connector: 3-pin

Design


  • Product colour: Black
  • Radiator material: Aluminum
  • Number of fans: 2 fan(s)

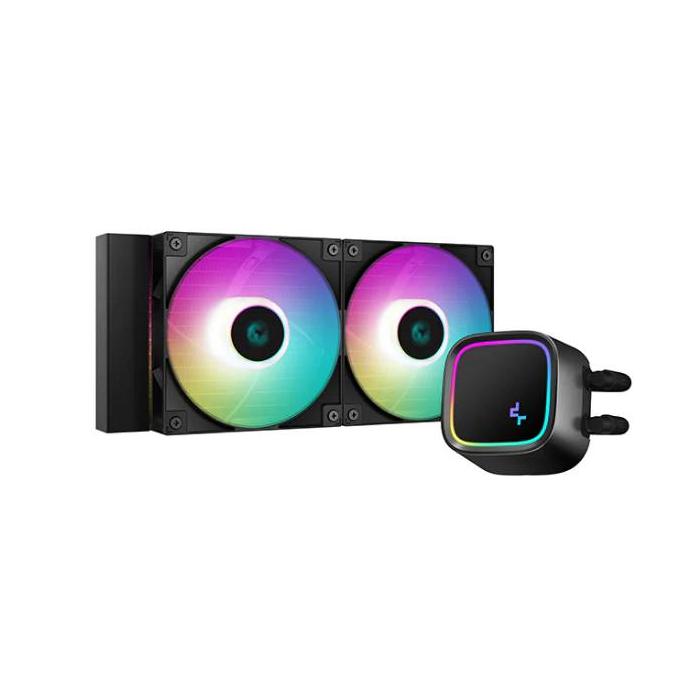

  • Illumination LED: Yes
  • Illumination colour: Multi
  • LED connector type: 3-pin
  • Fan connector: 4-pin

Power


  • Thermal Design Power (TDP): 220 W
  • LED voltage: 5 V
  • Pump voltage: 12 V
  • Pump current: 2 mA
  • Fan voltage: 12 V
  • Fan current: 0.25 A
  • LED power consumption (fan): 2.1 W
  • LED power consumption (pump): 2.25 W

Weight & dimensions

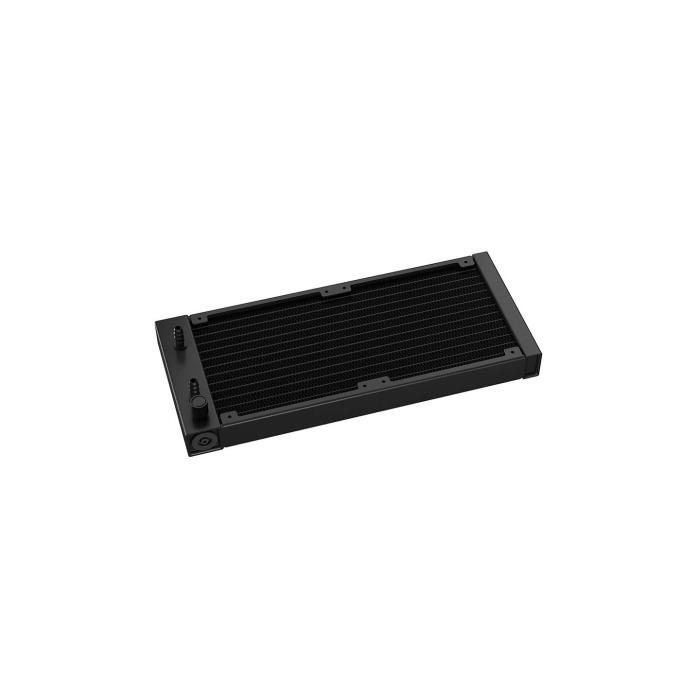

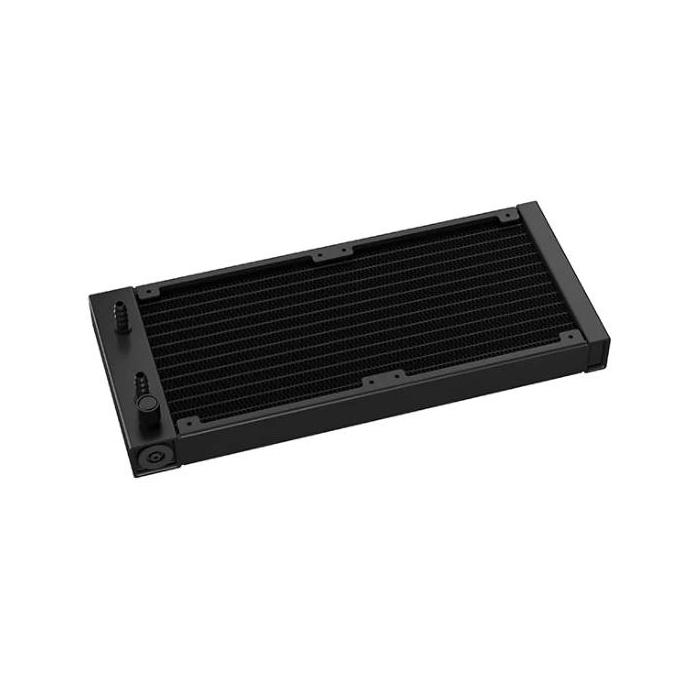

  • Radiator width: 28.2 cm
  • Radiator depth: 12 cm
  • Radiator height: 2.7 cm
  • Pump width: 9.1 cm
  • Pump depth: 8 cm
  • Pump height: 5.2 cm
  • Weight: 1.24 kg
  • Fan dimensions (W x D x H): 120 x 120 x 25 mm
  • Fan 2 dimensions (W x D x H): 120 x 120 x 25 mm

Packaging content


  • Package type: Box
  • Cables included: 3-pin, 4-pin

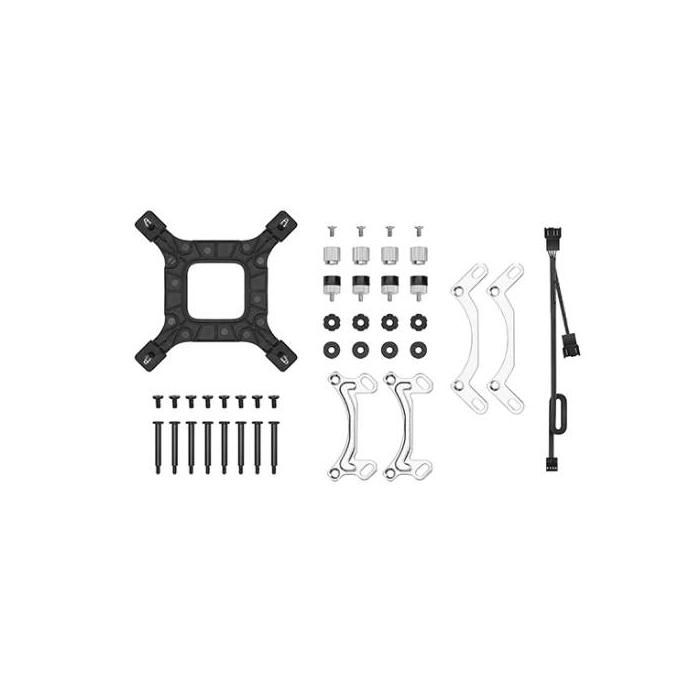

  • Mounting kit: Yes
  • Screws included: Yes
