Description

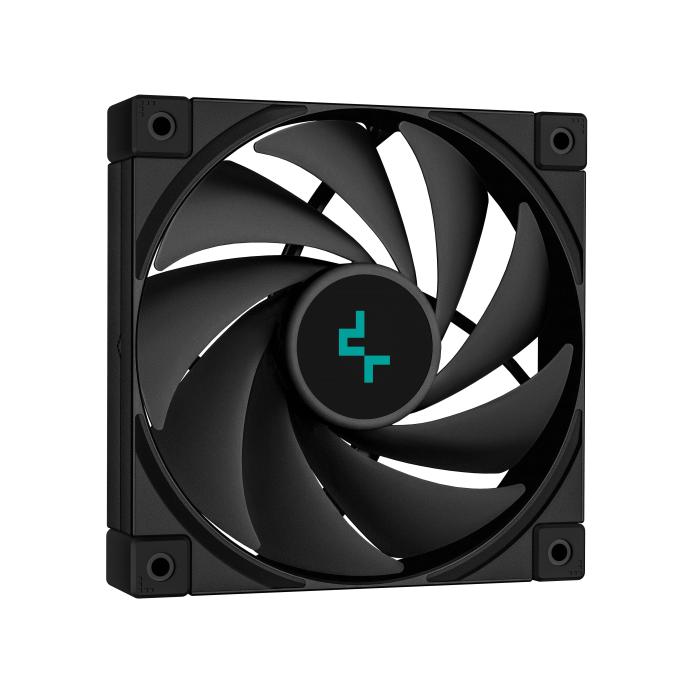

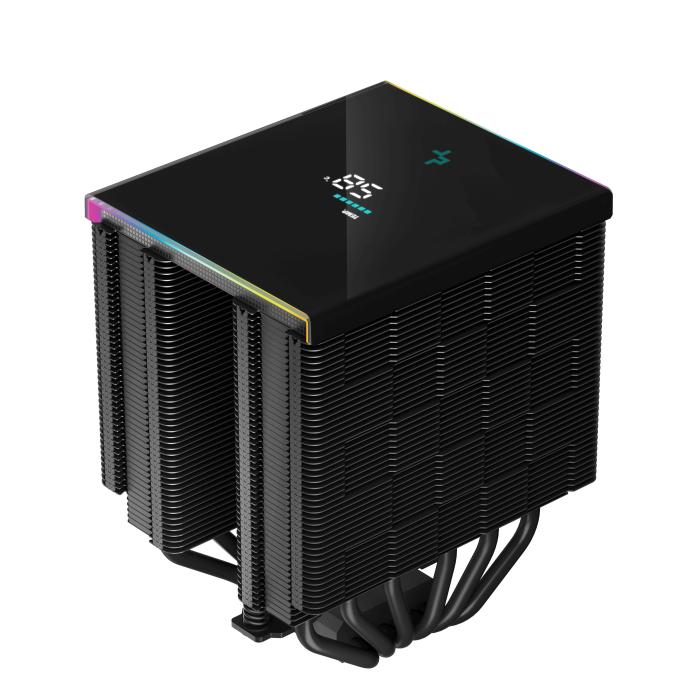

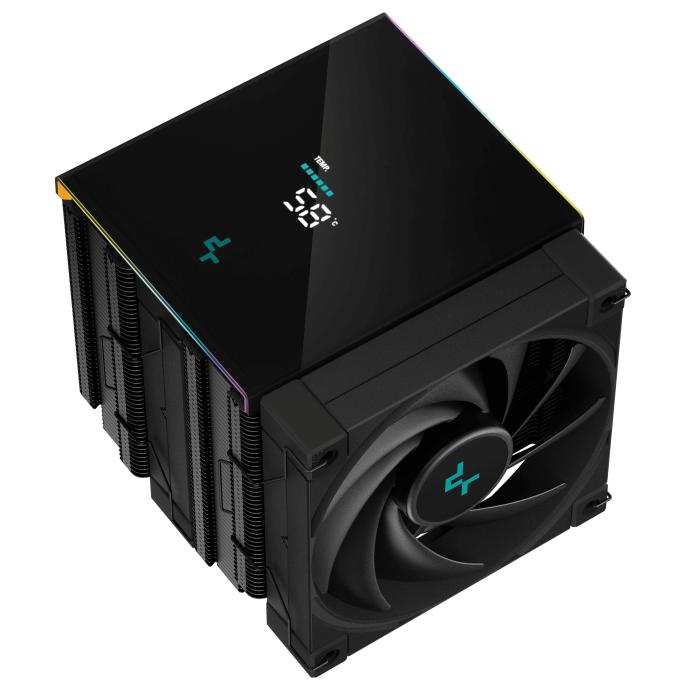

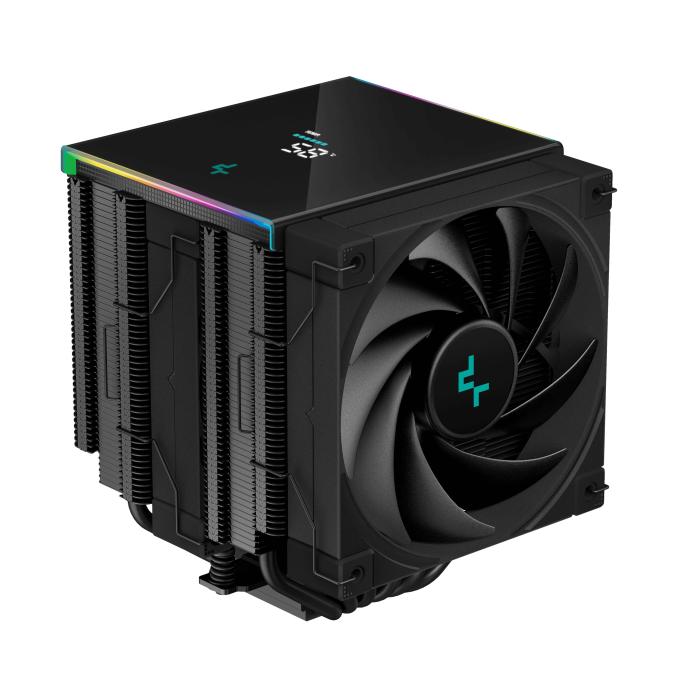

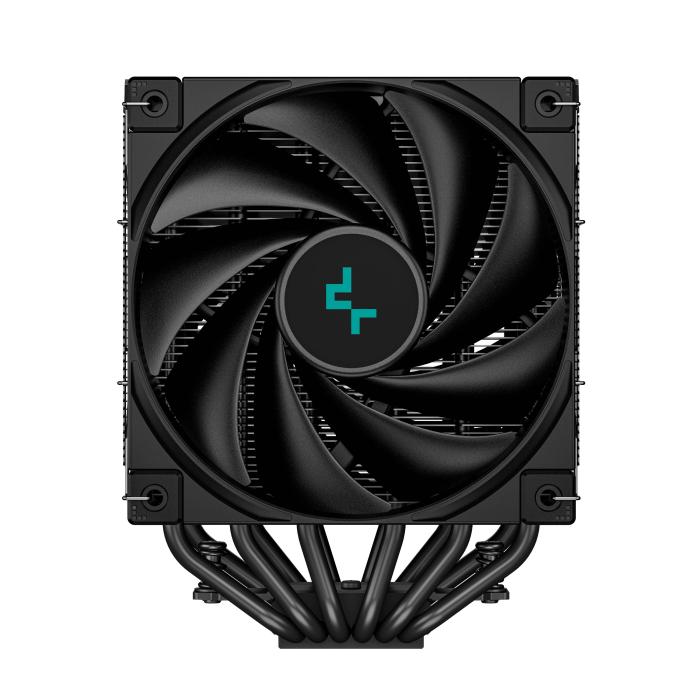

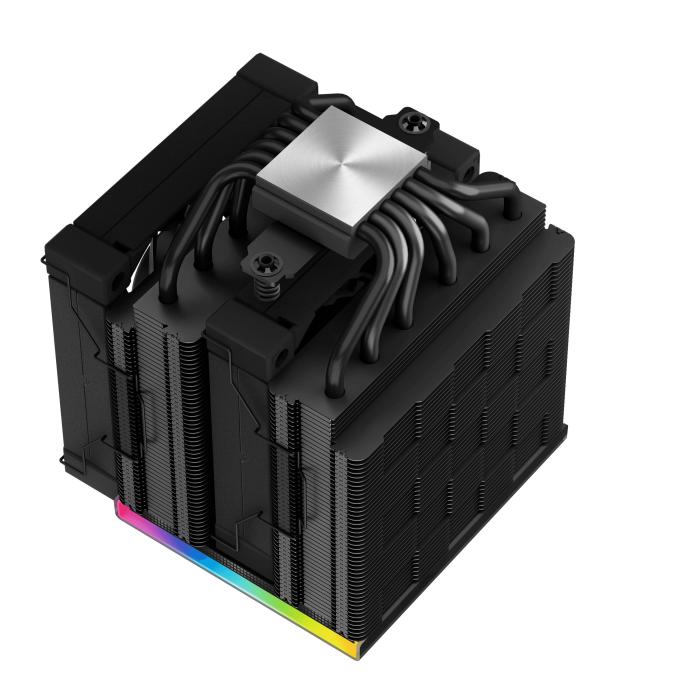

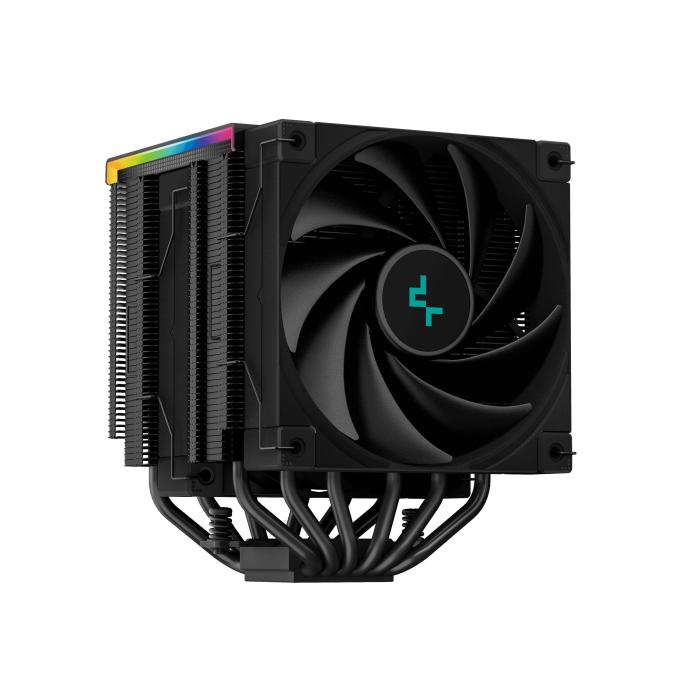

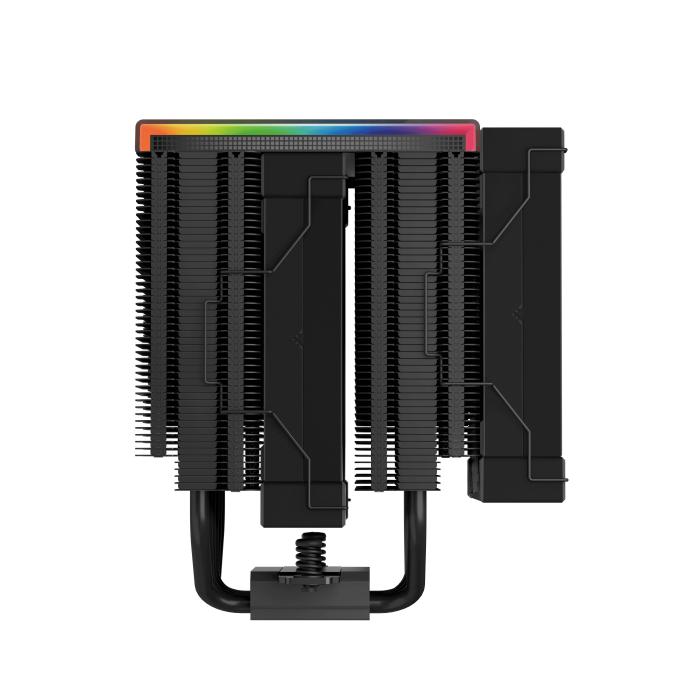

The DeepCool AK620 DIGITAL is a black processor air cooler with two 12 cm fans and six heat pipes on an aluminium heatsink. Its dimensions are 129 x 162 x 138 mm (width x height x depth) and its weight is 1.49 kg, so it is advisable to check the clearance inside the case before installing it. Each fan spins between 500 and 1850 RPM via PWM control, with a maximum airflow of 68.99 cfm and a maximum air pressure of 2.19 mmH2O to push air through the fins. The fan noise level reaches a maximum of 28 dB, a contained figure when the processor is working at full load. Fluid dynamic bearing (FDB) technology reduces bearing wear and helps maintain stable rotation over time. Each fan has nine blades and connects via a 4-pin connector.
Specifications
Performance
- Suitable location: Processor
- Type: Air cooler
- Fan diameter: 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-
- Maximum airflow: 68.99 cfm
- Maximum air pressure: 2.19 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Fan noise level (max): 28 dB
- Fan bearing technology: Fluid Dynamic Bearing (FDB)
- Quantity per pack: 1 pc(s)
- Fan speed (min): 500 RPM
- Fan speed (max): 1850 RPM
Design
- Product colour: Black
- Radiator material: Aluminum
- Number of fans: 2 fan(s)
- Number of fan blades: 9
- Number of heat pipes: 6
- Illumination LED: Yes
- Illumination colour: Multi
- LED connector type: 3-pin
- Fan connector: 4-pin
Power
- Fan power consumption: 1.44 W
- LED voltage: 5 V
- Fan voltage: 12 V
- Fan current: 0.12 A
Weight & dimensions
- Width: 129 mm
- Radiator width: 12.7 cm
- Radiator depth: 11 cm
- Radiator height: 15.7 cm
- Depth: 138 mm
- Height: 162 mm
- Weight: 1.49 kg
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Heat pipes diameter: 6 mm
Packaging content
- Package type: Box

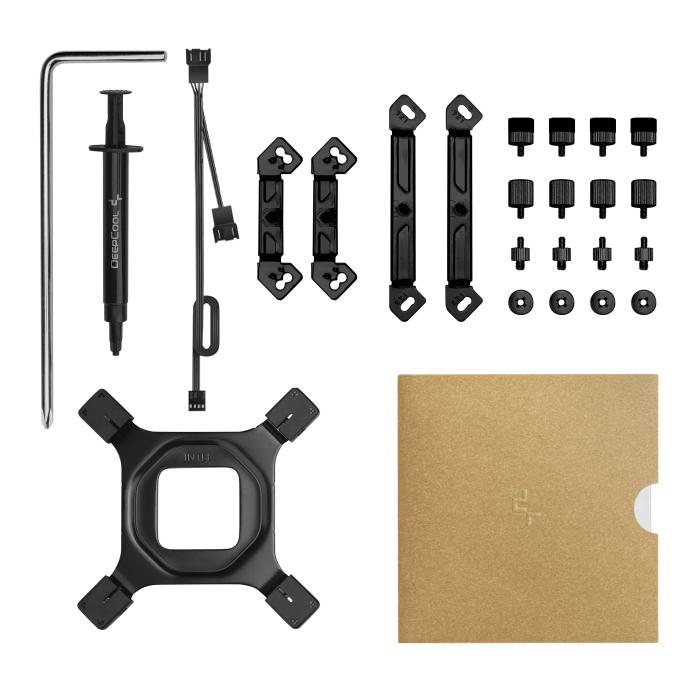

- Mounting kit: Yes
- Screws included: Yes
- CPU bracket(s): Yes
