Description

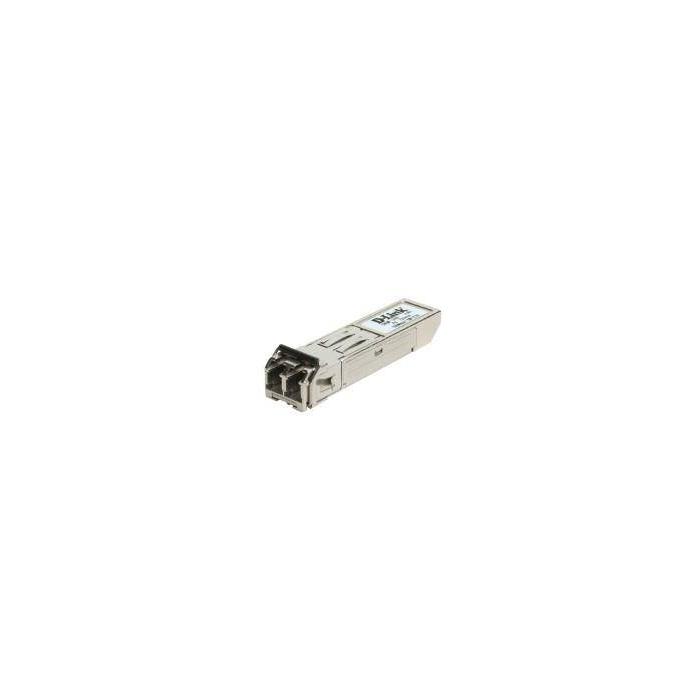

D-Link DEM-211 SFP transceiver module in metallic colour, measuring 57.9 x 7.62 x 12.7 mm and weighing 13.6 g. It works over multimode fibre optic with 100Base-FX technology and reaches a maximum data transfer speed of 100 Mbit/s at a wavelength of 1310 nm. Its fibre optic connector is LC and it supports cable fibre diameters of 50/125 and 62.5/125 µm, with a maximum transfer distance of 2000 m. It offers a link budget of 13 dB and complies with the IEEE 802.3u network standard. It incorporates full duplex and half duplex system, and its add-in form factor makes it suitable for the DES-1228, DES-1228P, DES-3252P, DES-3228PA, DES-1252 and DGS-3612G devices. As it is hot-swap, you can install it without turning off the device, and it operates at a maximum voltage of 3.3 V.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 100 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Link budget: 13 dB
- Networking standards: IEEE 802.3u
- Cabling technology: 100Base-FX
- Fiber ethernet cabling technology: 100BASE
- Duplex system: Full, Half
Features
- Product colour: Metallic
- Form factor: Plug-in
- Hot-swap: Yes
- Compatible products: DES-1228, DES-1228P, DES-3252P, DES-3228PA, DES-1252, DGS-3612G
Power
- Maximum voltage: 3.3 V
Certificates
- Safety: FDA/CDRH, TUV, UL
- Certification: RoHS
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 57.9 mm
- Depth: 12.7 mm
- Height: 7.62 mm
- Weight: 13.6 g
Packaging data
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
- Package weight: 64 g
Logistics data
- Shipping (inner) case length: 36 cm
- Shipping (inner) case width: 26 cm
- Shipping (inner) case height: 31 cm
- Shipping (inner) case net weight: 3.2 kg
- Products per shipping (inner) case: 50 pc(s)
- Pallet gross weight (air): 246.8 kg
- Master (outer) cases per pallet (air): 54 pc(s)
- Products per pallet (air): 2700 pc(s)
- Pallet gross length: 102 cm
- Pallet gross width: 122 cm
- Pallet height (air): 199 cm
- Pallet gross weight (sea): 246.8 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 2700 pc(s)
- Pallet height (sea): 199 cm
- Shipping (inner) case gross weight: 4.2 kg
- Harmonized System (HS) code: 85369010
