Description
Specifications
Performance

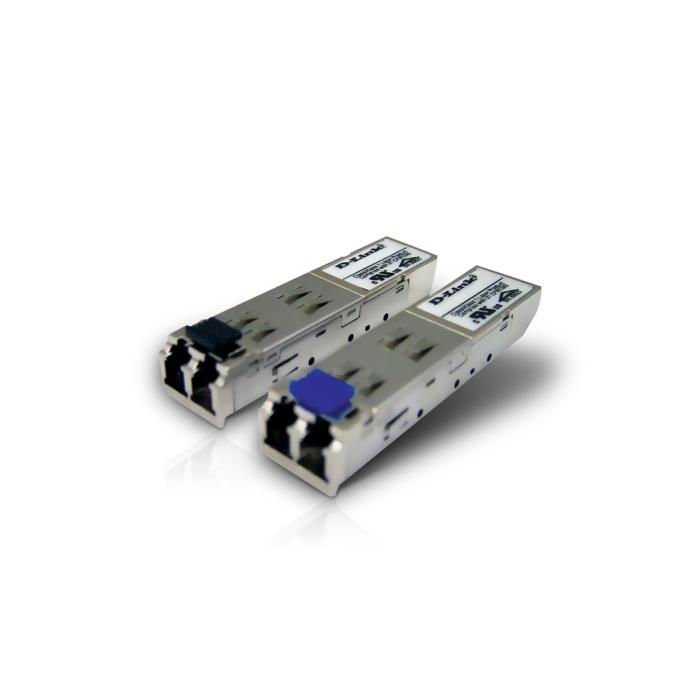

- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: No
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125, 62.5/125 µm
- SFP transceiver standard: SX
- Maximum transfer distance: 2000 m
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.3z
- Cabling technology: 1000Base-SX
- Duplex system: Full
Features
- Product colour: Metallic
- Housing material: Metal
- Hot-Plug support: Yes
Power
- Maximum voltage: 3.3 V
Certificates
- Certification: MSA, RoHS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 55 °C
- Operating relative humidity (H-H): 5 - 95%
Packaging data
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
- Package weight: 64 g
Other features
- Dimensions (WxDxH): 29.8 x 11.8 x 56.3 mm
Logistics data
- Shipping (inner) case length: 36 cm
- Shipping (inner) case width: 26 cm
- Shipping (inner) case height: 31 cm
- Shipping (inner) case net weight: 3.2 kg
- Products per shipping (inner) case: 50 pc(s)
- Pallet gross weight (air): 246.8 kg
- Master (outer) cases per pallet (air): 54 pc(s)
- Products per pallet (air): 2700 pc(s)
- Pallet gross length: 102 cm
- Pallet gross width: 122 cm
- Pallet height (air): 199 cm
- Pallet gross weight (sea): 246.8 kg
- Master (outer) cases per pallet (sea): 54 pc(s)
- Products per pallet (sea): 2700 pc(s)
- Pallet height (sea): 199 cm
- Shipping (inner) case gross weight: 4.2 kg
- Harmonized System (HS) code: 85177900
