Description

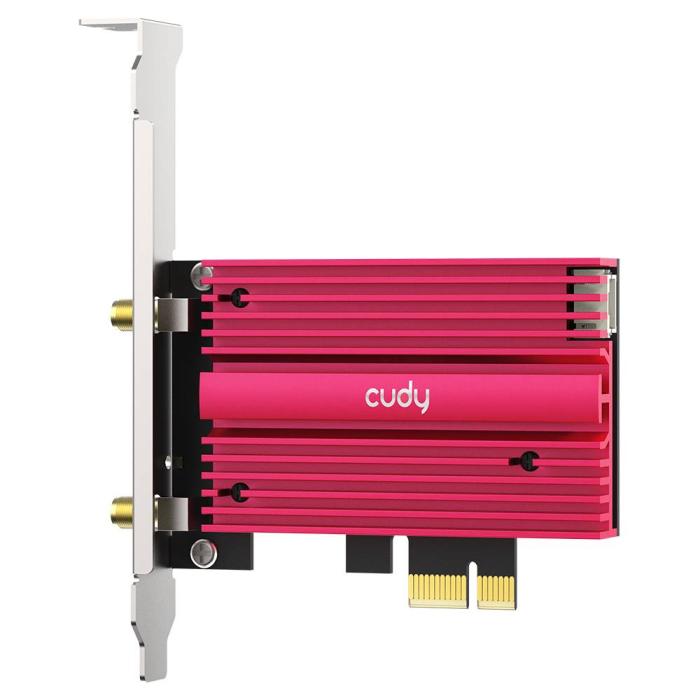

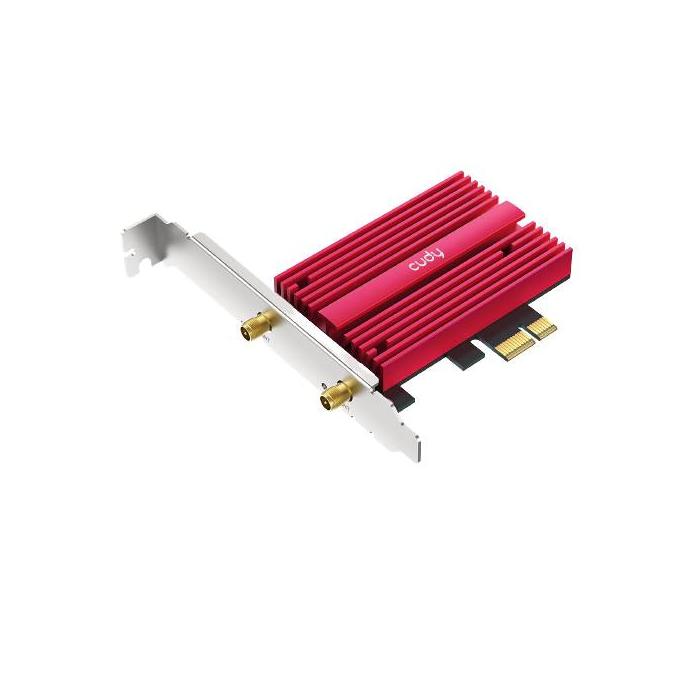

The Cudy WE4000 internal network adapter and card installs into a PCI Express slot with full-height (low-profile) form factor and adds wireless WLAN and Bluetooth 5.0 connectivity to your computer. It supports Wi-Fi 6 (802.11ax) in tri-band (2.4 GHz, 5 GHz, and 6 GHz) with transfer speeds of up to 2400 Mbit/s, as well as WPA3 security algorithms and OFDMA technology. It includes antennas with a maximum gain of 5 dBi and uses the Intel AX200NGW LAN controller to manage both Wi-Fi and Bluetooth connections, complying with IEEE 802.11a/b/g/n/ac/ax standards. With this card, you have an internal solution that combines both wireless protocols in a single component.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN / Bluetooth
- PCI Card form factor: Full-height (low-profile)
Network
- Maximum data transfer rate: 2400 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rates supported: 574, 2402 Mbit/s
- Spread spectrum method: OFDMA
- Security algorithms: WPA3
- Bluetooth: Yes
- Bluetooth version: 5.0
- LAN controller: Intel AX200NGW
Design
- Component for: PC
- Internal: Yes

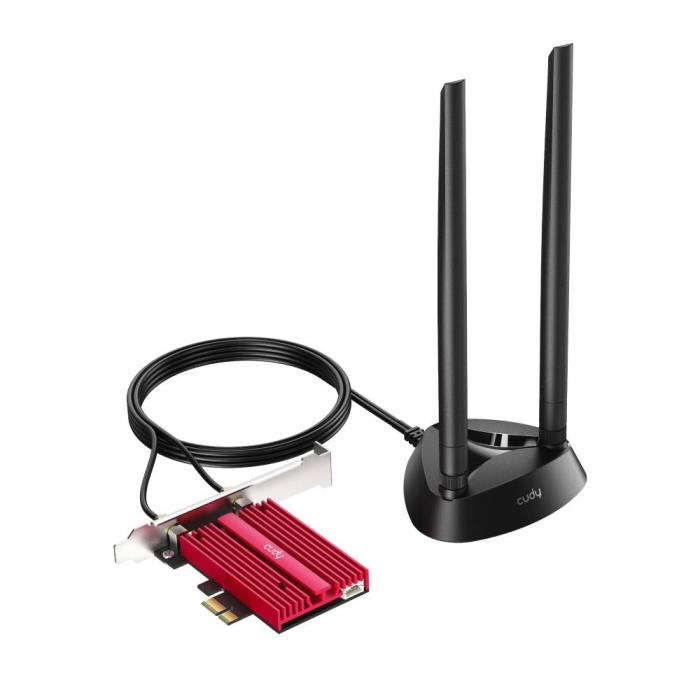

- Antenna: Yes
- Antenna design: External
- Antenna gain level (max): 5 dBi
System requirements
- Windows operating systems supported: Windows 10
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 72 mm
- Depth: 46 mm
- Height: 1.6 mm

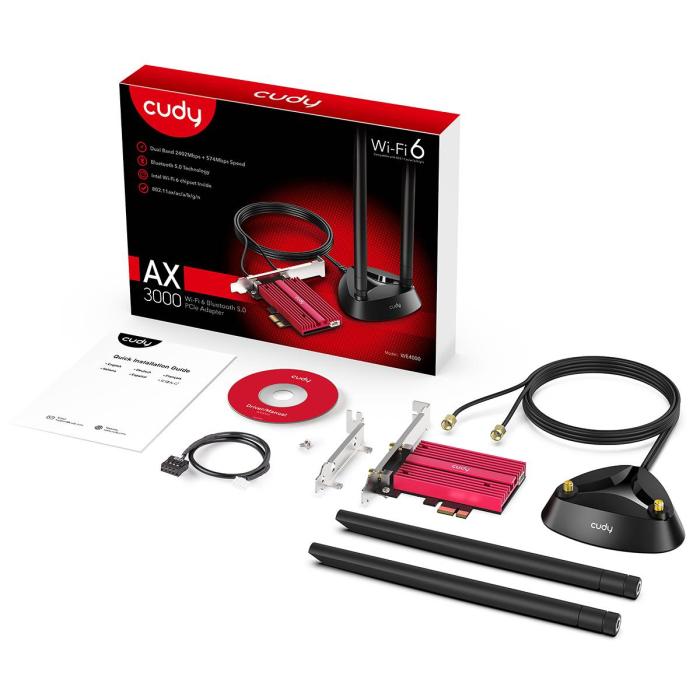

Packaging content
- Cables included: Coaxial
- Mounting brackets included: Yes
- Resource CD: Yes
- Bluetooth header cable: Yes
- Quick installation guide: Yes
Other features
- Bracket height: Low-Profile (LP) / Full-Height (FH)
