Description

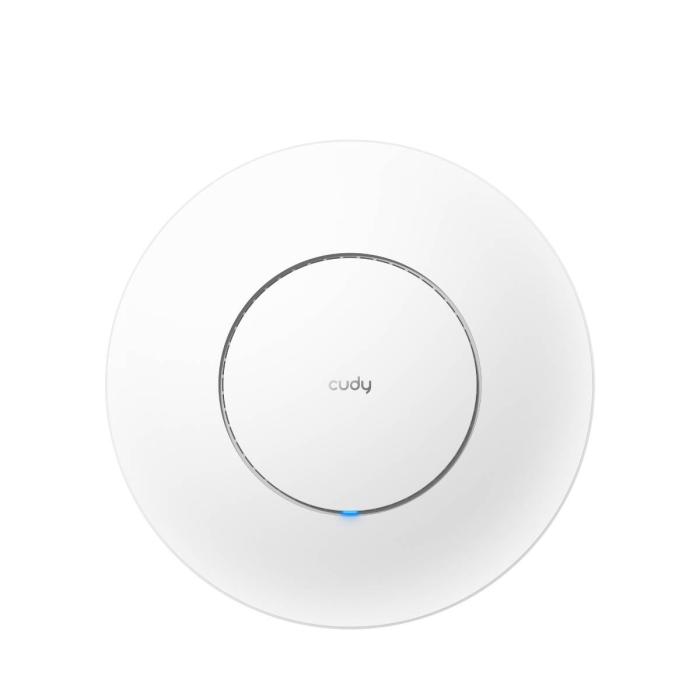

The Cudy AP3600 wireless access point in white offers a maximum data transfer speed of 2882 Mbit/s on the 5 GHz band, as well as supporting 2.4 GHz connections with up to 688 Mbit/s, ideal for environments with multiple devices. It features MIMO technology and two Ethernet LAN ports with speeds of 10, 100, 1000, and 2500 Mbit/s, allowing you to make the most of your wired connection. Designed for ceiling or wall mounting, it has system LED indicators and is powered via a DC input plug with a 12 V and 1 A adapter, consuming a maximum of 10 W. This model does not include support for 6 GHz or Power over Ethernet (PoE), so it requires an alternating current source of 100-240 V.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 2882 Mbit/s
- Maximum data transfer rate (2.4 GHz): 688 Mbit/s
- Maximum data transfer rate (5 GHz): 2882 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- MIMO: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): No
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Output voltage: 12 V
- Output current: 1 A
- Power consumption (max): 10 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Reset button: Yes
- LED indicators: System
Antenna
- Antenna type: Internal
- Antennas quantity: 4
- Antenna gain level (max): 5.5 dBi
Performance
- Built-in processor: Yes
- Processor frequency: 2000 MHz
- Flash memory: 128 MB
- Internal memory: 512 MB
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC)
Weight & dimensions
- Width: 231.9 mm
- Height: 57.1 mm
Packaging content
- AC adapter included: Yes
- Cables included: LAN (RJ-45)
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
