Description

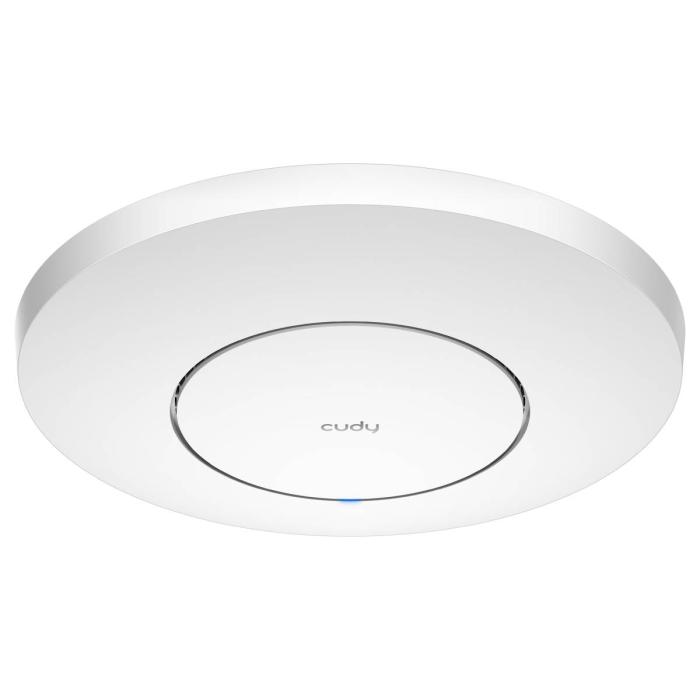

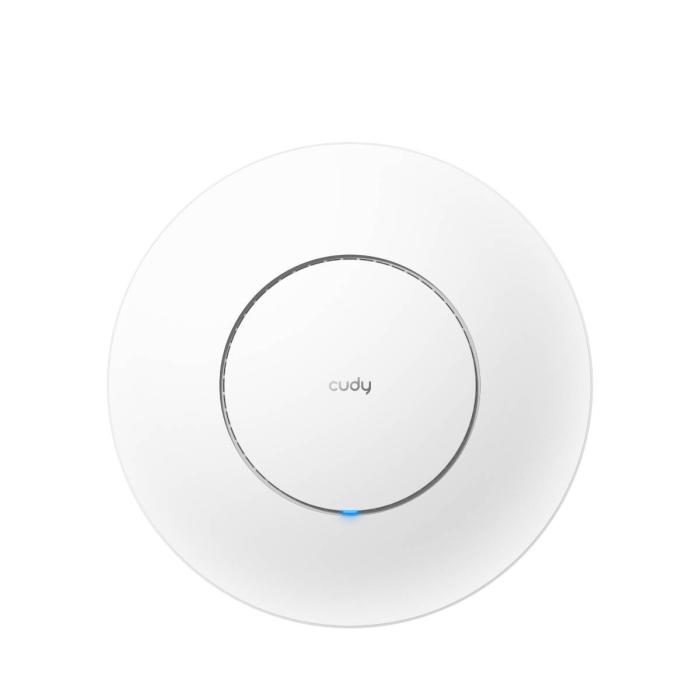

CUDY AC1300 access point in a white finish with Power over Ethernet (PoE) support, designed to extend wireless coverage in home or small office environments without the need for additional cabling. It operates on the 2.4 and 5 GHz bands, reaching maximum speeds of 300 and 867 Mbit/s respectively, and uses Multi User MIMO technology to manage multiple connected devices. It includes band steering, rate limiting, and QoS support features, as well as Fit AP mode with mesh networking for more flexible management. For security, it offers MAC and IP address filtering, WPA-PSK and WPA2-PSK algorithms, and support for multiple SSIDs. Its Gigabit Ethernet port (10/100/1000) and DC input connector allow for flexible connection options.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEE
- Cabling technology: 10/100/1000Base-T(X)
- MIMO: Yes
- MIMO type: Multi User MIMO
- Fit AP mode features: Mesh networking
- Rate limiting: Yes
- Band steering: Yes
- Quality of Service (QoS) support: Yes
Security
- Security algorithms: WPA-PSK, WPA2-PSK
- MAC address filtering: Yes
- IP address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
Ports & interfaces

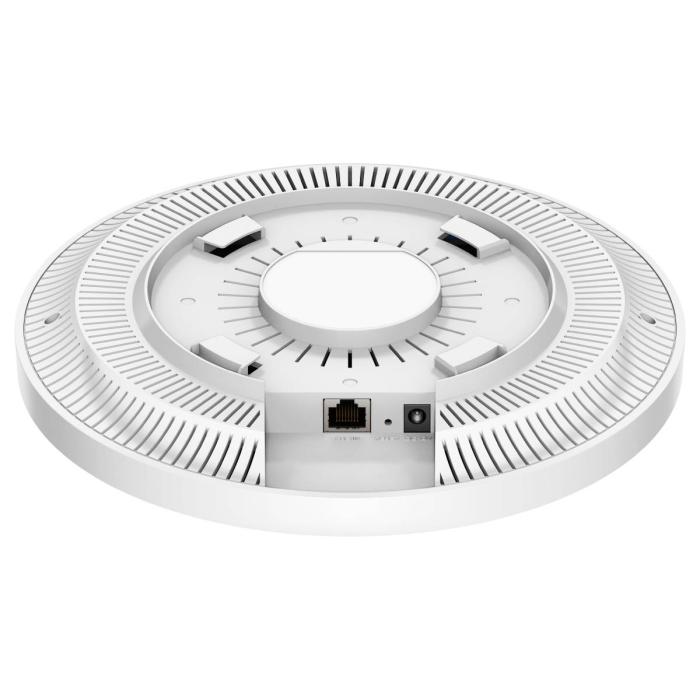

- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- DC voltage range: 24 - 57 V
- Output voltage: 12 V
- Output current: 1 A
- Power consumption (max): 11 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antennas quantity: 4
Performance
- Built-in processor: Yes
- Processor frequency: 880 MHz
- Flash memory: 16 MB
- Internal memory: 128 MB
- Compatible operating systems: Windows, MAC OS, NetWare, UNIX, Linux
Certificates
- Compliance certificates: CE
Weight & dimensions
- Width: 232 mm
- Depth: 57.1 mm
- Height: 232 mm

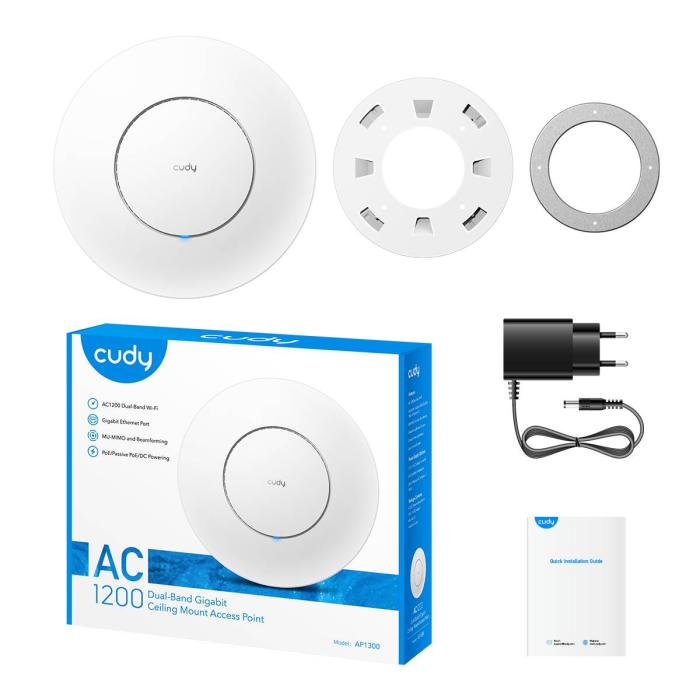

Packaging content
- Quantity per pack: 1 pc(s)
- AC adapter included: Yes

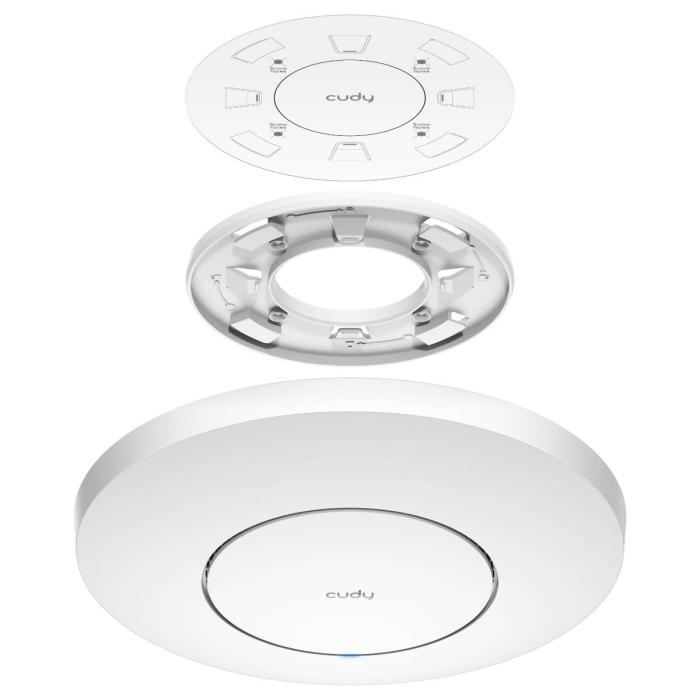

- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
Sustainability
- Sustainability compliance: Yes
