Description

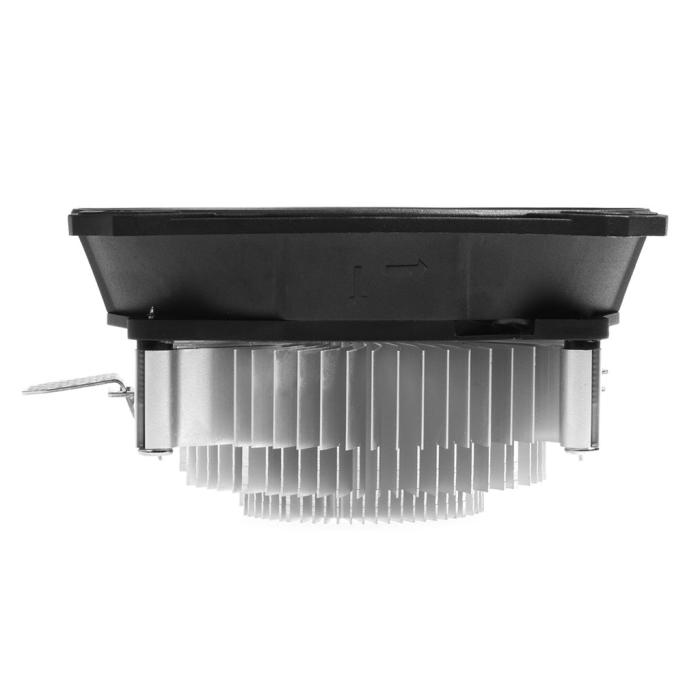

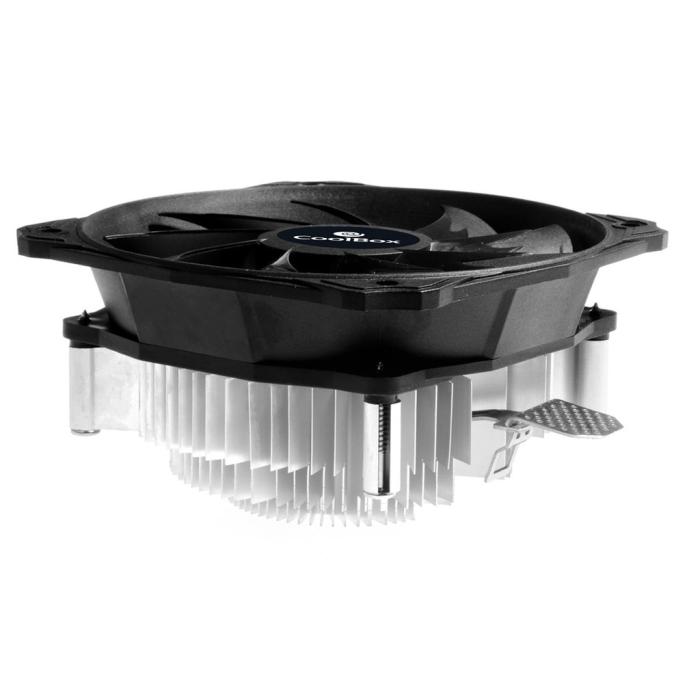

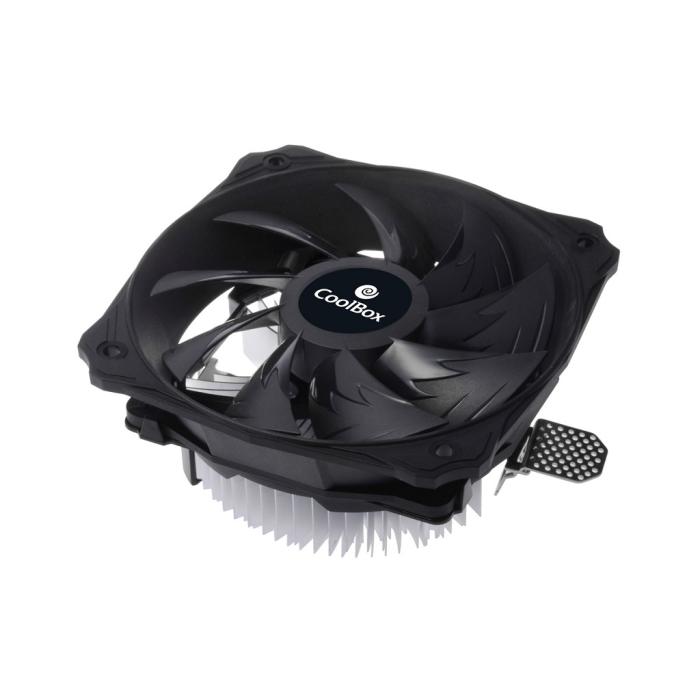

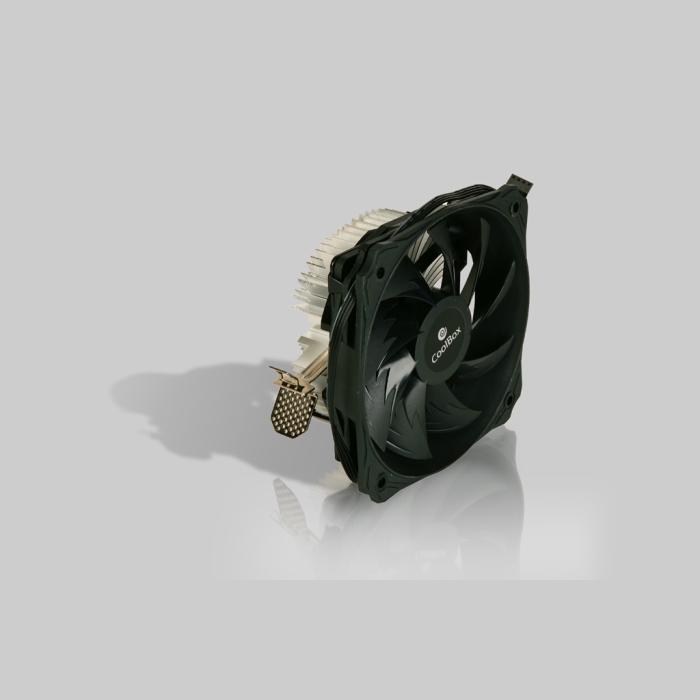

The CoolBox Plannar 120 is a processor cooler with a 12 cm fan and a single fan. Its rotation speed ranges from 800 RPM to 1600 RPM, generating a maximum airflow of 56 cfm and a maximum pressure of 1.7 mmH2O. It operates at a noise level of 20.2 dB at high speed and 16 dB at low speed, with a thermal design power of 100 W, 12 V voltage and 0.15 A rated current. The heatsink is made of aluminium and the unit is black in colour, with dimensions of 120 x 63 x 120 mm and a weight of 250 g. It features a 4-pin fan connector and offers a service life of 30000 hours mean time between failures. It is compatible with the AM2, AM3, AM3+, FM1, FM2, FM2+ and LGA 1151 sockets.
Specifications
Performance
- Suitable location: Processor
- Type: Cooler
- Fan diameter: 12 cm
- Supported processor sockets: Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+, LGA 1151 (Socket H4)
- Rotational speed (min): 800 RPM
- Rotational speed (max): 1600 RPM
- Noise level (low speed): 16 dB
- Noise level (high speed): 20.2 dB
- Maximum airflow: 56 cfm
- Maximum air pressure: 1.7 mmH2O
- Mean time between failures (MTBF): 30000 h
Design
- Product colour: Black
- Material: Aluminium
- Number of fans: 1 fan(s)
- Fan connector: 4-pin
Power
- Power consumption (typical): 1.8 W
- Voltage: 12 V
- Rated current: 0.15 A
- Thermal Design Power (TDP): 100 W
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 63 mm
- Weight: 250 g
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Fan thickness: 2.5 cm
Technical details
- Bearing technology: Hydraulic
