Cisco Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E)

Return

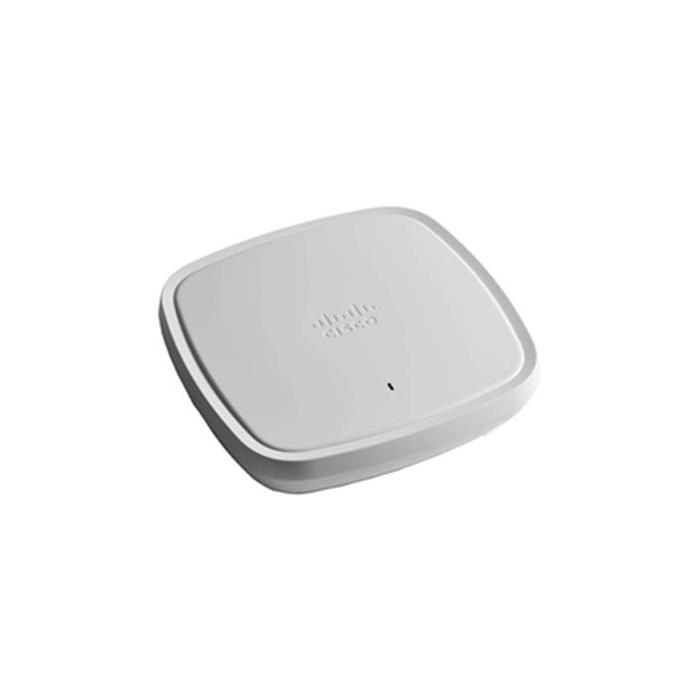

Product 1 image

Cisco Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E)

Not avaliable

Amount

Brand: CISCO

SKU: 88140 PRC: 322121 EAN: 889728227223 PN: c9120axe-e

Description

Specifications

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 5000 Mbit/s
Maximum data transfer rate (2.4 GHz): 2500 Mbit/s
Maximum data transfer rate (5 GHz): 5000 Mbit/s
Ethernet LAN data rates: 100, 1000, 2500, 5000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IE
Channels quantity: 29 channels
Bluetooth: Yes
Bluetooth version: 5.0
MIMO: Yes
MIMO type: Multi User MIMO

Security

Security algorithms: AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3

Management features

Syslog: Yes
Firmware upgradeable: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Internal RJ-45 ports quantity: 1
USB 2.0 ports quantity: 1
WAN connection: Ethernet (RJ-45), Mobile network (SIM), Wi-Fi

Power

Power over Ethernet (PoE): Yes
Power plug type: Type C

Design

Placement: Ceiling, Floor, Table
Product colour: White
On/off switch: Yes

Antenna

Antenna type: Internal & external
Antenna direction type: Omni-directional
Antenna features: Detachable antenna
Antennas quantity: 4
Antenna gain level (max): 6 dBi
Antenna connector type: RP-TNC
Number of connectors: 2

Performance

Flash memory: 1024 MB
Internal memory: 2048 MB

Technical details

Products per shipping (inner) case: 1 pc(s)

Weight & dimensions

Width: 216 mm
Depth: 216 mm
Height: 51 mm
Weight: 1.36 kg

Packaging data

CD manual: Yes
Package width: 244.6 mm
Package depth: 263.7 mm
Package height: 90.4 mm
Package weight: 671.2 g

Packaging content

Quantity per pack: 1 pc(s)
AC adapter included: Yes
PoE adapter included: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -39 - 70 °C
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4572 m

Logistics data

Harmonized System (HS) code: 85176990
Country of origin: Mexico
Products per master (outer) case: 1 pc(s)
