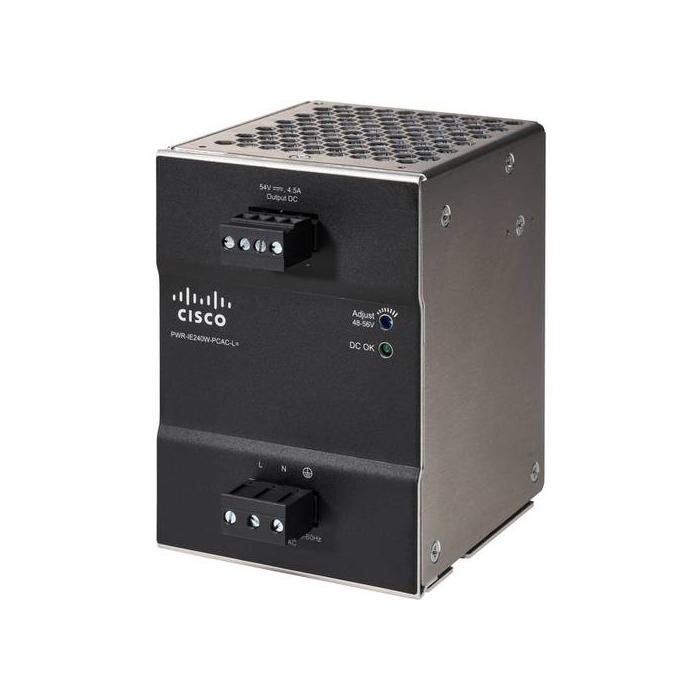

Cisco 240W AC P/S LITE network switch component Power supply

Name: Cisco 240W AC P/S LITE network switch component Power supply
Brand: CISCO
SKU: 353485
Price: 1401.4 EUR
Availability: InStock

More info

Brand: CISCO

1,401.40 €

1,158.18 € without VAT

Stock available: 1 ud.

Get it tomorrow / September 2

SKU: 91375 PRC: 353485 EAN: 889728211512 PN: PWR-IE240W-PCAC-L=

Description

240 W black power supply system from Cisco, designed as an internal component for network switches with a mean time between failures of 1,058,750 hours. This module provides a 54 V DC output voltage, with AC input ranging from 90 to 264 V at 50/60 Hz, an inrush current of 35 A and a maximum current of 3.5 A. It operates within a wide temperature range, from -40 to 80 °C during operation, and supports relative humidity from 5 to 95 %, in addition to featuring IP20 protection according to its certification. With dimensions of 124.1 mm in height, 85 mm in width and 121 mm in depth, and a weight of 960 g, it integrates internally to ensure a stable power supply in network equipment.

Specifications

Features

Product type: Power supply
Product colour: Black
Internal: Yes
Mean time between failures (MTBF): 1058750 h

Power

Total power: 240 W
AC input voltage: 90 - 264 V
AC input frequency: 50 / 60 Hz
Maximum current: 3.5 A
Inrush current: 35 A
DC output voltage: 54 V

Certificates

Safety: IP20
Certification: SIQ Bauart to EN 60950-1 UL/cUL UL 60950-1 / CSA C22.2 No. 60950-1 UL/cUL UL 62368-1 / CSA C22.2 No. 62368-1 CB IEC 60950-1 U
