Description

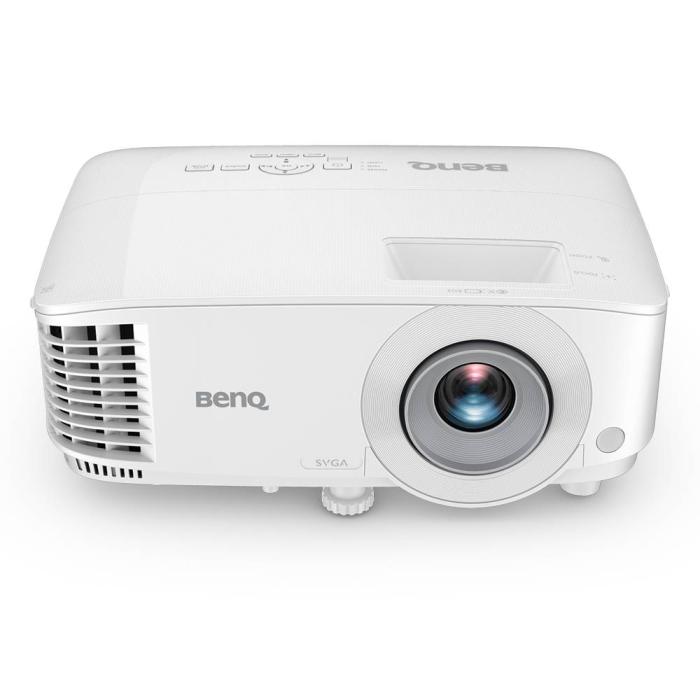

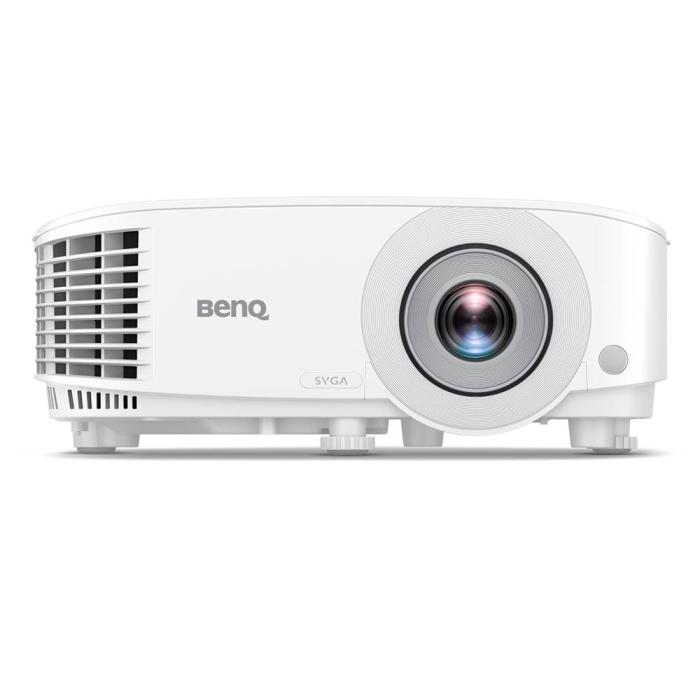

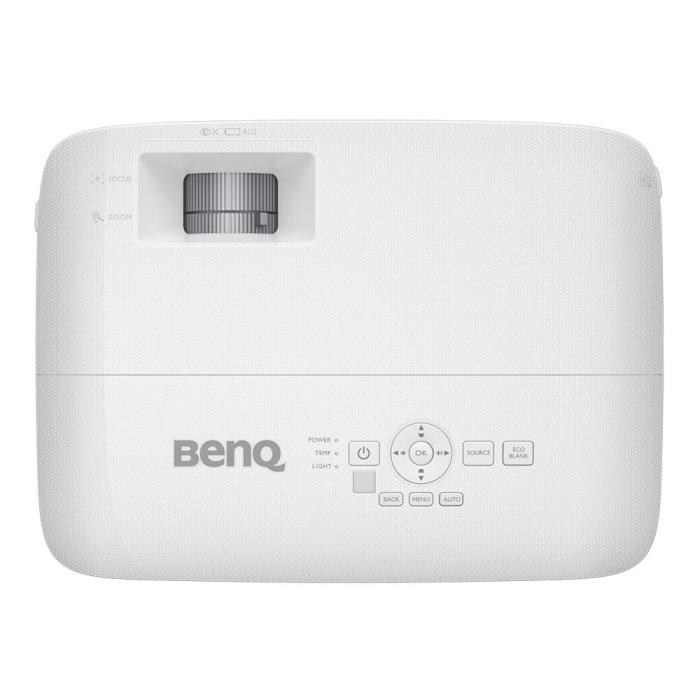

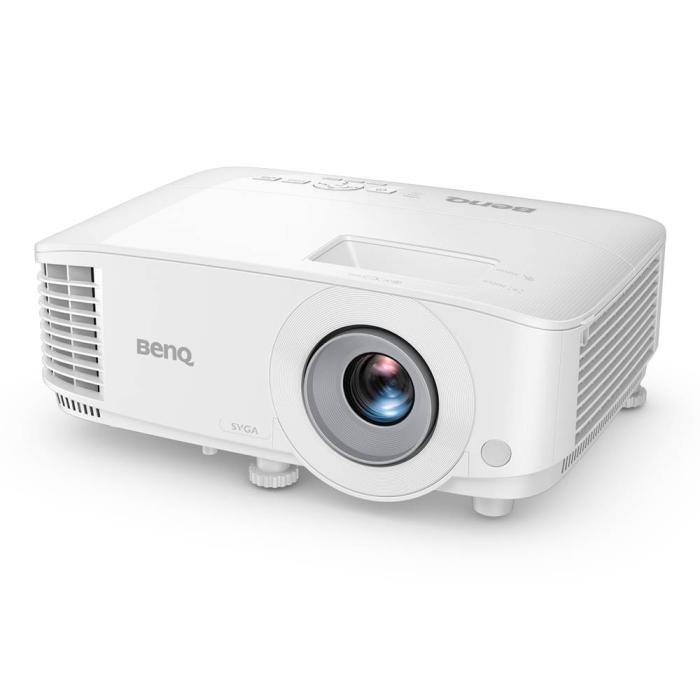

The BenQ MS560 projector is a standard throw device with DLP projection technology, native SVGA (800x600) resolution and a native 4:3 aspect ratio, in white. It offers a brightness of 4000 ANSI lumens and a typical contrast ratio of 20000:1, with the ability to reproduce 1.073 billion colours. Its light source is lamp type, with a life of 6000 hours that extends to 10000 hours in economic mode. The lens system features a throw ratio of 1.96 to 2.15, a 110% offset and a 1.1:1 zoom, allowing the image to be adjusted to screen sizes from 1524 to 3810 mm. It incorporates vertical keystone correction from -40 to 40 degrees, with vertical scan rates of 23 to 120 Hz and horizontal of 15 to 102 kHz. It is compatible with NTSC, PAL and SECAM analogue signals. Its dimensions are 296 x 120 x 221 mm and it weighs 2.3 kg.
Specifications
Projector
- Supported aspect ratios: 4:3
- Screen size compatibility: 1524 - 3810 mm (60 - 150")
- Projector brightness: 4000 ANSI lumens
- Projection technology: DLP
- Projector native resolution: SVGA (800x600)
- Contrast ratio (typical): 20000:1
- Native aspect ratio: 4:3
- Number of colours: 1.073 billion colours
- Horizontal scan range: 15 - 102 kHz
- Vertical scan range: 23 - 120 Hz
- Keystone correction, vertical: -40 - 40°
Light source
- Light source type: Lamp
- Service life of light source: 6000 h
- Service life of light source (economic mode): 10000 h
Lens system
- Zoom ratio: 1.1:1
- Throw ratio: 1.96 - 2.15
- Offset: 110%
Video
- Analog signal format system: NTSC, PAL, SECAM
- Full HD: Yes
- Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA)
- Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Ports & interfaces
- HDMI connector type: Full-size
- S-Video inputs quantity: 1
- USB 2.0 ports quantity: 1
- Mini-USB 2.0 ports quantity: 1
- Serial interface type: RS-232
- PC Audio in: Yes
- PC Audio out: Yes
- PC in (D-Sub): Yes
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 2
- Composite video in: 1
- DVI port: No
Network
- Smart TV: No
- Ethernet LAN: No
- Wi-Fi: No
Storage
- Card reader integrated: No
Features
- Noise level (economic mode): 29 dB
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Farsi, Fin
- Number of OSD languages: 30
- Noise level: 34 dB
- Air filter: Yes
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 10 W
- Number of built-in speakers: 1
Design
- Market positioning: Business
- Product type: Standard throw projector
- Product colour: White
- Placement: Ceiling
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Display
- Built-in display: No
Power
- Power source: AC
- Power consumption (typical): 260 W
- Power consumption (standby): 0.5 W
- Power consumption (max): 280 W
- Power consumption (economy mode): 215 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 296 mm
- Depth: 221 mm
- Height: 120 mm
- Weight: 2.3 kg
Packaging content
- Remote control included: Yes
- Remote control type: IR
- Batteries included: Yes
- Cables included: AC, VGA
Logistics data
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85286200
