Description

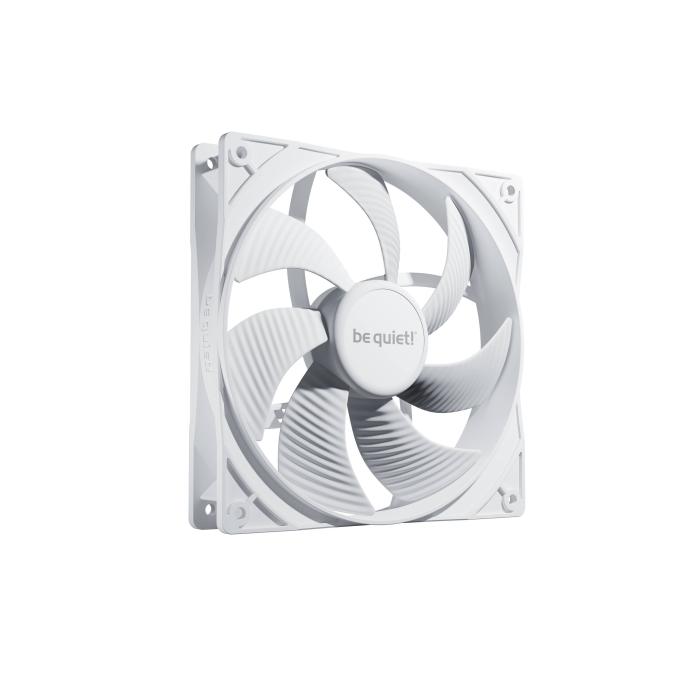

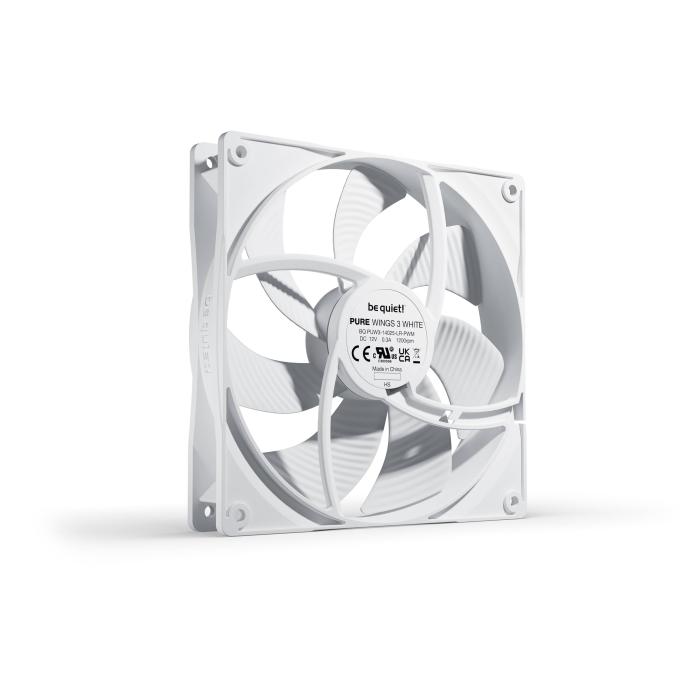

The be quiet! Pure Wings 3 14 cm fan, in white and with dimensions of 140 x 25 x 140 mm, is designed to be mounted in the computer case. Its rifle bearing and maximum speed of 1200 RPM allow it to move an airflow of 97.5 m³/h, equivalent to 57.4 cfm, with a maximum pressure of 0.96 mmH2O. It maintains a noise level of 21.9 dB at high speed and its mean time to failure reaches 80000 h. Compatibility with pulse width modulation (PWM) allows the revolutions to be regulated according to the load, and the unit is powered at 12 V with a consumption of 3.6 W. The 4-pin connector and the 0.46 m cable make installation easy, while its weight of 180 g barely adds any load to the chassis.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 14 cm
- Rotational speed (max): 1200 RPM
- Noise level (high speed): 21.9 dB
- Maximum airflow: 57.4 cfm
- Airflow: 97.5 m³/h
- Maximum air pressure: 0.96 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Rifle bearing
- Quantity per pack: 1 pc(s)
- Fan's mean time to failure (MTTF): 80000 h
Design
- Product colour: White
- Fan connector: 4-pin
Power
- Voltage: 5 - 13.2 V
- Rated voltage: 12 V
- Fan power consumption: 3.6 W
- Rated current: 0.06 A
Weight & dimensions
- Width: 140 mm
- Depth: 140 mm
- Height: 25 mm
- Weight: 180 g
- Cable length: 0.46 m
- Package width: 142 mm
- Package depth: 147 mm
- Package height: 27 mm
- Package weight: 210 g
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: CE, RoHS, Triman, UKCA, WEEE
- Warranty period: 3 year(s)

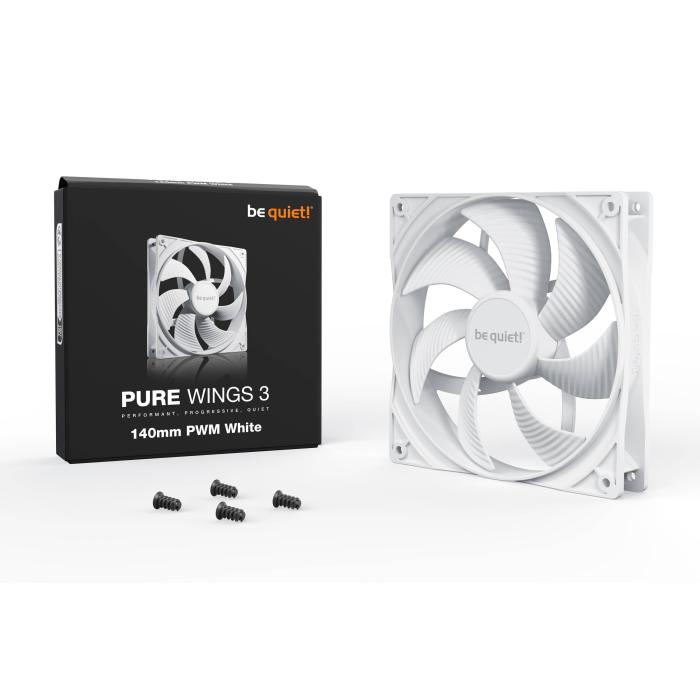

Packaging content
- Screws included: Yes
- Number of screws: 4
Logistics data
- Products per shipping (inner) case: 72 pc(s)
- Shipping (inner) case width: 37.3 cm
- Shipping (inner) case length: 46.4 cm
- Shipping (inner) case height: 32.3 cm
- Shipping (inner) case gross weight: 14.9 kg
