Description

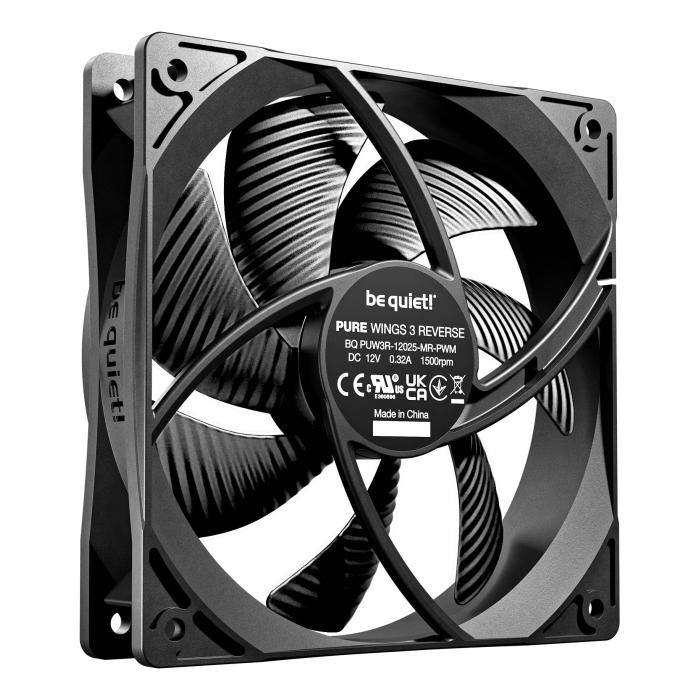

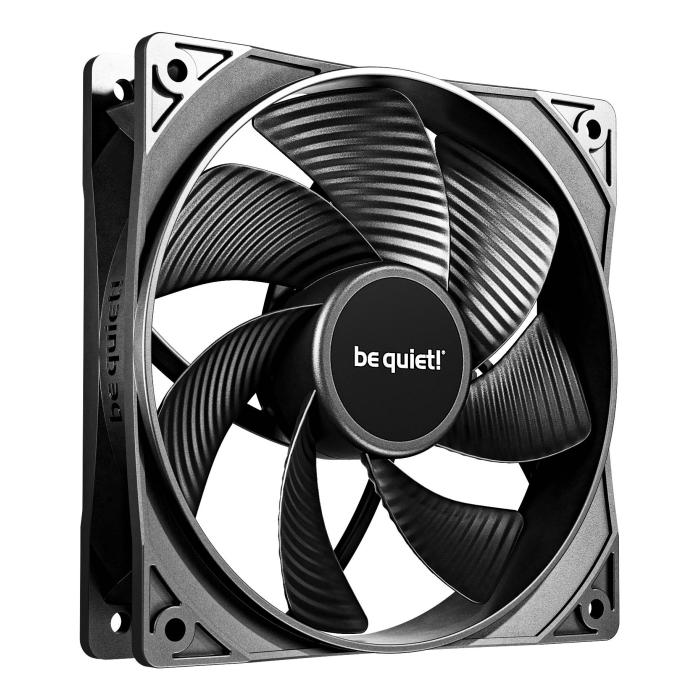

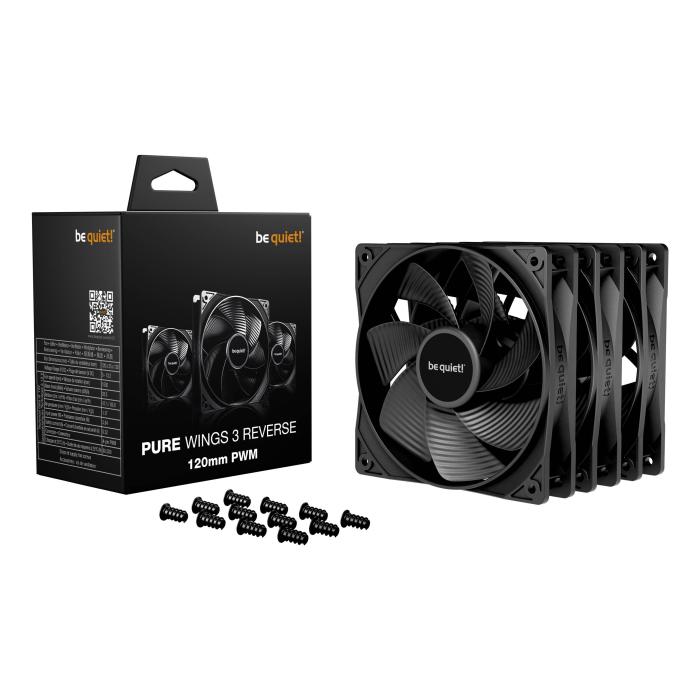

be quiet! Pure Wings 3 12 cm case fan, 1500 RPM, in a three-pack format. It operates with pulse width modulation (PWM) via a 4-pin connector and delivers an airflow of 80 m³/h, equivalent to 47.1 cfm, with a maximum pressure of 1.17 mmH2O. Its noise level at high speed is 28.5 dB and the bearing is a rifle bearing, with a mean time to failure of 80000 h. The dimensions of each fan are 120 x 120 x 25 mm and the cable measures 0.5 m. It operates at a nominal voltage of 12 V, with a range of 5 to 13.2 V, a power consumption of 3.84 W and a nominal current of 0.32 A. The colour is black and each unit weighs 142 g.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Rotational speed (max): 1500 RPM
- Noise level (high speed): 28.5 dB
- Maximum airflow: 47.1 cfm
- Airflow: 80 m³/h
- Maximum air pressure: 1.17 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Rifle bearing
- Quantity per pack: 3 pc(s)
- Fan's mean time to failure (MTTF): 80000 h
Design
- Product colour: Black
- Number of fans: 1 fan(s)
- Illumination LED: No
- Fan connector: 4-pin
- Display type: Not applicable
- Certification: RU
Power
- Voltage: 5 - 13.2 V
- Rated voltage: 12 V
- Fan power consumption: 3.84 W
- Rated current: 0.32 A
- Fan current: 0.07 A
Weight & dimensions
- Height: 120 mm
- Fan dimensions (W x D x H): 120 x 120 x 25 mm
- Fan weight: 142 g
- Cable length: 0.5 m
- Package width: 80 mm
- Package depth: 132 mm
- Package height: 122 mm
- Package weight: 506 g
Technical details
- Sustainability certificates: Triman
- Warranty period: 3 year(s)
- Compliance certificates: CE, RoHS, UKCA, WEEE
Packaging content
- Screws included: Yes
Logistics data
- Products per shipping (inner) case: 20 pc(s)
- Shipping (inner) case width: 26.4 cm
- Shipping (inner) case length: 42.3 cm
- Shipping (inner) case height: 30.4 cm
- Shipping (inner) case gross weight: 10.6 kg
