Description

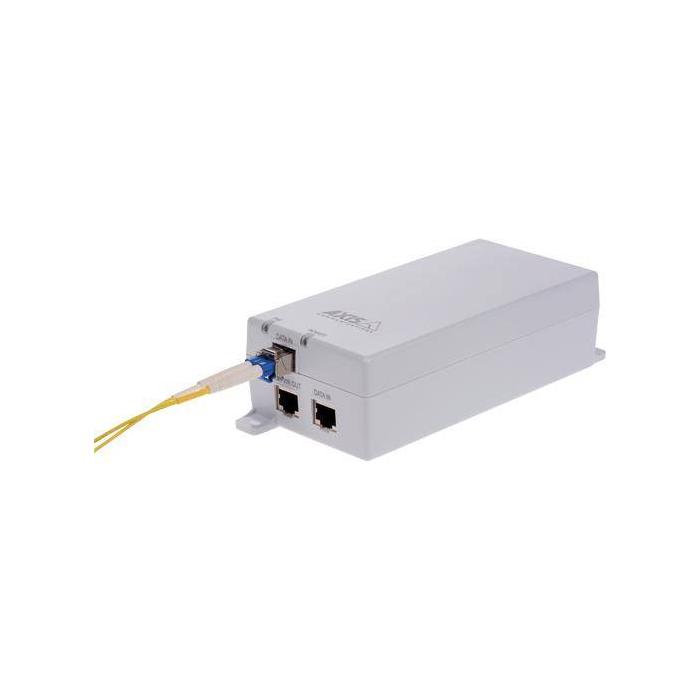

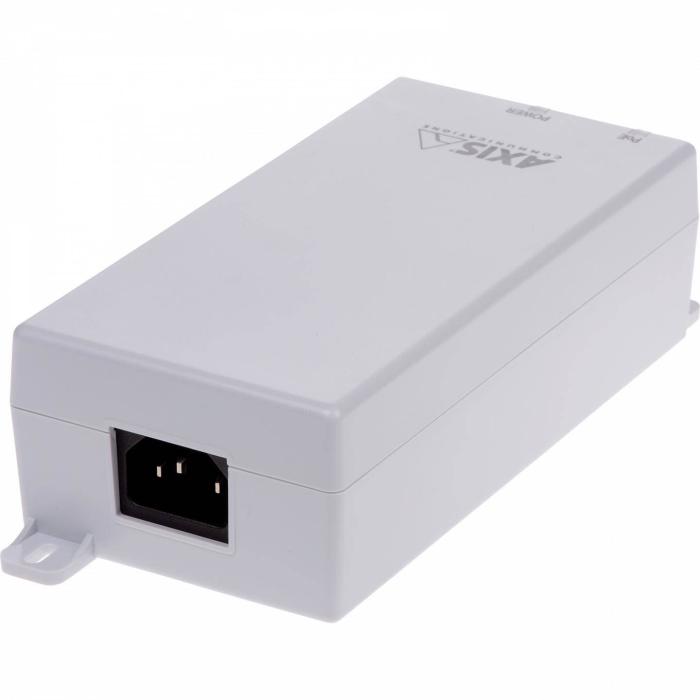

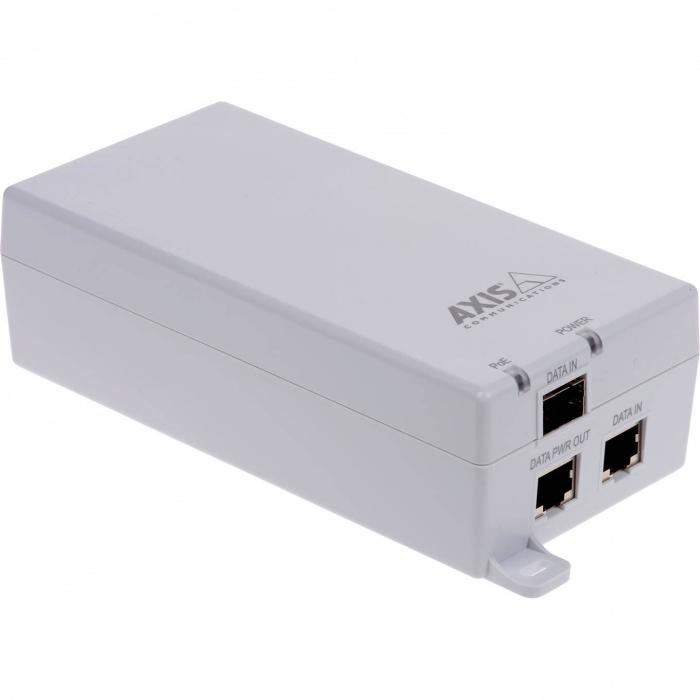

The Axis T8154 Midspan, in white and with reference T8154, incorporates alternating current power with a nominal rating of 60 W and an output voltage of 55 V, along with LED indicators to monitor connection status. Compatible with the Axis brand, this security camera accessory offers Ethernet transfer speeds of 10, 100, and 1000 Mbit/s, and conforms to the IEEE 802.3bt network standard to supply power efficiently. Weighing 517 g and measuring 80 mm in width, 184 mm in depth, and 50 mm in height, it supports an operating temperature range of -50 to 50 °C. It includes a quick installation guide and comes in a single-piece package, ideal for integrating into surveillance infrastructures.
Specifications
Features
- Type: Midspan
- Brand compatibility: Axis
- Compatibility: M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III,
- Product colour: White
- Networking standards: IEEE 802.3bt
- LED indicators: Yes
- Certification: IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 550
Ports & interfaces
- Ethernet LAN data rates: 10, 1000, 100 Mbit/s
Power
- Rated power: 60 W
- Input voltage: 100-240 V
- Input frequency: 50/60 Hz
- Output voltage: 55 V
- Power source type: AC
Weight & dimensions
- Width: 80 mm
- Depth: 184 mm
- Height: 50 mm
- Weight: 517 g
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Quick installation guide: Yes
Operational conditions
- Operating temperature (T-T): -50 - 50 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage temperature (T-T): -20 - 70 °C
- Storage relative humidity (H-H): 0 - 95%
Technical details
- Doesn't contain: PVC
