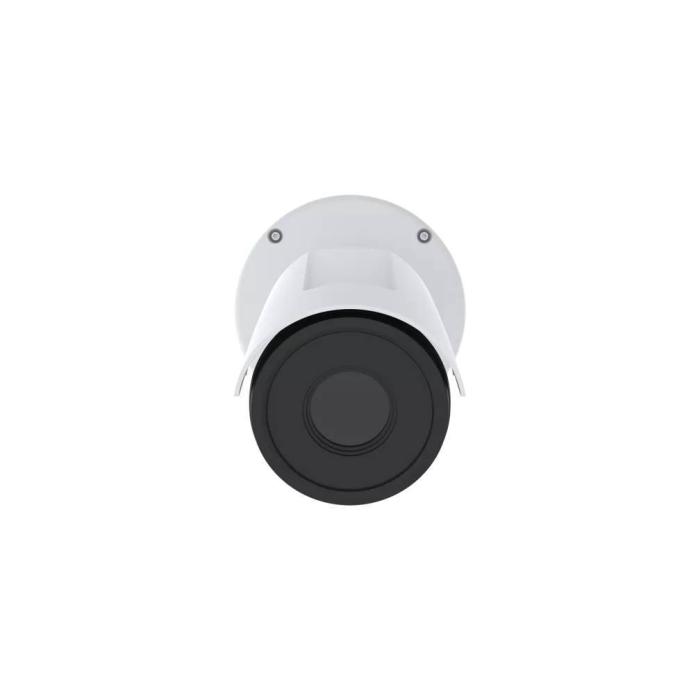

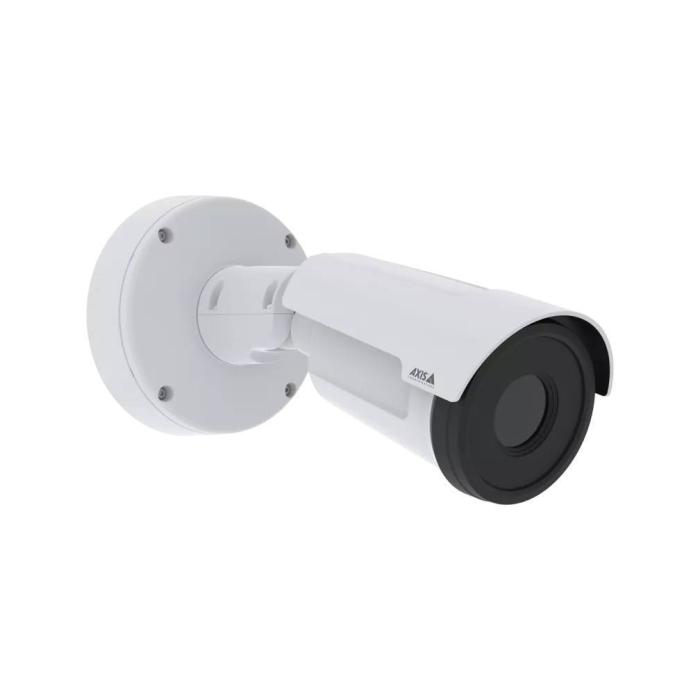

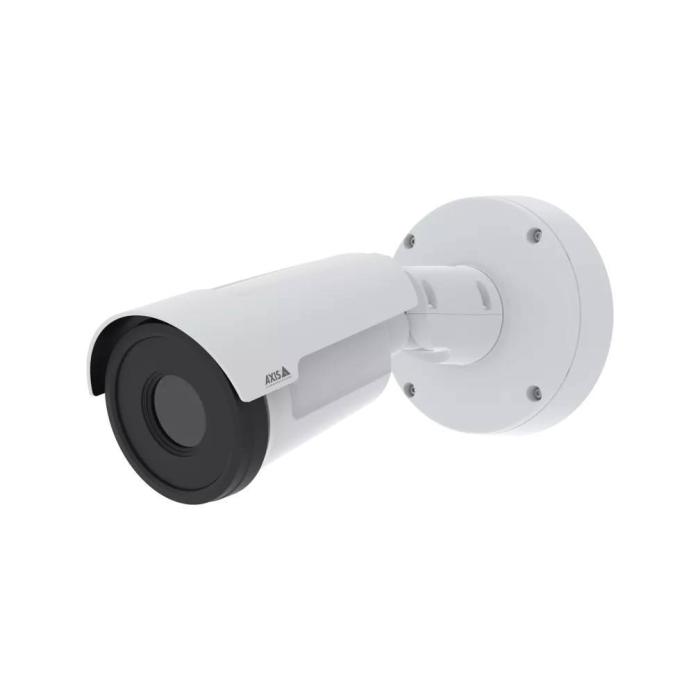

Axis Q1971-E Bullet IP security camera Indoor & outdoor 768 x 576 pixels Wall

Not avaliable

More info

Brand: AXIS
SKU: 108977 PRC: 577293 EAN: 7331021086692 PN: 02949-001

Description

Specifications

Performance

  • Type: IP security camera
  • Placement supported: Indoor & outdoor
  • Connectivity technology: Wired
  • Thermal module: Yes

Design

  • Form factor: Bullet
  • Mounting type: Wall
  • Product colour: Black, White
  • Housing material: Aluminium, Polycarbonate (PC)
  • International Protection (IP) code: IP66, IP67
  • IK code: IK10

Camera

  • Lens viewing angle, horizontal: 19°
  • Lens viewing angle, vertical: 15°
  • Camera pixel size: 17 µm

Image sensor

  • Number of sensors: 1
  • Effective sensor resolution (thermal module): 384 x 288 pixels
  • Sensor type: Microbolometer

Lens system

  • Number of lenses: 1
  • Lens diameter: 1.9 cm
  • Maximum aperture number: 1.24
  • Closest focusing distance: 8.3 m

Video

  • Maximum resolution: 768 x 576 pixels
  • Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG
  • Frame rate: 30 fps
  • Video streaming: Yes
  • Gain control type: Auto
  • Image quality adjustment: Brightness, Contrast, Sharpness
  • Flip & mirror: Yes
  • Text caption overlay: Yes
  • Image stabilizer: Yes
  • Bit rate control: Variable Bit Rate (VBR)

Audio

  • Audio system: 2-way
  • Audio system full duplex: Yes
  • Audio formats supported: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
  • Audio detection: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Fast Ethernet, Gigabit Ethernet
  • Networking standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
  • Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNM
  • Streaming method: Multicast

Storage

  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
  • Flash memory: 8192 MB
  • RAM capacity: 2048 MB

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1
  • Microphone in: Yes
  • Terminal block port: Yes
  • DC-in jack: Yes

Security

  • Password protection: Yes
  • Video motion detection: Yes
  • Active tampering alarm: Yes
  • Security algorithms: EAP-TLS, HTTPS, MSCHAPv2
  • Alert notification type: E-mail
  • Privacy protection: Yes
  • Pixel counter: Yes
  • Digest authentication: Yes

Management features

  • Cloud-managed: Yes

Power

  • Power source type: DC, PoE
  • Power consumption (typical): 3.6 W
  • Power consumption (max): 12.95 W
  • Power consumption (Power over Ethernet (PoE)): 12.95 W

Operational conditions

  • Operating temperature (T-T): -40 - 60 °C
  • Storage temperature (T-T): -40 - 65 °C
  • Operating relative humidity (H-H): 10 - 100%
  • Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 132 mm
  • Depth: 272 mm
  • Height: 132 mm
  • Weight: 1.4 kg

Packaging content

  • Number of cameras: 1

Other features

  • Doesn't contain: CFR, Halogen, PVC/BFR
