Description

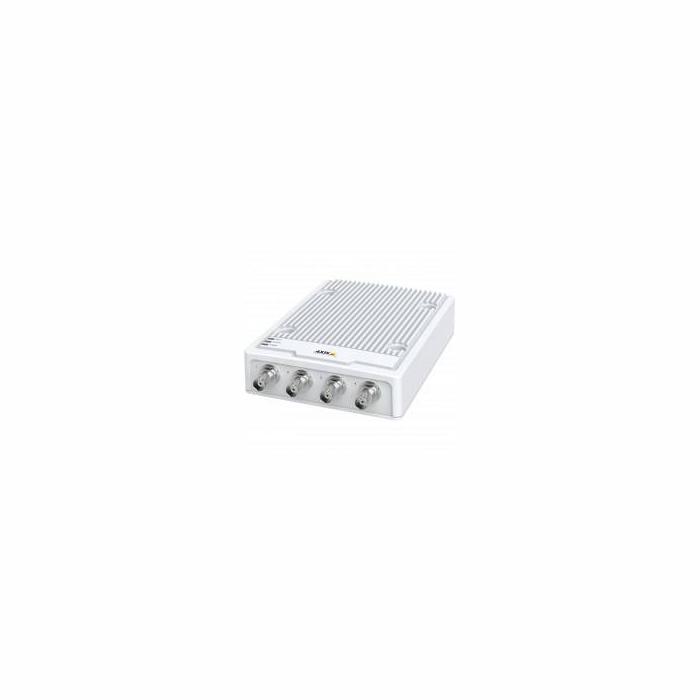

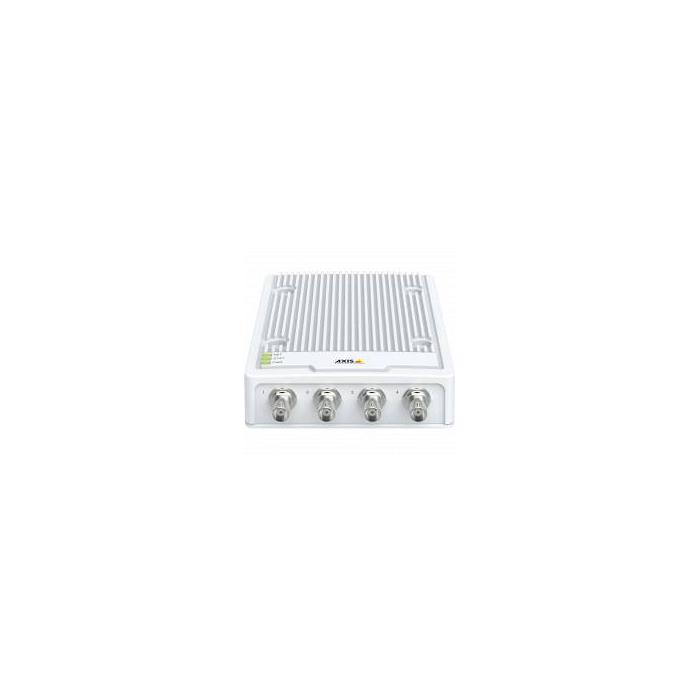

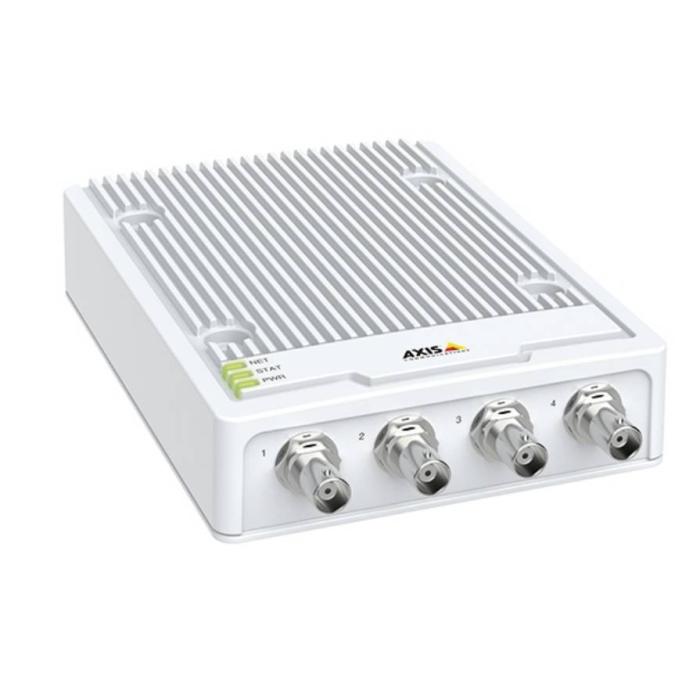

The Axis 01679-001 is a video server and encoder from the AXIS series, designed to manage up to 4 channels with a maximum resolution of 720 x 576 pixels in PAL format and 30 fps. Compatible with NTSC resolutions of 720x480 pixels, this unit supports H.264, H.265, HEVC and MPEG4 compression, and also includes PTZ control and image adjustments such as brightness, contrast, sharpness, rotation, mirroring or privacy mask. It integrates a card reader for MicroSD, MicroSDHC and MicroSDXC memory, with 512 MB of flash and 1024 MB of internal memory, and is powered via PoE in accordance with IEEE 802.3af and 802.3at standards. Its white design with an LED status indicator allows wall mounting, and copper connectivity covers 10BASE-T, 100BASE-T and 1000BASE-T.
Specifications
Video
- Maximum video resolution: 720 x 576 pixels
- Maximum frame rate: 30 fps
- Video compression formats: AVC, H.264, H.265, HEVC, MPEG4
- NTSC resolutions: 720x480 pixels
- PAL resolutions: 720x576 pixels
- Channels quantity: 4 channels
Performance
- Internal memory: 1024 MB
- Flash memory: 512 MB
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- PTZ control: Yes
- Image settings: Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
Design
- Product colour: White
- LED indicators: Status
- Wall mountable: Yes
- Certification: 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A
Network
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II)
- Quality of Service (QoS) support: Yes
- Power over Ethernet (PoE): Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Networking standards: IEEE 802.3af, IEEE 802.3at
Security
- Security algorithms: HTTPS
- Video motion detection: Yes
- IP address filtering: Yes
- Active tampering alarm: Yes

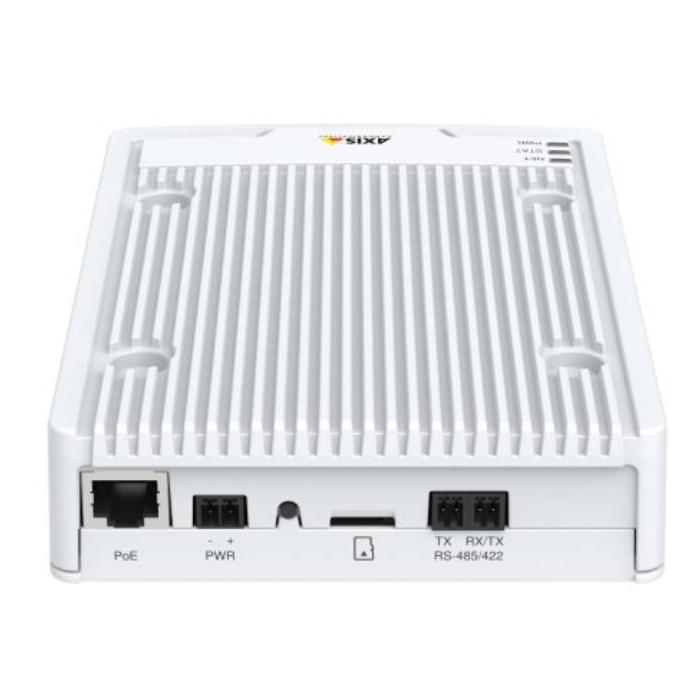

Ports & interfaces
- BNC input ports: 4
- Ethernet LAN (RJ-45) ports: 1
- RS-485 ports: 2
Power
- Power consumption (typical): 4.7 W
Weight & dimensions
- Width: 187 mm
- Height: 37 mm
- Weight: 650 g
Packaging content
- Manual: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
