Description

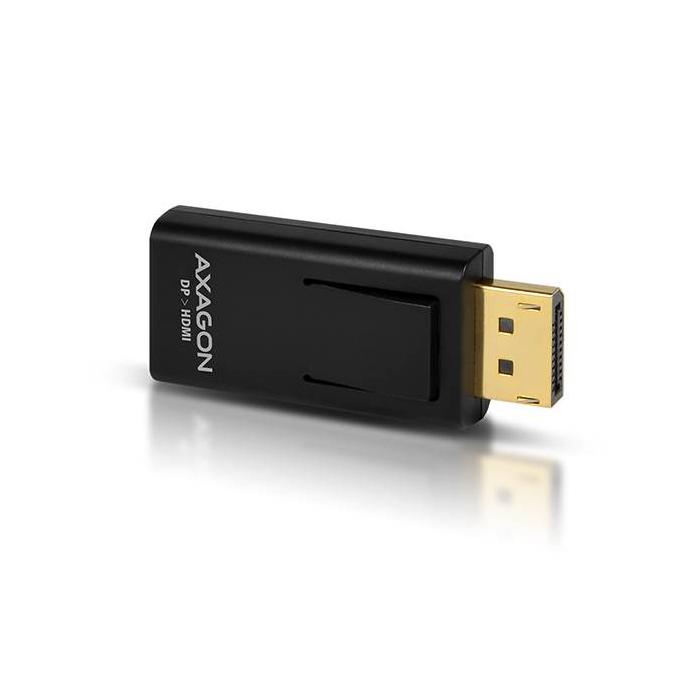

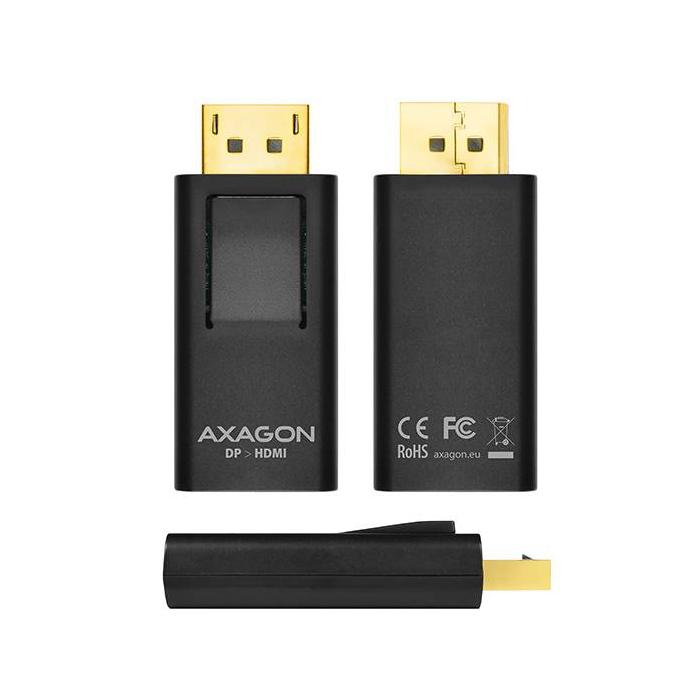

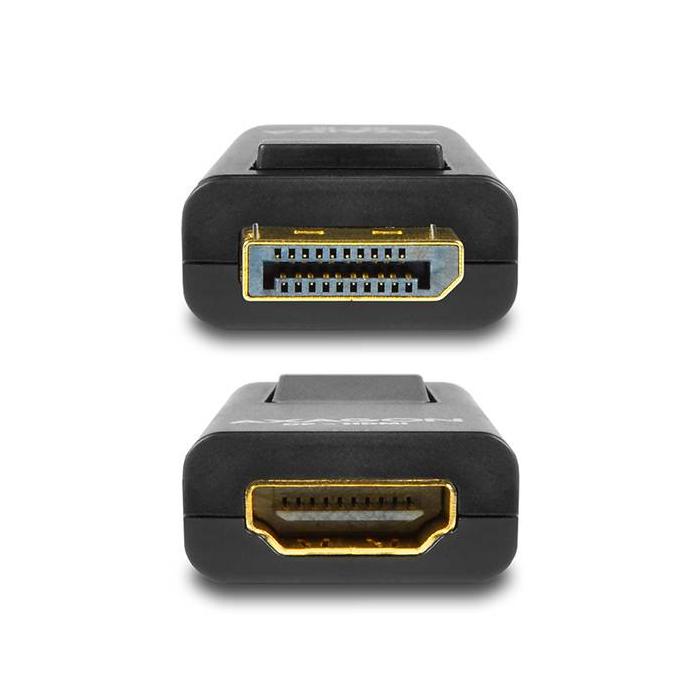

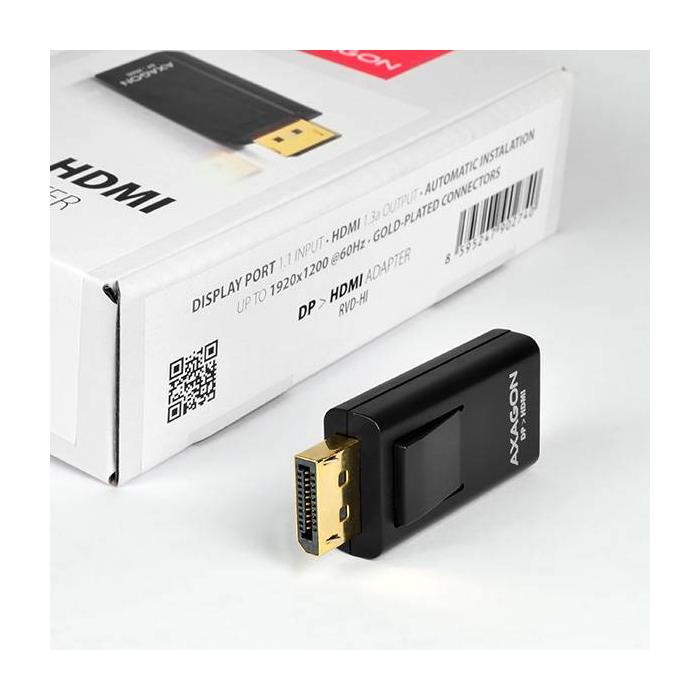

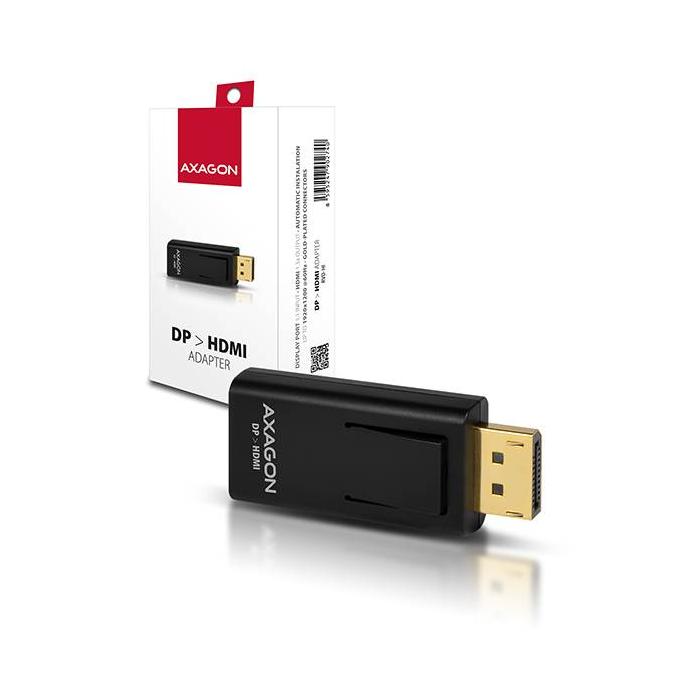

The Axagon RVD-HI adapter, in black, converts DisplayPort video signal to HDMI using an NXP PTN3361BBS integrated circuit. It supports a maximum resolution of 1920 x 1200 pixels with a refresh rate of 60 Hz, and is compatible with 720p and 1080p video formats. This active converter, with male DisplayPort and right-angle HDMI connectors with gold-plated contacts, works with Windows, macOS and Linux systems without the need for drivers thanks to its Plug and Play function. Made in China, it is designed to connect devices with DisplayPort output to screens or projectors with HDMI input.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Connector 1: DisplayPort
- Connector 2: HDMI
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDMI version: 1.3a
- DisplayPort version: 1.1
- Maximum resolution: 1920 x 1200 pixels
- Supported graphics resolutions: 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 768 (WXGA), 1280 x 800 WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366
- Supported video modes: 720p, 1080p
- Refresh rate at maximum resolution: 60 Hz
- Product colour: Black
- Chipset: NXP PTN3361BBS
- Plug and Play: Yes
- Converter type: Active video converter
- Country of origin: China
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 85 °C
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Sustainability
- Sustainability certificates: RoHS
Weight & dimensions
- Weight: 12 g
- Width: 56 mm
- Depth: 24 mm
- Height: 12 mm
Packaging data
- Package width: 140 mm
- Package depth: 88 mm
- Package height: 36 mm
- Package weight: 51 g
- Package type: Hanging box
Packaging content
- Quantity per pack: 1 pc(s)
- Manual: Yes
