Description

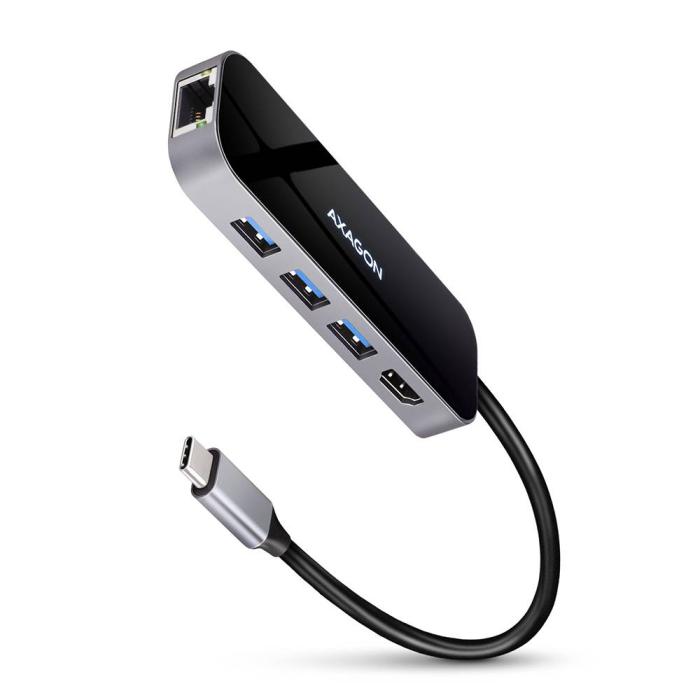

Axagon HMC-6GL, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4/2.3, 10,100,1000 Mbit/s, IEEE 802.1Q, IEEE 802.1p
Specifications

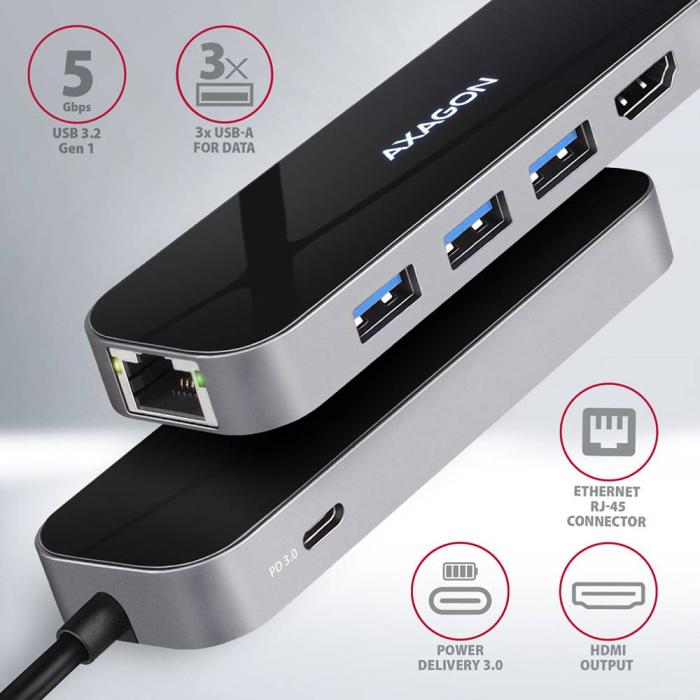

Ports & interfaces
- Connectivity technology: Wired

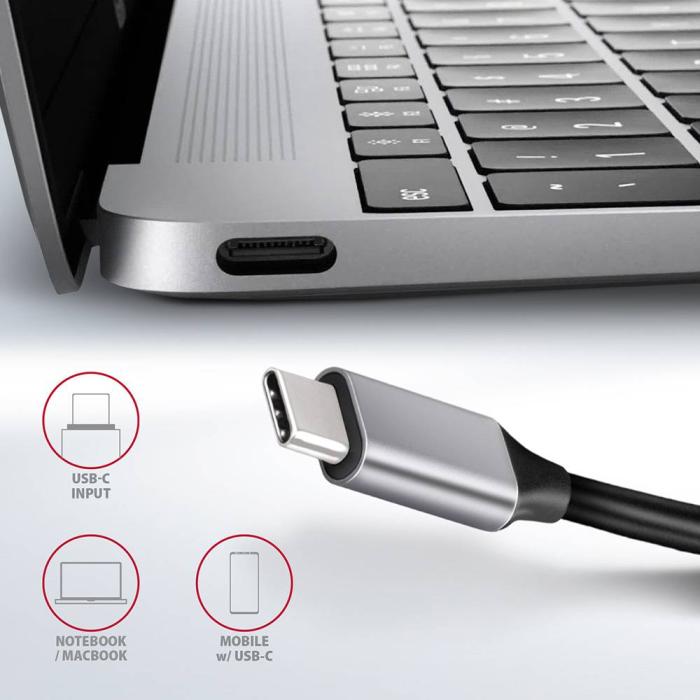

- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 2.3
- Microphone in: No
- Combo headphone/mic port: No
- HDCP: Yes
- HDCP version: 1.4/2.3
- USB Type-C DisplayPort Alternate Mode: Yes
Network

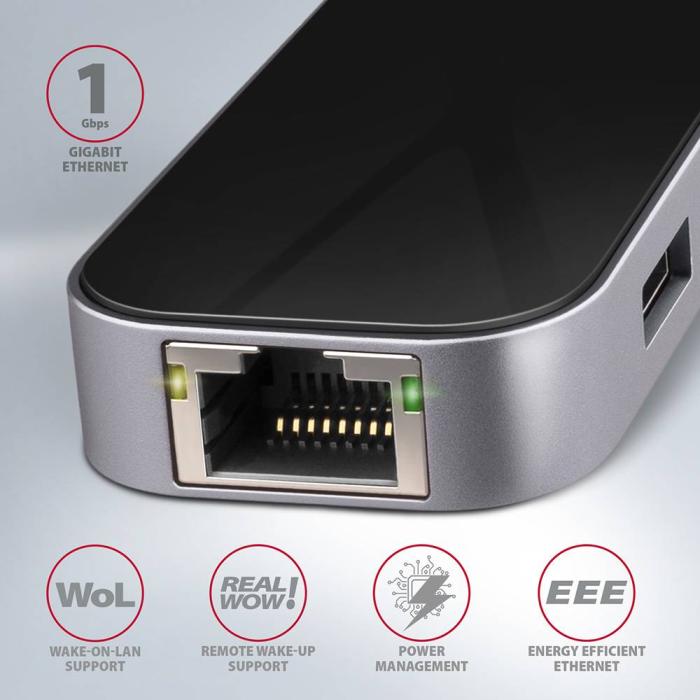

- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Wake-on-LAN ready: Yes
- Networking standards: IEEE 802.1Q, IEEE 802.1p
- Full duplex: Yes
Performance
- Card reader integrated: No
- HD type: 4K Ultra HD
- Maximum digital resolution: 4096 x 2160 pixels
- Maximum refresh rate: 120 Hz
- Hot-Plug support: Yes
- Product colour: Black, Grey
- Hub interfaces: HDMI, RJ-45, USB 3.1 (3.1 Gen 1) Type-A, USB 3.1 (3.1 Gen 1) Type-C
- LED indicators: Yes
- Plug and Play: Yes
- Charging function: Yes

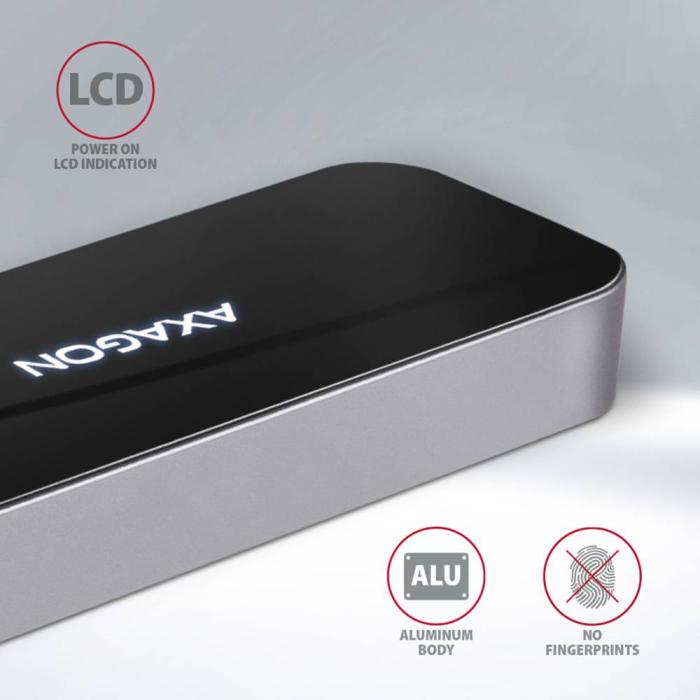

- Housing material: Aluminium
- Country of origin: China
- Brand compatibility: Universal
- Certification: CE
Audio
- Built-in speaker(s): No
- Built-in microphone: No
Cooling
- Built-in fan: No
Power
- Power source type: USB
- Power connector: USB Type-C
- Output current: 5 A
- USB cable length: 0.2 m
Software
- Windows operating systems supported: Windows 10, Windows 11, Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Server operating systems supported: Yes
- Mobile operating systems supported: Yes
- Other operating systems supported: Android, ChromeOS
Weight & dimensions
- Width: 110 mm
- Depth: 13 mm
- Height: 35 mm
- Weight: 60 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 100 mm
- Package depth: 28 mm
- Package height: 200 mm
- Package weight: 90 g

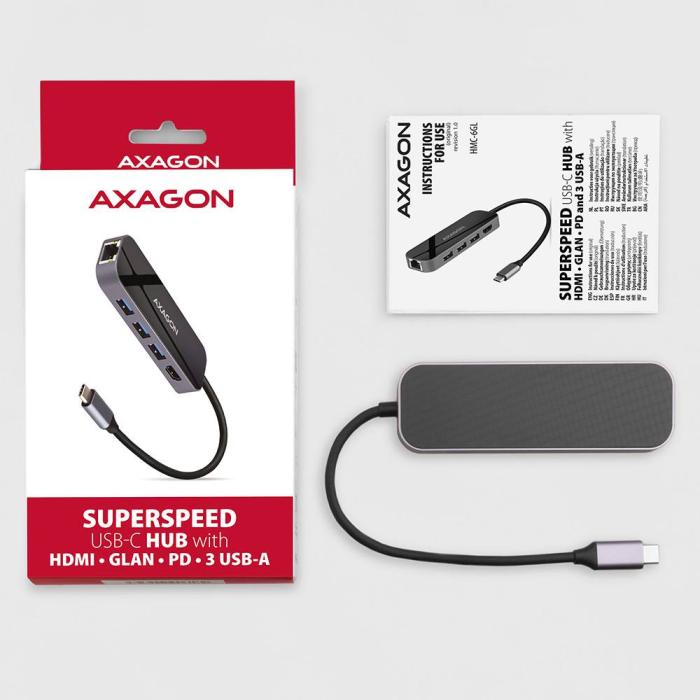

Packaging content
- Cables included: USB Type-C
- Manual: Yes
Technical details
- Compliance certificates: RoHS
